PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1200 × 600 × 1050 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

single workstation desktop static load capacity	100 kg
mobile pedestal drawer static load per drawer	25 kg
net weight per single workstation position	60 kg
upper partition light transmittance	40%
pedestal caster rolling durability	50000 cycles
desktop surface abrasion resistance	2000 cycles
maximum recommended user weight per seat	150 kg
modular reconfiguration repeatability	20 cycles
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

desktop work surface	25mm thick melamine-faced MFC board with PVC edge banding
partition upper screen	Frosted semi-translucent slatted panels in aluminum frame
partition lower modesty panel	Solid melamine-faced particle board with matte white finish
partition support frame	Anodized aluminum alloy extrusion with black trim edges
under-desk mobile pedestal	0.8mm thick cold-rolled steel body with powder-coated white finish
base support plinth	Galvanized steel leveling rail along floor line
cable grommet trim	ABS plastic curved edge trim around desktop cutout
pedestal casters	50mm diameter nylon swivel casters with brake
panel edge trim	2mm thick PVC edge banding on all board cut edges
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

modular linear connection system	Interlocking aluminum frame connectors support extending workstation banks in straight runs
integrated cable management cutout	Curved desktop grommet routes power and data cords from desk surface to under-desk raceways
lockable mobile under-desk pedestal	Three-drawer rolling unit with key lock fits fully under desktop for personal storage
half-height privacy divider design	Solid lower panel blocks seated sightlines, upper slatted screen preserves air and light flow
knock-down assembly structure	Pre-drilled panel and frame components allow on-site assembly without specialized tools
leveling floor base system	Adjustable glide feet on base plinth compensate for uneven commercial flooring
compatible accessory mounting	Frame accepts optional CPU holders, keyboard trays and under-desk wire trays
cable raceway integration	Hollow partition frame runs internal power and data cables between positions
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

single seat export carton dimensions	1100 x 700 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

call center open office floors	Linear banks maximize seating density while providing individual screen privacy
open-plan administrative office areas	Balances light flow and personal space for back-office staff
co-working space dedicated desks	Lockable storage and defined work zones suit long-term hot desk memberships
government and enterprise service halls	Durable commercial-grade surfaces withstand high daily public and staff use
small business team work areas	Modular extendable design supports adding seats as headcount grows
training and back-office processing centers	Cable-ready surfaces support computer and telephony equipment for shift workers

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011	Office worktables safety and strength requirements, applicable to desktop structure
EN 527-2:2002+A1:2019	Office worktables dimensional and mechanical safety requirements
EN 1023-2:2000	Office storage furniture strength and durability requirements for pedestal drawers
EN 13986:2004+A1:2015	Performance requirements for wood-based panels used in furniture construction

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021	Desk products safety and performance standard for office work surfaces
ANSI/BIFMA X5.6-2022	Panel systems performance standard for office cubicle partitions
ANSI/BIFMA X5.9-2019	Storage units performance standard for lockable mobile pedestals

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to desktops and panels
GB/T 3327-2017	Performance test methods for office desks, applicable to desktop static load and stability
GB 18580-2017	Formaldehyde emission limits for wood-based panels, required for indoor office use
GB/T 24821-2009	Performance requirements for office partition screens, applicable to divider panels

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden office furniture, applicable to desktops and panels；
2. GB/T 3327-2017：Performance test methods for office desks, applicable to desktop static load and stability；
3. GB 18580-2017：Formaldehyde emission limits for wood-based panels, required for indoor office use；
4. GB/T 24821-2009：Performance requirements for office partition screens, applicable to divider panels；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · LIN-CUB-1050-WS

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · LIN-CUB-1050-WS

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · LIN-CUB-1050-WS打开导出工具

页面快速操作

发布采购询价

产品描述

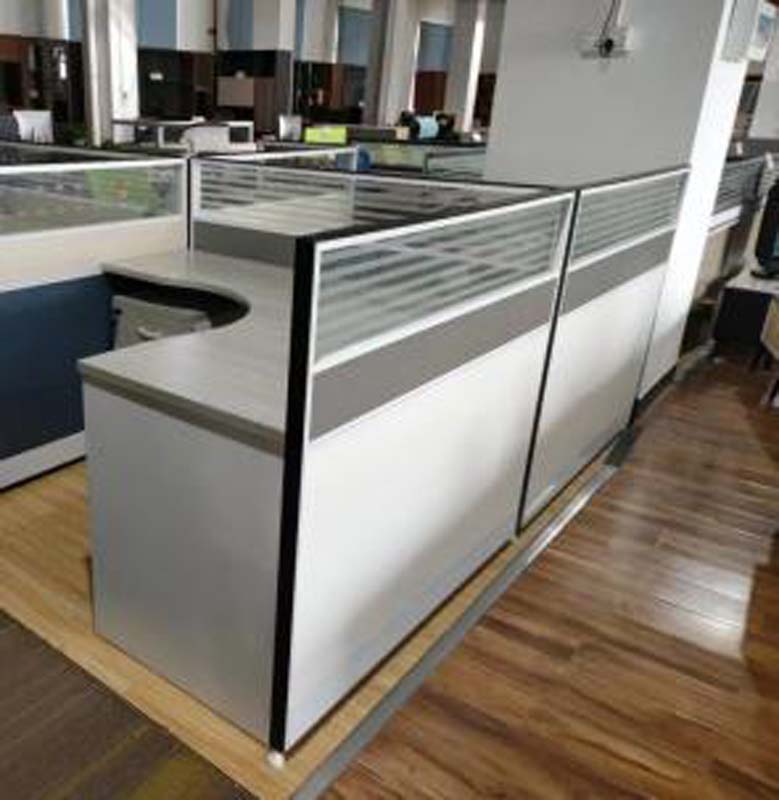

The Linear Modular Call Center Cubicle Workstation (model LIN-CUB-1050-WS) is an unbranded half-height linear modular office solution designed to balance individual privacy, open space flow, and scalable seating for high-occupancy work environments. Visually, the workstation follows a clean, streamlined linear layout that forms continuous straight banks of work positions. Each station features a two-part divider: a solid matte white lower modesty panel that blocks seated sightlines for personal privacy, paired with an upper frosted semi-translucent slatted glass screen set in an anodized aluminum frame with black trim edges that preserves 40% light transmission and consistent air circulation across the workspace. Constructed for commercial durability, the 25mm thick desktop uses melamine-faced MFC board with 2mm thick PVC edge banding on all cut edges to resist wear, with a rated static load capacity of 100kg. The partition structure relies on rigid anodized aluminum alloy extrusion supports, anchored to a galvanized steel leveling plinth fitted with adjustable glide feet to compensate for uneven commercial flooring. All board components carry sealed PVC edge banding, while connecting hardware is made of steel for long-term stability. Each workstation includes a three-drawer lockable mobile pedestal constructed from 0.8mm thick cold-rolled steel with a powder-coated white finish, fitted with 50mm diameter nylon swivel casters with brakes; each drawer supports 25kg of static load, and the unit tucks fully under the desk to save floor space. Practical, user-centric features are integrated directly into the design: a curved ABS-trimmed cable grommet routes power and data cords from the desktop surface to under-desk raceways to support telephony and computer setups. The interlocking aluminum frame connector system allows teams to extend workstation banks in straight runs as headcount grows, and pre-drilled knock-down components enable on-site assembly without specialized tools, with a reference assembly time of 40 minutes per single position. The aluminum frame also supports optional add-ons including CPU holders, keyboard trays, and under-desk wire trays for customized setup. This cubicle system is well suited for a range of commercial and flexible work spaces, including high-density call center open floors, open-plan administrative offices, co-working space dedicated desk zones, government and enterprise public service halls, growing small business team areas, and shift-based training or back-office processing centers. Its durable commercial-grade surfaces hold up to frequent daily use, with a maximum recommended user weight of 150kg per seat, and desktop abrasion resistance rated for 2000 cycles, while pedestal casters are rated for 50000 rolling cycles. For procurement planning, note that each single workstation position ships in two cartons, with a reference packaged gross weight of 120kg and reference packaging volume of 0.8m³, requiring advance coordination for freight and on-site staging. The modular, extendable structure allows teams to purchase initial positions and add matching units incrementally, eliminating the need for full workspace overhauls as operational needs change.

Linear Modular Call Center Cubicle Workstation with Frosted Slat Dividers Specifications
