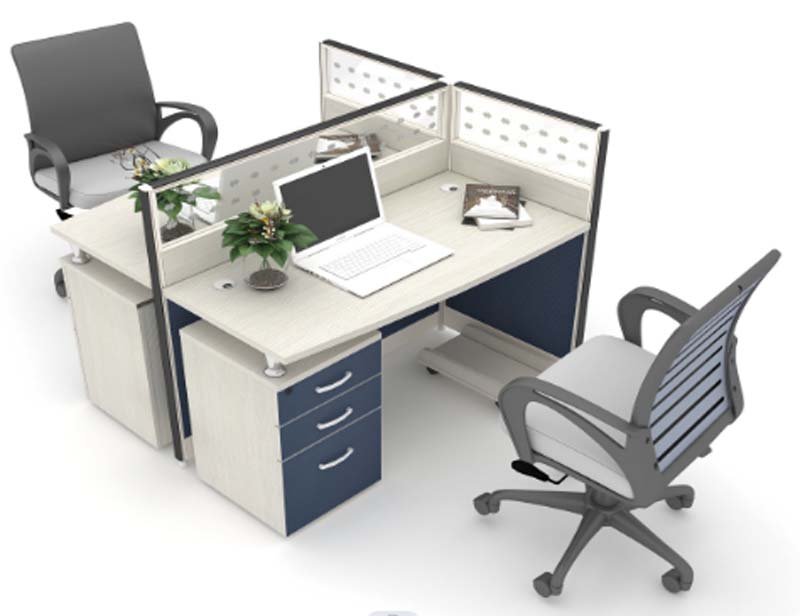

Two-Person L-Shaped Partitioned Office Cubicle Workstation with Attached 3-Drawer Pedestals Specifications

OFC-WS-2P-L-3D-2814

代码:S58TT3V1
获取供应商报价
2026-09-04 10:10人气: 14
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OFC-WS-2P-L-3D-2814

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint2820 x 1700 x 1200 mm
Standard desk working height750 mm
Partition privacy height1200 mm
Per-seat work surface width1500 mm
Per-seat work surface depth1500 mm
Desk top thickness25 mm
Under-desk seated knee clearance height725 mm
Attached 3-drawer pedestal dimensions400 x 550 x 725 mm
Partition panel overall thickness40 mm
Upper translucent partition panel thickness5 mm
Cable grommet diameter60 mm
Lower solid partition panel height650 mm
Desk leg adjustable foot diameter50 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Uniform desktop static load capacity80 kg
Single drawer slide load rating15 kg
Drawer slide cycle durability50000 open/close cycles
Desk panel density0.74 g/cm³
Work surface water absorption thickness expansion3.9%
Work surface bond strength1.6 MPa
Recommended user capacity2 full-time office staff
Warranty period10 years
Product net weight reference165 kg
Reference Static Load150 kg depending on category
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface panel25mm E1 grade melamine laminated MFC, 2mm PVC edge banding
Storage pedestal body18mm light woodgrain laminated MDF, PVC sealed edges
Drawer fronts16mm navy blue laminated MDF panel, curved metal pull handles
Partition frame40mm x 20mm powder-coated aluminum alloy extrusion
Upper partition panel5mm frosted semi-translucent patterned tempered glass
Lower partition panel18mm navy blue solid melamine laminated MDF
Drawer hardwareThree-section silent ball-bearing steel slides, central keyed lock
Leveling feetInjection-molded nylon base with zinc-plated steel threaded stem
Cable grommetsABS plastic circular desk inserts with removable brush cover
Structural connection hardwareZinc-plated steel cam locks and corner brackets
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seated privacy partition1200mm tall divider blocks direct line of sight between adjacent seated users
Per-position drawer storage3 vertically stacked drawers per seat with central locking system
Desktop cable management60mm diameter grommets route monitor, laptop and power cables below work surface
Integrated under-desk CPU platformRolling shelf mounts below rear work surface for computer tower storage
Floor leveling adjustmentThreaded feet on desk legs and partition bases adjust up to 15mm
Modular connection systemPre-drilled frame connectors allow reconfiguration into multi-seat layouts
Smooth drawer operationFull-extension ball-bearing slides allow drawers to open 100% of depth
Anti-scratch work surfaceHard-wearing melamine laminate resists daily abrasion from keyboards and office supplies
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office areasSuitable for administrative and operational staff with semi-private work zones
Start-up team workspacesCost-effective two-seat unit for small teams with immediate storage needs
Call center and shared work environmentsBalances privacy and collaboration between adjacent staff
Government and institutional officesDurable construction meets commercial procurement requirements for daily use
Temporary project office setupsKnockdown design allows fast deployment and reconfiguration as needed
Staff departments with limited floor spaceCompact L-shape maximizes usable work area per square meter
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements for commercial use
EN 527-2:2016Office worktables dimensional and stability performance requirements
EN 13722:2004Furniture strength and durability for storage units including pedestals
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Standard for desk products covering load, cycle and stability testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to desk and pedestal panels
GB 18580-2017Formaldehyde emission limit for wood-based panels, ≤0.124 mg/m³ for E1 grade
GB/T 3327-2016Performance requirements for office desks, covering load and stability
GB/T 4897.3-2015Specification for particleboard used in furniture grade applications
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desk and pedestal panels;
2. GB 18580-2017:Formaldehyde emission limit for wood-based panels, ≤0.124 mg/m³ for E1 grade;
3. GB/T 3327-2016:Performance requirements for office desks, covering load and stability;
4. GB/T 4897.3-2015:Specification for particleboard used in furniture grade applications;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OFC-WS-2P-L-3D-2814

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OFC-WS-2P-L-3D-2814

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OFC-WS-2P-L-3D-2814打开导出工具

页面快速操作

发布采购询价

产品描述

The Two-Person L-Shaped Partitioned Office Cubicle Workstation with Attached 3-Drawer Pedestals, model OFC-WS-2P-L-3D-2814, is an unbranded modular commercial office furniture solution built for shared work environments. It features a two-tone light wood and navy finish, with an L-shaped layout that positions two individual workstations at a right angle to maximize usable floor space. The 1200mm tall privacy partition creates semi-private work zones by blocking direct line of sight between adjacent seated users, combining 5mm frosted semi-translucent patterned tempered glass upper panels and 18mm navy blue solid melamine laminated MDF lower panels, framed by 40mm x 20mm powder-coated aluminum alloy extrusions. Each work surface measures 1500mm wide and 1500mm deep, constructed from 25mm E1 grade melamine laminated MFC with 2mm PVC edge banding, set at a standard 750mm working height with 725mm of under-desk knee clearance. Attached to each seat is a 3-drawer pedestal built from 18mm light woodgrain laminated MDF with PVC sealed edges, fitted with 16mm navy blue laminated MDF drawer fronts and curved metal pull handles. The pedestals run on three-section silent full-extension ball-bearing steel slides, secured by a central keyed lock, and sit flush to match the under-desk clearance height. Injection-molded nylon leveling feet with zinc-plated steel threaded stems allow up to 15mm of adjustment to accommodate uneven floors, while 60mm diameter ABS plastic cable grommets with removable brush covers route power and device cables below the work surface. An integrated rolling CPU shelf mounts below the rear of each work surface for computer tower storage. The unit supports 80kg of uniform static load per desktop, with each drawer rated for 15kg of weight and tested to 50,000 open/close cycles. Work surfaces feature 0.74 g/cm³ panel density, 3.9% water absorption thickness expansion, and 1.6 MPa bond strength for long-term commercial use. This workstation is suited for open plan administrative areas, startup team spaces, call centers, government and institutional offices, temporary project sites, and departments with limited floor space, balancing individual privacy and adjacent collaboration. Procurement teams should note the unit ships as one set across two cartons, with 40 minutes of assembly time per set, 0.8 m³ packaging volume, and 120kg packaged gross weight. The pre-drilled modular frame connectors support reconfiguration into larger multi-seat layouts for evolving space needs.
