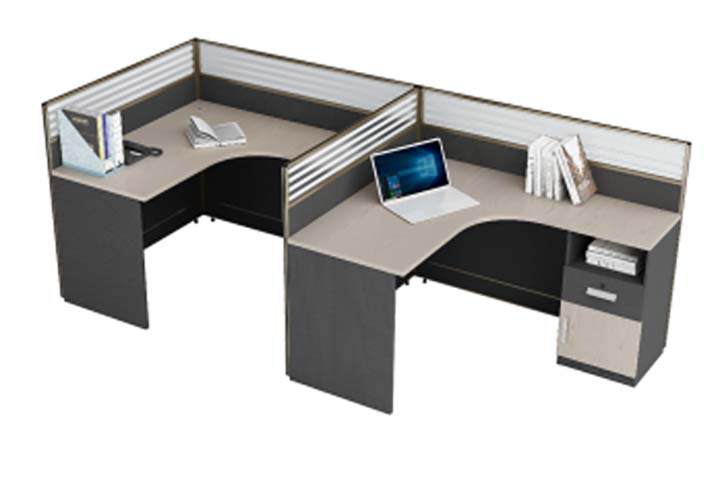

2-Person L-Shaped Partitioned Office Workstation with Built-In Storage Pedestals Specifications

WS-L2P-2800

代码:S6SUFAV1
获取供应商报价
2026-08-13 15:54人气: 49
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-L2P-2800

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended maximum seated users2
Worktop uniform static load capacity100 kg
Total product net weight155 kg
Partition panel sound transmission class20
Adjustable foot leveler adjustment range15 mm
Recommended product service life8 years
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface panel25mm thick E1 grade particleboard with 0.6mm wear-resistant melamine laminate
Desk side and modesty panels18mm thick E1 grade particleboard with dark gray melamine finish
Partition panel frame1.2mm thick extruded aluminum alloy with brushed bronze trim
Partition upper sectionTranslucent polycarbonate slat inserts with horizontal ribbing
Partition lower section16mm thick particleboard with dark gray fabric laminate covering
Storage pedestal drawer front18mm thick particleboard with dark gray melamine finish
Storage pedestal cabinet door18mm thick particleboard with light oak-effect melamine finish
Base support feet1.5mm thick steel with black powder coating and adjustable plastic leveler pads
Drawer hardwareCold-rolled steel drawer slides with zinc plating
Cable grommetABS plastic with black finish, 60mm diameter
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Semi-privacy partition system1100mm high dividers separate adjacent work zones while allowing overhead visibility
Built-in cable management grommet60mm diameter port at inner worktop corner routes power and data cables to under-desk channels
Adjustable floor levelersRotating pads at all base points compensate for uneven floor surfaces up to 15mm
Curved front worktop edgeContoured arc edge at knee opening reduces pressure on user forearms during extended use
Modular connection designPre-drilled joining hardware allows reconfiguration with matching workstation modules
Under-desk modesty panelSolid dark panel spans knee opening to block leg visibility and conceal under-desk cabling
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office areasSemi-privacy dividers support focused individual work while maintaining team accessibility
Small business administrative workspacesCompact dual-seat footprint fits in limited office floor space without separate wall offices
Call center and customer service zonesModular design allows connection into larger workstation clusters for team deployments
Government and corporate back-office spacesDurable commercial grade construction meets high-traffic daily use requirements
Temporary project team spacesReconfigurable modular structure supports quick layout changes for project-based teams
Co-working space dedicated desksIntegrated storage and cable management provides a permanent dedicated workspace for members
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-2:2002+A1:2016Office worktables safety and strength requirements, applicable to structural load performance
EN 13722:2004Office furniture storage units safety and strength requirements, applicable to integrated pedestals
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Office desk products performance standard, applicable to worktop load and durability testing
ANSI/BIFMA X5.9-2019Office storage units performance standard, applicable to drawer and cabinet load ratings
ANSI/BIFMA M7.1-2020Standard test method for VOC emissions from office furniture systems
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to all wood-based panel components
GB/T 35607-2017Green product assessment standard for furniture, applicable to VOC and formaldehyde emission limits
GB/T 10357.1-1989Furniture mechanical performance test for tables, applicable to worktop static and impact load verification
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to all wood-based panel components;
2. GB/T 35607-2017:Green product assessment standard for furniture, applicable to VOC and formaldehyde emission limits;
3. GB/T 10357.1-1989:Furniture mechanical performance test for tables, applicable to worktop static and impact load verification;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-L2P-2800

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-L2P-2800

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-L2P-2800打开导出工具

页面快速操作

发布采购询价

产品描述

The 2-Person L-Shaped Partitioned Office Workstation (model WS-L2P-280) is an unbranded office cluster workstation designed for balanced semi-private collaborative work, with a purpose-built L-shaped layout that positions two seated users at right angles to reduce direct visual distraction while preserving easy cross-team communication. Its 1100mm high partition system combines a brushed bronze 1.2mm extruded aluminum frame, translucent horizontally ribbed polycarbonate slat inserts at the upper section to retain overhead visibility, and dark gray fabric-laminated 16mm particleboard at the lower section to deliver a sound transmission class rating of 20, creating defined individual work zones without full visual or acoustic isolation. Each work surface is crafted from 25mm thick E1 grade particleboard topped with 0.6mm wear-resistant melamine, finished with a contoured curved front edge at the knee opening to reduce forearm pressure during extended use, and supported by 80mm main leg sections with 2mm metal wall thickness, fitted with 1.5mm black powder-coated steel feet paired with 15mm adjustable plastic levelers to compensate for uneven flooring. The finished worktop reaches 50mm total thickness, supporting a 100kg uniform static load, with a 150kg uniformly distributed top static load reference, and offers 680mm high, 900mm wide effective knee clearance per seat, with a dark gray 18mm melamine-finished modesty panel spanning each knee opening to block leg visibility and conceal under-desk cabling. Integrated functional features include a 60mm diameter cable grommet at the inner worktop corner, paired with 80mm diameter cable openings and a 120mm deep under-desk cable tray that holds up to 10 power or data cables with a 10kg tray load, to keep work surfaces free of tangled cords. Each workstation includes built-in storage pedestals, with drawer fronts finished in dark gray 18mm melamine, cabinet doors in light oak-effect 18mm melamine, and drawers fitted with zinc-plated cold-rolled steel slides for smooth operation. All connecting hardware is steel, and the modular pre-drilled connection design allows seamless joining with matching modules to build larger workstation clusters as needed. This model is well-suited for open plan office areas, small business administrative workspaces, call center and customer service zones, government and corporate back-office spaces, temporary project team areas, and co-working space dedicated desks, as its durable commercial-grade construction supports high-traffic daily use, with a recommended 8-year service life. For procurement, note that each set ships across multiple cartons with a total packaged gross weight of 180kg and 1m³ packaging volume, requires 40 minutes of assembly time per set, and carries a total net product weight of 155kg, with no external brand markings for flexible workspace branding alignment.
