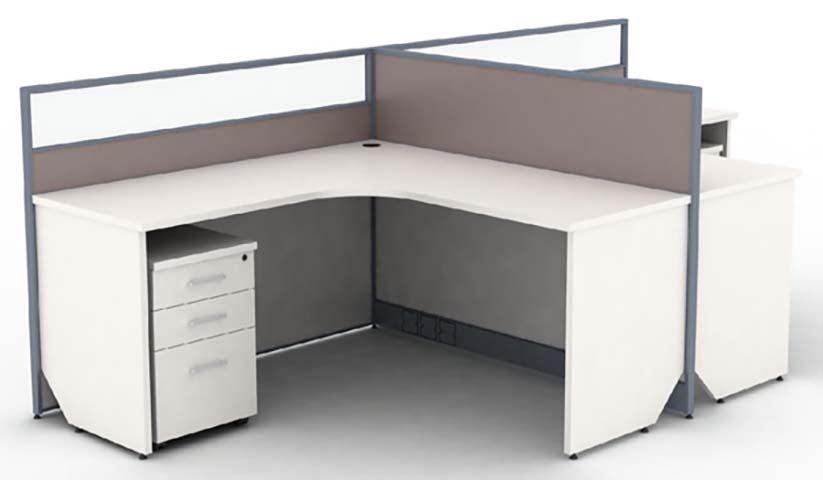

Modular L-Shaped Corner Office Cubicle Workstation with Frosted Glass Privacy Partition and 3-Drawer Mobile Pedestal Specifications

CUB-L1500-WHT-FG

代码:T0VYCYV1
获取供应商报价
2026-08-21 16:44人气: 30
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CUB-L1500-WHT-FG

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Worksurface uniform static load capacity80 kg
Drawer slide open/close cycle life50000 cycles
Set net weight (single workstation, including pedestal)75 kg
Recommended maximum user weight capacity120 kg
Edge banding wear resistance (Taber abrasion)2000 cycles
Formaldehyde emission level (board material)0.124 mg/m³
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Worksurface core and finish25mm E1 grade melamine-faced particleboard with 2mm rounded PVC edge banding
Privacy partition upper section5mm frosted tempered glass with 50% light transmittance, gray aluminum frame
Privacy partition lower section16mm E1 grade melamine-faced fiberboard with fabric-laminate gray finish
Structural support frame1.2mm wall thickness cold-rolled steel with gray electrostatic powder coating
Mobile pedestal construction18mm E1 grade white melamine particleboard, central zinc-alloy locking mechanism
Drawer hardware3-section full-extension silent steel ball-bearing slides, aluminum pull handles
Base components30mm diameter nylon swivel casters on pedestal, 15mm adjustable nylon leveling feet on desk base
Cable management componentsPVC under-desk raceway, 60mm ABS plastic desktop cable grommet
Partition connectors2.5mm wall thickness zinc-alloy modular connection brackets
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular connection systemZinc-alloy brackets enable 2/4/6-person cluster configurations without custom cutting
Drawer security systemCentral key lock secures all 3 pedestal drawers simultaneously
Cable routing systemDual entry: corner desktop grommet + under-desk raceway hides power and data cables
Pedestal mobility4 swivel casters allow pedestal to roll out for access or tuck fully under desk
Floor leveling functionAdjustable feet at each desk support point compensate for uneven flooring up to 15mm
Privacy screening function1200mm high partition blocks direct line of sight between adjacent seated users
Edge protection functionRounded 2mm PVC edges on all worktop corners reduce impact injury risk
Worksurface spill resistanceMelamine laminate finish resists water, coffee and common office chemical stains
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office staff work areasProvides individual visual privacy while supporting dense, efficient team seating layouts
Corporate administrative and clerical departmentsErgonomic 750mm work height supports 8-hour daily computer and paperwork tasks
Call center and customer service operationsModular design allows large cluster layouts with integrated cable management for headsets and IT equipment
Startup and co-working flexible spacesReconfigurable modular design supports changing team size and layout requirements
Government and institutional office spacesMeets public procurement durability and formaldehyde emission standards for long-term use
Small business open office layoutsBuilt-in mobile pedestal eliminates need for separate filing storage, saves floor space
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables: dimensional, safety and strength requirements for commercial office desks
EN 12521:2015Furniture: strength, durability and safety requirements for seating and work surfaces
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products: performance and safety test standard for office workstations
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Office furniture: desk dimensional, stability and strength requirements for general workstations
GB 18580-2017Indoor decoration material: formaldehyde emission limit for wood-based panels (E1 ≤ 0.124mg/m³)
GB/T 4897.3-2015Particleboard for furniture use: physical and mechanical property requirements for work surfaces
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Office furniture: desk dimensional, stability and strength requirements for general workstations;
2. GB 18580-2017:Indoor decoration material: formaldehyde emission limit for wood-based panels (E1 ≤ 0.124mg/m³);
3. GB/T 4897.3-2015:Particleboard for furniture use: physical and mechanical property requirements for work surfaces;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CUB-L1500-WHT-FG

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CUB-L1500-WHT-FG

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-L1500-WHT-FG打开导出工具

页面快速操作

发布采购询价

产品描述

The aibi furniture CUB-L1500-WHT-FG L-shaped corner office cubicle workstation delivers a balanced, space-efficient solution for modern shared work environments. Its signature L-shaped layout is anchored by a 1200mm high privacy partition, whose upper 5mm frosted tempered glass section with gray aluminum frame admits soft, diffused light while blocking direct seated line of sight between adjacent users, and a lower 16mm E1 grade melamine-faced fiberboard panel finished in fabric-laminate gray to create clear visual separation. The clean white worksurface is constructed from 25mm E1 grade melamine-faced particleboard with rounded 2mm PVC edge banding on all corners to reduce impact injury risk, paired with a 1.2mm wall thickness cold-rolled steel support frame finished in gray electrostatic powder coating. The included 3-drawer mobile pedestal is built from 18mm E1 grade white melamine particleboard, fitted with 3-section full-extension silent steel ball-bearing slides, aluminum pull handles, a central zinc-alloy lock that secures all drawers simultaneously, and 30mm diameter nylon swivel casters that let the unit roll out for easy access or tuck fully under the desk when not in use. The desk base rests on 15mm adjustable nylon leveling feet that compensate for uneven flooring, while integrated cable management components including a 60mm ABS desktop grommet and under-desk PVC raceway neatly route power and data cables out of sight. The zinc-alloy modular connection brackets enable reconfiguration into 2, 4, or 6-person cluster layouts without custom cutting, supporting flexible space planning. This workstation is suitable for open-plan office staff work areas, corporate administrative and clerical departments, call center operations, co-working and startup spaces, government and institutional offices, and small business open layouts. It supports an 8-hour daily work routine at its standard ergonomic work height, with durable construction that holds 80kg of uniform static load on the worksurface, drawer slides rated for 50000 open-close cycles, and board material with formaldehyde emission of 0.124mg/m³. For procurement, note each single workstation set ships in 2 cartons, requires 40 minutes of assembly per unit, has a 0.8m³ packaged volume and 120kg packaged gross weight, with a 75kg net weight including the pedestal, and meets public procurement durability and emission requirements for long-term public furniture deployment.
