Name: L-Shaped Partitioned Office Cubicle Workstation with Mobile Pedestal
Brand: aibi furniture
SKU: TPSUKG

纠错时间

修改字段

原参数

修改后参数

说明 / 状态

暂无参数纠错记录，发现错误可点击行末旗标提交

PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1800 × 1800 × 1150 mm
Overall footprint	1800 x 1800 x 1150 mm
Work surface height	750 mm
Work surface depth	700 mm
Work surface thickness	25 mm
PVC edge band thickness	2 mm
Divider height above worktop	400 mm
Knee clearance height	600 mm
Knee clearance width at corner	800 mm
Mobile pedestal dimensions	420 x 440 x 560 mm
Cable grommet diameter	60 mm
Support frame steel thickness	1.2 mm
Divider panel thickness	32 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Work surface static load capacity	150 kg
Drawer slide cycle rating	50000
Net weight per workstation	95 kg
Recommended user weight capacity	136 kg
Fabric acoustic attenuation	18 dB
Surface abrasion resistance	2000 cycles
Leveling foot adjustment range	15 mm
Warranty period	60 months
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Work surface substrate	E1 grade high-density particleboard, 720kg/m³ density
Work surface finish	White melamine laminate, stain and scratch resistant
Edge banding	2mm PVC heat-sealed edging, waterproof impact resistant
Partition frame	Powder-coated dark gray cold-rolled steel, 1.2mm wall thickness
Divider infill panel	Olive green polyester fabric over acoustic fiber fill, B1 flame retardant
Modesty panel	Gray laminated hardboard, 18mm thickness
End support panels	White melamine laminated particleboard, 25mm thickness
Mobile pedestal body	White powder-coated steel construction with aluminum drawer pulls
Pedestal casters	Black nylon twin-wheel casters, 50mm diameter with anti-tip 5th wheel
Cable grommet	ABS plastic, brushed black finish
Leveling feet	Nylon base with steel threaded stem, black finish
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Cable management	Corner grommet routes power/data cords below work surface, integrated partition raceway hides wiring
Mobile pedestal storage	2 lockable drawers, lower drawer supports A4 suspension filing, rolls freely under desk
Privacy partitioning	Two-way low fabric dividers separate adjacent workstations, reduce visual distraction and cross-noise
Modular configuration	Connects to matching adjacent stations to form linear, T-shaped or 4-person cluster layouts
Floor stabilization	Adjustable leveling feet compensate for uneven floors, eliminate wobble during use
Drawer operation	3-section ball-bearing slides provide full drawer extension, smooth quiet open/close
Surface maintenance	Non-porous melamine finish resists common office stains, wipes clean with standard disinfectants
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Open plan office spaces	Provides individual work zones for staff in shared office environments with low visual distraction
Call center and administrative work areas	Dense, efficient workstation layout for high-density daily seated computer work
Startup and co-working facilities	Reconfigurable modular layout adapts to changing team size and seating arrangements
Medical and institutional admin areas	Durable easy-clean surfaces support frequent cleaning for healthcare back-office use
Government and enterprise staff zones	Standardized specification supports bulk procurement with consistent performance across floors
1-2 person per station use	Supports individual seated work with adjacent side surface for printer or document storage

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011	Office workdesk dimensional stability, strength and durability requirement
EN 13501-1	Class B flame retardant rating for upholstered partition fabric components

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021	Desk products strength, durability and structural stability performance standard
ANSI/BIFMA X5.6-2022	Office panel systems/cubicles structural and performance requirement standard

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB 18584-2017	Formaldehyde emission limit ≤0.124mg/m³ for wood-based office furniture panels
GB 20286-2006	B1 flame retardant rating requirement for upholstered fabric divider panels

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB 18584-2017：Formaldehyde emission limit ≤0.124mg/m³ for wood-based office furniture panels；
2. GB 20286-2006：B1 flame retardant rating requirement for upholstered fabric divider panels；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CUB-L-CURV-1800-OLV

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CUB-L-CURV-1800-OLV

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-L-CURV-1800-OLV打开导出工具

页面快速操作

发布采购询价

产品描述

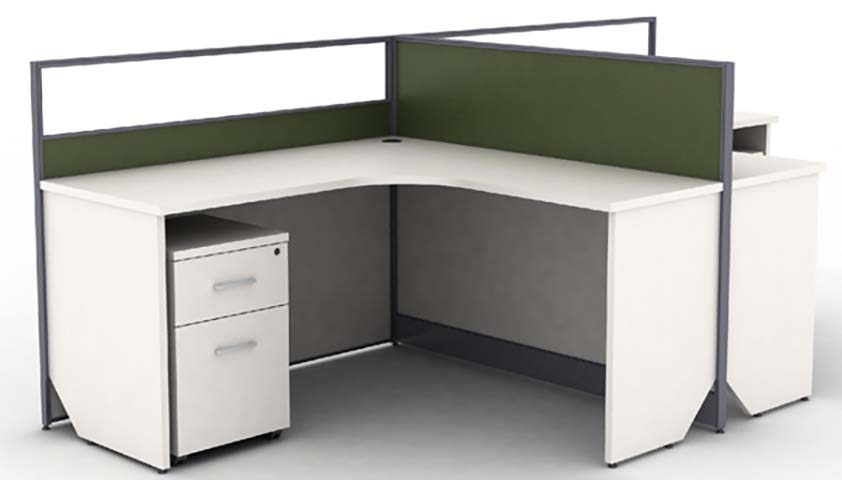

The L-Shaped Partitioned Office Cubicle Workstation with Mobile Pedestal from aibi furniture, model CUB-L-CURV-1800-OLV, is a modular L-shaped office cubicle desk designed to balance open-plan flexibility and individual work privacy. Its silhouette features an L-configured work surface paired with low two-way fabric dividers that sit above the worktop, creating defined personal work zones without fully blocking sightlines across shared spaces. The corner layout integrates dedicated knee clearance at the inner angle, while the included lockable mobile pedestal tucks neatly under the work surface to preserve open leg room when not in use. Stations are designed to connect seamlessly to matching units to form linear, T-shaped, or four-person cluster layouts as needed. Construction uses durable, purpose-selected materials for high-traffic commercial use. The work surface is built from E1 grade high-density particleboard with a white stain- and scratch-resistant melamine laminate finish, sealed with heat-fused waterproof, impact-resistant PVC edge banding. Partition frames are constructed from powder-coated dark gray cold-rolled steel, holding olive green polyester fabric infill panels backed with acoustic fiber fill that delivers B1 flame retardant performance and reduces cross-workstation noise. End support panels use matching melamine-laminated particleboard, while the modesty panel is formed from gray laminated hardboard. The mobile pedestal features a white powder-coated steel body with aluminum drawer pulls, mounted on black nylon twin-wheel casters with an anti-tip fifth wheel, and adjustable leveling feet on the main workstation compensate for uneven floors to prevent wobble. Core functional features support productive daily work: an integrated cable management system includes a corner grommet to route power and data cords below the work surface, plus a partition raceway to conceal loose wiring. The mobile pedestal holds two lockable drawers, with the lower drawer sized to support A4 suspension filing, running on three-section ball-bearing slides that enable full, smooth, quiet drawer extension. The non-porous melamine work surface wipes clean easily with standard disinfectants, while the low dividers reduce visual distraction and cross-noise between adjacent users. The work surface supports static loads suitable for desktop office equipment, with clearance to accommodate adjacent placement of printers or document storage for one to two users per station. This workstation is suited for a range of commercial and residential-adjacent work settings, including open-plan office spaces, call centers, administrative work areas, startup and co-working facilities, healthcare back-office administrative zones, and government or enterprise staff floors. Its reconfigurable modular design adapts to changing team sizes in flexible workspaces, while its easy-clean durable surface meets the frequent sanitation needs of institutional environments, and its standardized specification supports consistent bulk deployment across large facilities. For procurement planning, note that each workstation ships across multiple cartons, with a reference assembly time of 40 minutes per unit, and packaged gross weight per set reaches 180 kg. Specifiers should account for required layout spacing when planning cluster configurations, and confirm compatibility with matching aibi furniture workstation units for expanded installations. The unit is designed for seated daily computer work, with weight ratings aligned to standard office use and long-term durability for high-turnover work environments.

L-Shaped Partitioned Office Cubicle Workstation with Mobile Pedestal Specifications
