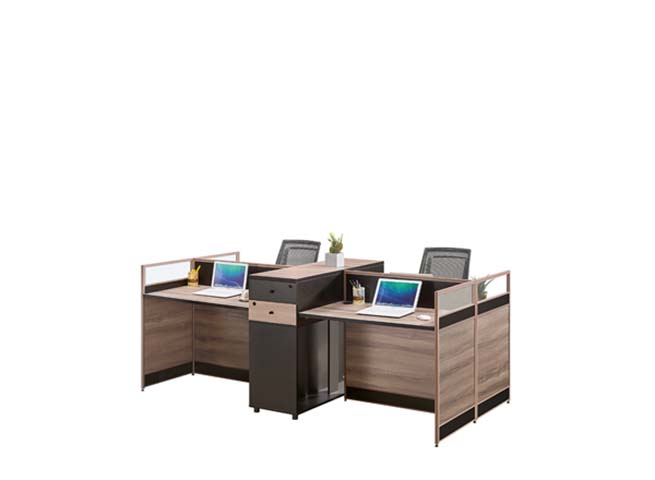

商品供应商2-Person Opposing Modular Office Workstation Desk with Central Storage,Particle‑board (PB)
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions (W x D x H, including dividers) | 2800 x 1400 x 1100 mm | |
|---|---|---|
| Worksurface height from floor | 750 mm | |
| Single workstation worksurface width (per user) | 1200 mm | |
| Single workstation worksurface depth | 600 mm | |
| Under-desk knee clearance height | 650 mm | |
| Under-desk knee clearance width per user | 580 mm | |
| Central storage unit dimensions (W x D x H) | 400 x 1200 x 1100 mm | |
| Privacy divider thickness | 60 mm | |
| Worksurface panel thickness | 25 mm | |
| Edge banding thickness | 2 mm | |
| Frosted glass divider panel thickness | 10 mm | |
| Drawer internal depth per drawer | 450 mm | |
| Adjustable leveling foot height adjustment range | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall |
净重 / 最大承重 / 适用人数 / 耐久性能
| Worksurface static load capacity | 120 kg | |
|---|---|---|
| Central cabinet internal storage volume | 180 L | |
| Recommended user capacity | 2 users | |
| Surface scratch resistance (abrasion cycles) | 2000 cycles | |
| Product net weight | 120 kg | |
| Drawer slide operational cycle rating | 50000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Worksurface panels | E1-grade melamine-faced chipboard (MFC) with walnut woodgrain finish | |
|---|---|---|
| Central storage cabinet body | Black melamine-faced MDF with matte finish | |
| Divider framing | Anodized aluminum alloy trim with light bronze finish | |
| Upper divider panels | 10mm frosted semi-transparent tempered glass | |
| Lower divider/modesty panels | Matching walnut-grain melamine MFC with black bottom trim | |
| Edge banding | 2mm thick ABS impact-resistant edging on all panel cut edges | |
| Drawer slides | Cold-rolled steel 3-quarter extension ball-bearing slides | |
| Leveling feet | Reinforced nylon base with steel threaded adjustment stem | |
| Hardware fasteners | Zinc-plated steel cam lock and screw assembly hardware | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Central storage layout | 2 upper drawers plus 1 lower enclosed cabinet shared between two users | |
|---|---|---|
| Privacy screening | Partial height dividers block direct line of sight between seated users | |
| Cable management | Desk-top cable grommets route power/data cables to under-desk raceway | |
| Floor leveling | Adjustable feet at all base corners compensate for uneven floor surfaces | |
| Drawers operate | Smooth ball-bearing slides for quiet open/close without sag under load | |
| Modular construction | Knock-down assembly allows reconfiguration or replacement of individual panels | |
| Worksurface access | Each user has dedicated independent L-shaped work surface with separate knee opening | |
| Storage access | Each user can access one upper drawer and shared lower cabinet space from their seat | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
推荐空间 / 目标用户 / 使用方式
| Open plan office staff zones | Provides divided individual workspaces for back-office or administrative teams | |
|---|---|---|
| Small business startup offices | Compact footprint fits two staff without requiring full cubicle installation | |
| Call center and customer support floors | Partial dividers reduce distraction while maintaining supervisor visibility | |
| Shared co-working dedicated desks | Allocated permanent work positions for two co-working members | |
| Branch office administrative areas | Standardized modular layout for consistent multi-location office fit-outs | |
| Temporary project team workspaces | Can be assembled and reconfigured for short-term project team seating |
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office worktables safety and strength requirements for commercial desk products | |
|---|---|---|
| EN 13722:2004 | Office furniture storage units strength and durability requirements for central pedestal | |
| EN 14073-2:2004 | Office storage furniture safety requirements for drawer and cabinet components |
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for worksurface load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for drawer and cabinet cycle testing |
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to panel desk components | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade required for acceptance | |
| GB/T 4897.3-2018 | Performance requirements for particleboard used in furniture structural applications |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden office furniture, applicable to panel desk components; 2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, minimum E1 grade required for acceptance; 3. GB/T 4897.3-2018:Performance requirements for particleboard used in furniture structural applications; 最终交付参数、检测报告和验收标准以双方采购合同为准。
