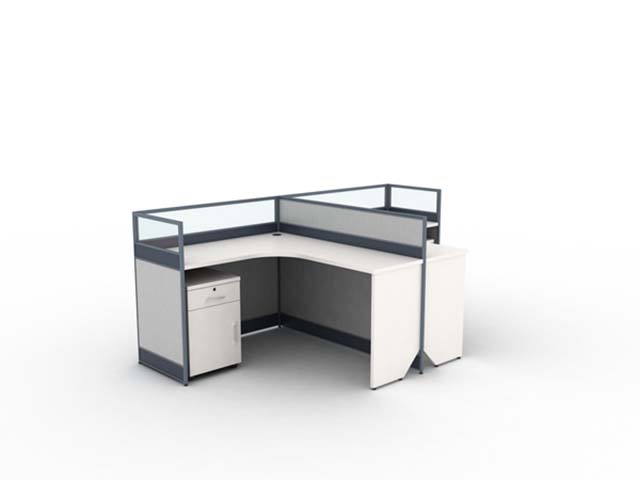

L-Shaped 2-Person Partitioned Office Workstation with Mobile Pedestals Specifications

WS-L2P-1400

代码:TX71P7V1
获取供应商报价
2026-08-21 15:13人气: 23
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-L2P-1400

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Work surface static load capacity100 kg
Net workstation weight per seat85 kg
Recommended user capacity2 people
Partition panel impact resistance30 kg
Leveling foot adjustment range10 mm
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement WarrantyStructure 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface25mm thick E1 grade particleboard with 0.6mm melamine laminate finish, impact-resistant edge banding
Partition frame1.2mm thick powder-coated dark gray aluminum alloy extrusion, modular connector joints
Upper partition panel5mm thick frosted semi-transparent tempered glass, edged with rubber seal in frame
Lower partition panel12mm thick fabric-wrapped acoustic fiberboard, sound-dampening surface
Modesty panel10mm thick fabric-covered MDF panel mounted under rear worktop edge
Mobile pedestal body18mm thick E1 grade particleboard with white melamine finish, 4 x 50mm swivel casters
Pedestal hardwareZinc alloy drawer lock, steel drawer slides, ABS plastic integrated handle
Leveling feetNylon base with steel threaded stem, fitted to base of each support leg
Cable grommetABS plastic round cable port fitted at internal worktop corner
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Cable managementCorner grommet routes power and data cables from worktop to under-desk cable channel
Seated privacy partition1100mm high dividers block direct line of sight between adjacent seated users
Modular assemblyPartition frames connect with knock-down steel brackets for reconfiguration of workstation layouts
Floor levelingThreaded adjustable feet at each support point adjust to eliminate wobble on uneven floors
Two-person independent work zoneSeparated L-shaped work areas provide dedicated surface space for two separate users
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan general office spaceFits standard corporate office layouts for 2 adjacent staff, balances privacy and collaboration
Small team administrative work areaSuitable for data entry, administration, and customer service roles with dedicated storage
Startup flexible workspaceModular construction allows reconfiguration as team size changes over time
Government or enterprise call centerAcoustic fabric panels reduce cross-talk noise between adjacent seated agents
Branch office reception back officeCompact L-shaped footprint fits small back-office rooms for administrative support staff
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office furniture strength and durabilityEN 527:2002 Office work tables, safety and strength requirements
Office chair/workstation ergonomicsEN 1335:2000 Office furniture, office work chair dimensional coordination
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing referenceRecommended references: ANSI/BIFMA X5.6
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Desk panel formaldehyde emissionGB/T 18580E1 grade
Office desk structural stabilityGB/T 3324General technical requirements for wooden furniture
Tempered glass safetyGB 15763.2Safety glazing materials for building part 2
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Desk panel formaldehyde emission:GB/T 18580E1 grade;
2. Office desk structural stability:GB/T 3324General technical requirements for wooden furniture;
3. Tempered glass safety:GB 15763.2Safety glazing materials for building part 2;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-L2P-1400

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-L2P-1400

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-L2P-1400打开导出工具

页面快速操作

发布采购询价

产品描述

The WS-L2P-1400 L-Shaped 2-Person Partitioned Office Workstation from aibi furniture is a purpose-built modular office seating solution designed to balance individual focus and collaborative accessibility for shared work environments. Visually, the workstation features a streamlined L-shaped layout that creates two distinct, independent work zones separated by 1100mm high dividers. The upper partition uses 5mm frosted semi-transparent tempered glass set in a dark gray powder-coated aluminum frame, edged with rubber seals for a clean, modern finish, while the lower partition uses fabric-wrapped acoustic fiberboard to soften sightlines and reduce visual clutter. A fabric-covered modesty panel sits below the rear edge of each work surface, and matching white melamine mobile pedestals tuck neatly under each desk to maintain a cohesive, uncluttered aesthetic. Construction uses durable, commercial-grade materials selected for long-term office use. Work surfaces are built from 25mm thick E1 grade particleboard with a 0.6mm melamine laminate and impact-resistant edge banding, finished to a 50mm total top thickness, supported by 80mm main leg sections with 2mm metal wall thickness. Partition frames use 1.2mm powder-coated dark gray aluminum alloy with modular knock-down steel bracket connectors, while mobile pedestals are constructed from 18mm E1 grade particleboard with white melamine, fitted with 50mm swivel casters, zinc alloy drawer locks, steel drawer slides, and integrated ABS plastic handles. Nylon leveling feet with steel threaded stems are fitted to each support leg for stability. Functionally, the workstation supports two dedicated users, with 680mm high and 900mm wide knee clearance per seat, a 100kg static load capacity per work surface, and 150kg uniformly distributed top load rating. The partition panels resist 30kg impact, while drawer slides support 45kg per pair across 50000 open-close cycles. An 80mm diameter ABS cable grommet at the internal corner routes power and data cables to a 120mm deep under-desk cable tray, which holds up to 10 cables with a 10kg load capacity. Leveling feet offer 10mm of adjustment to eliminate wobble on uneven floors, and the modular frame supports 5 controlled reconfiguration cycles to adapt to changing space needs. Each mobile pedestal provides lockable personal storage for individual users. This workstation is well-suited for open plan general office spaces, small team administrative work areas for data entry, administration or customer service roles, flexible startup workspaces, government or enterprise call centers where the acoustic fabric panels reduce cross-talk between adjacent agents, and compact branch office back-of-house reception support areas. For procurement, note that each workstation is sold as one set, with a 40-minute assembly time, 1 cubic meter packaging volume, and 180kg packaged gross weight. Allocate appropriate delivery and installation resources, and confirm layout compatibility to leverage the modular reconfiguration capability for long-term space flexibility.
