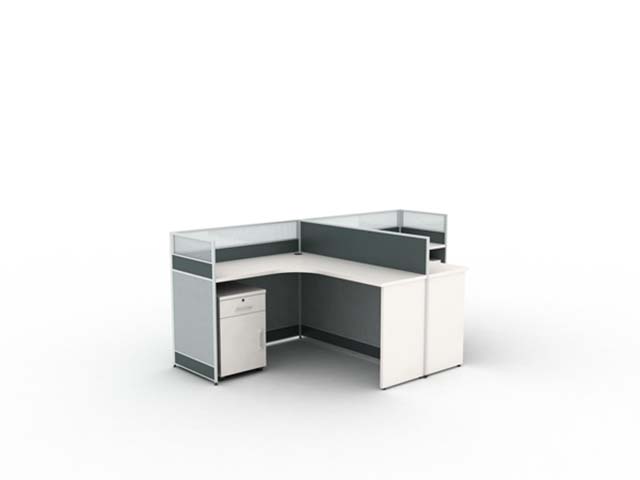

Single-seat L-shaped office workstation with partition panels and mobile pedestal Specifications

WS-L1-140140

代码:W0WG1UV1
获取供应商报价
2026-08-21 13:32人气: 21
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-L1-140140

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Whole workstation net weight95 kg
Work surface static load capacity120 kg
Recommended maximum user weight150 kg
Partition sound transmission class20 dB
Surface abrasion resistance2000 cycles
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement WarrantyStructure 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Worktop substrate18mm E1 grade particleboard
Worktop surface finish0.7mm thick matte melamine laminate
Frame and support structure1.2mm thick powder-coated square steel tube
Lower partition panel fabricPolyester fabric covering over 25mm MDF core
Upper partition panel5mm frosted translucent acrylic panel
Mobile pedestal body0.8mm cold-rolled steel with epoxy powder coat
Adjustable foot glidesNylon base with steel threaded stem
Partition edge trimPVC edge banding, 2mm thick
Desk edge banding2mm thick PVC edging
Lock mechanismZinc alloy cam lock with 2 keys
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Corner cable grommet80mm diameter plastic grommet at inner worktop corner
Mobile pedestal mobility4 swivel nylon casters, 2 with brake, fitted to pedestal base
Pedestal storage configuration1 top lockable pencil drawer, 1 lower door-enclosed storage compartment
Partition privacy function1200mm mid-height panel blocks direct line of sight between seated users
Modular connection designPre-drilled steel frame connects to adjacent workstations
Foot glide adjustment10mm vertical adjustment via threaded glides at all frame base points
Under-desk modesty panelFull-height fabric panel along desk front edges
Cable management channelRecessed steel channel along rear of worktop
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office spaceFor individual task work in open office layouts, balances privacy and collaboration
Small business officeSuitable for startup and small team offices, modular design supports easy reconfiguration
Call center workstationSized for computer and telephone equipment, partition reduces cross-user distraction
Administrative staff workspaceProvides lockable personal storage for office supplies and documents
Temporary project workspaceModular connection allows quick setup and rearrangement for short-term project teams
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office furniture safety standardEN 527:2011
Office furniture dimensional standardEN 527:2002
Office storage stability standardEN 14073:2004
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Desk performance standardANSI/BIFMA X2021
Storage unit standardANSI/BIFMA X2019
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Desk dimensional standardGB/T 3326
Furniture safety standardGB/T 3324
Panel formaldehyde limitGB 18580
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Desk dimensional standard:GB/T 3326;
2. Furniture safety standard:GB/T 3324;
3. Panel formaldehyde limit:GB 18580;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-L1-140140

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-L1-140140

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-L1-140140打开导出工具

页面快速操作

发布采购询价

产品描述

This single-seat L-shaped office workstation, model WS-L1401is an unbranded cubicle desk designed to balance individual privacy and collaborative accessibility in professional work environments. Its L-shaped layout creates a generous, contiguous work surface wrapped by mid-height partition panels that block direct line of sight between seated users, with lower sections upholstered in durable polyester fabric over an MDF core and upper sections made of frosted translucent acrylic to maintain light flow while reducing visual distraction. The worktop features a smooth matte melamine laminate finish with impact-resistant PVC edge banding, supported by a rigid powder-coated square steel tube frame fitted with nylon adjustable foot glides to compensate for uneven flooring. A full-height fabric modesty panel runs along the front desk edges for added privacy. Integrated cable management includes an inner-corner plastic grommet paired with an under-desk cable tray to keep power and data cords organized and out of sight. The unit comes with a matching steel mobile pedestal, finished with an epoxy powder coat and mounted on four swivel nylon casters, two of which include locking brakes for stable positioning when in use. The pedestal offers secure personal storage with a top lockable pencil drawer and a lower door-enclosed compartment for office supplies, documents and personal items, supported by heavy-duty drawer slides rated for consistent long-term use. This workstation is well suited for open-plan office individual task zones, small business and startup team spaces, call center floors where reduced cross-user distraction is key, administrative staff work areas, and temporary project workspaces where fast layout changes are required. Its pre-drilled modular frame connects seamlessly to adjacent matching workstations to support flexible reconfiguration as team needs evolve. Procurement teams should note the unit ships across multiple cartons, with a per-set assembly time suitable for standard facilities installation. The robust construction supports standard office equipment loads, with static load ratings aligned to regular daily work use, and the partition design delivers measured sound dampening to support focused work. When planning layouts, teams should account for the set’s packaged volume and gross weight for shipping and on-site storage planning prior to installation.
