6-Person Cross-Shaped Modular Office Cubicle Workstation with Fixed Under-Desk Storage Specifications

WS-CROSS6-LOSG

代码:W7B2CXV1
获取供应商报价
2026-09-02 12:18人气: 15
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-CROSS6-LOSG

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall cluster dimensions3600 x 2400 x 1200 mm
Individual work surface dimensions1400 x 600 mm per seat
Work surface height750 mm
Privacy partition height1200 mm
Under-desk fixed pedestal dimensions725 x 420 x 480 mm
Knee clearance height under work surface650 mm
Work surface thickness25 mm
Privacy partition thickness57 mm
Steel support leg diameter30 mm
Leg height (floor to cabinet base)100 mm
PVC edge banding thickness2 mm
Drawer interior usable depth450 mm
Knee well width per seat600 mm
Upper partition grille section height300 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per-seat work surface static load capacity100 kg
Total workstation unit net weight420 kg
Recommended maximum user weight per seat150 kg
Work surface scratch resistance rating2000 cycles
Surface stain and water resistanceGrade 1
Product structural warranty5 years
Available finish color options30
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface substrate25mm E1-grade melamine-faced particleboard (MFC)
Work surface edge finish2mm thick impact-resistant PVC edge banding, sealed on all edges
Privacy partition panelFabric-upholstered acoustic panel with perforated upper grille, aluminum perimeter frame
Structural support frame1.5mm thick powder-coated dark gray steel
Cabinet carcass and drawer frontsLight oak finish melamine engineered wood, sage green painted/laminated drawer faces
Support legsTapered powder-coated steel legs with leveler feet
Drawer hardwareZinc-plated steel full-extension drawer slides, recessed metal drawer pulls
Modular connection hardwareZinc-plated steel cam lock and bracket fasteners for cluster assembly
Desk modesty panelsMatching light oak melamine engineered wood panels
Cable grommetsABS plastic round cable access grommets at each work position
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Per-seat storage layoutOne upper shallow drawer plus lower enclosed cabinet for personal storage at each seat
Privacy partition functionFabric lower panels block direct seated sightlines, upper grille allows light and air flow
Modular cluster configurationCross-shaped layout creates 6 individual L-shaped work positions sharing central partition supports
Cable management accessSurface-mounted cable grommets at each seat route power and data cables under the work surface
Leveling adjustmentAdjustable feet on each support leg compensate for uneven office flooring
Assembly structureKnock-down flat-pack design allows on-site assembly and reconfiguration of cluster layout
Mounting compatibilityPartition frames support optional monitor arms, task lights and accessory hooks
Storage access orientationPedestal drawers and cabinets open toward the seated user for easy access while working
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office spacesProvides semi-private individual work zones for teams without full wall construction
Call center and shared service workspacesPartition dividers reduce cross-talk distraction while supporting supervisor visibility between seats
Startup and small business officesAll-in-one cluster includes storage for 6 users without requiring separate cabinet purchases
Administrative and back-office departmentsFixed per-seat storage supports daily file and supply organization for administrative staff
Flexible co-working spacesModular design allows reconfiguration if team sizes or layouts change over time
Corporate branch office installationsStandard dimensions align with global office ergonomic guidelines for multinational fit-outs
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables safety and strength requirements, applicable to work surface and frame performance
EN 1335-1:2020Office furniture workstation dimensions for seated use, applicable to knee clearance and work height alignment
EN 1023-1:1999Office storage furniture safety requirements, applicable to under-desk pedestal cabinets
EN 13986:2004Wood-based panels for construction use, formaldehyde emission class E1 required for indoor installation
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products standard for safety, durability and structural performance
ANSI/BIFMA X5.9-2019Office storage units standard for drawer performance and cabinet stability
ANSI/BIFMA X5.6-2021Panel systems standard for partition strength, stability and modular connection performance
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden office furniture, applicable to cabinet and desktop components
GB/T 3327-2018Performance and test methods for office desks, applicable to work surface load and stability testing
GB 18580-2017Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use
GB/T 24821-2009Test methods for office furniture partitions, applicable to partition stability and load testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden office furniture, applicable to cabinet and desktop components;
2. GB/T 3327-2018:Performance and test methods for office desks, applicable to work surface load and stability testing;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use;
4. GB/T 24821-2009:Test methods for office furniture partitions, applicable to partition stability and load testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-CROSS6-LOSG

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-CROSS6-LOSG

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-CROSS6-LOSG打开导出工具

页面快速操作

发布采购询价

产品描述

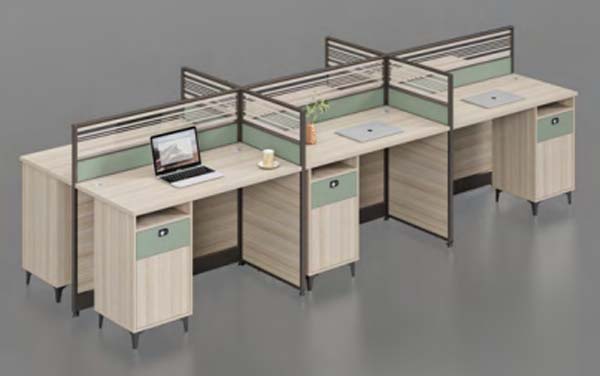

The 6-Person Cross-Shaped Modular Office Cubicle Workstation (model WS-CROSS6-LOSG, unbranded) is a cluster-configured work unit designed to deliver semi-private, organized workspace for teams, finished in a light oak base with complementary sage green storage accents. Its cross-shaped layout arranges six individual L-shaped work positions around shared central privacy partitions, eliminating the need for separate wall construction to divide open floor space. Each seat is paired with a 1200mm tall partition, where fabric-upholstered lower panels block direct seated sightlines to reduce distraction, and an upper perforated grille supports natural light transmission and air circulation across the cluster. The workstation is built for long-term commercial use: 25mm thick E1-grade melamine-faced particleboard work surfaces are sealed on all edges with 2mm impact-resistant PVC edge banding, supported by 1.5mm thick powder-coated dark gray steel frames and tapered steel legs fitted with adjustable leveler feet to compensate for uneven flooring. Fixed under-desk pedestals at each seat use matching light oak melamine cabinetry with sage green drawer faces, fitted with zinc-plated steel full-extension slides and recessed metal pulls, while all modular connections use durable zinc-plated steel cam locks and brackets for secure assembly. Each work surface supports 100kg of static load, accommodates users up to 150kg, and features surface-mounted cable grommets to route power and data lines neatly out of sight. The fixed per-seat storage includes one upper shallow drawer and one lower enclosed cabinet to hold personal items, files, and daily work supplies, removing the need for separate storage purchases for deployed teams. Partition frames are compatible with optional monitor arms, task lights, and accessory hooks to support personalized workstation setups, while the knock-down flat-pack structure allows on-site assembly and future layout reconfiguration as team needs shift. The unit carries a 5-year structural warranty, with 30 available finish options to align with diverse interior design schemes. This workstation is ideal for open plan offices, call center and shared service floors, startup and small business spaces, administrative back-office departments, flexible co-working facilities, and corporate branch office fit-outs. When procuring, teams should note the unit ships in 2 cartons per set, requires 40 minutes of on-site assembly per cluster, and follows standard ergonomic dimensions compatible with global office fit-out guidelines, with work surfaces set at 750mm height and 650mm of knee clearance per seat for comfortable extended use.
