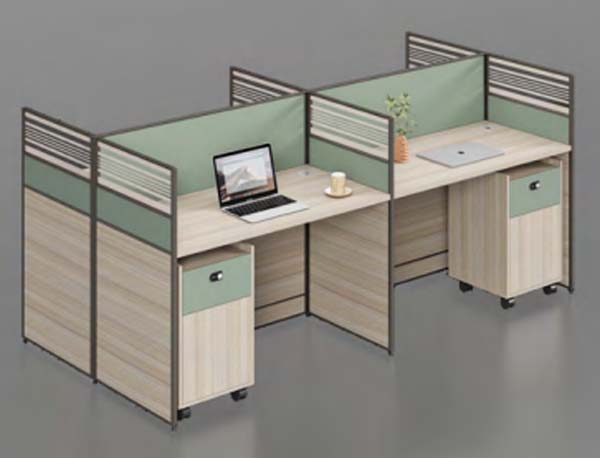

2-Person L-Shaped Office Cubicle Workstation with Mobile Storage Pedestals Specifications

CUB-L2-2816-110

代码:WSRMLHV1
获取供应商报价
2026-09-01 16:19人气: 21
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CUB-L2-2816-110

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint2800 x 1600 x 1100 mm
Work surface height750 mm
Per-seat work surface size1400 x 700 mm
Partition panel thickness60 mm
Work surface thickness25 mm
Knee clearance height under desk650 mm
Mobile pedestal dimensions420 x 460 x 650 mm
Partition privacy panel height above desk350 mm
Caster wheel diameter50 mm
Desk grommet diameter60 mm
Edge banding thickness2 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per work surface static load capacity91 kg
Product total net weight99 kg
Recommended user weight per seat136 kg
Surface scratch resistance3H pencil hardness
Caster rolling durability40000 cycles
Pedestal drawer static load25 kg
Warranty period10 years
Available color options6
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface substrateE1 grade particleboard core
Work surface finishThermally fused melamine laminate
Edge banding2mm thick PVC edge trim
Partition framePowder-coated steel tube frame
Upper partition panelSage green fire-retardant fabric cover
Lower modesty panelLight oak melamine-faced panel
Mobile pedestal bodyMelamine-faced particleboard
CastersBlack nylon swivel casters
Drawer hardwareZinc alloy drawer pull and slide
Cable grommetsABS plastic desk grommets
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Privacy separation3-sided fabric partitions per seat block direct line of sight between adjacent users
Mobile storageRolling under-desk pedestal with lockable drawer moves freely on 4 swivel casters
Cable managementDesk grommets route power and data cables from work surface to floor
Modular assemblyKnock-down steel frame connects to pre-finished panels for reconfigurable layout
Knee accessOpen central knee bay allows seated leg movement without obstruction
Pedestal positioningMobile pedestal can be repositioned left, right, or fully removed from under desk
Surface durabilityMelamine finish resists daily spills, scratches, and impact from office equipment
Partition ventilationHorizontal slatted vents at top of partitions allow air circulation between work zones
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office areasDivides shared floor space into two semi-private individual work zones
Small business staff work areasProvides dedicated workspace for two employees with integrated personal storage
Startup team workspacesModular structure allows reconfiguration as team size changes
Administrative department officesStandard 750mm desk height supports full-day typing and computer work
Temporary project work zonesMobile pedestals and modular frames can be disassembled and moved quickly
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements, applicable to work surfaces
EN 1335-1:2020Office furniture ergonomic dimensions for seated work, applicable to desk height
EN 1022:2018Furniture seating stability requirements for chair compatibility at workstation
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products safety and durability standard for commercial office workstations
ANSI/BIFMA X5.9-2019Storage units performance standard applicable to mobile pedestals
ANSI/BIFMA X7.1-2020Formaldehyde emission standard for low-emitting office furniture components
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to desk and pedestal panels
GB/T 3325-2017Metal furniture general technical requirements, applicable to steel partition frames
GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable to particleboard components
GB/T 4897-2015Particleboard specification for furniture grade substrate material
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desk and pedestal panels;
2. GB/T 3325-2017:Metal furniture general technical requirements, applicable to steel partition frames;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable to particleboard components;
4. GB/T 4897-2015:Particleboard specification for furniture grade substrate material;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CUB-L2-2816-110

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CUB-L2-2816-110

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-L2-2816-110打开导出工具

页面快速操作

发布采购询价

产品描述

This 2-Person L-Shaped Office Cubicle Workstation presents a cohesive modern L-shaped layout designed to seat two users in a compact, organized footprint. Visually, it pairs light oak finished lower modesty panels with soft sage green fabric upper privacy panels, paired with neutral powder-coated metal framing for a polished, professional aesthetic that blends easily with most office design palettes. The configuration delivers separate 3-sided partitioned zones for each seat, with partition panels rising above the desk surface to block direct line of sight between adjacent users without creating a fully enclosed, claustrophobic feel. Constructed for long-term office use, the workstation features work surfaces built from E1 grade particleboard substrate with a thermally fused melamine laminate top, finished with thick PVC edge trim to protect against daily wear. Partition frames are made from powder-coated steel tube, paired with fire-retardant fabric upper panels and matching melamine lower modesty panels. Each workstation includes two mobile wood-grain storage pedestals, constructed from melamine-faced particleboard with zinc alloy drawer hardware and black nylon swivel casters for smooth movement. Practical functionality is embedded across the design: desk grommets support clean cable routing for power and data cords, the open central knee bay delivers unobstructed leg movement for seated users, and each rolling pedestal includes a lockable drawer that can be positioned to the left or right of a seat, or removed entirely to suit user preference. The melamine work surface resists everyday spills, scratches, and impact from standard office equipment, while the knock-down modular frame supports straightforward reconfiguration as workspace needs shift. This workstation is well suited for open plan office floors to carve out semi-private work zones, small business staff areas, startup team spaces, administrative department offices, and temporary project work zones. Its standard work surface height supports comfortable full-day computer and typing work, while its modular design allows teams to adjust layouts as headcount or project needs change. For procurement planning, note that each set ships in two cartons, with an assembly time of 40 minutes per unit. Teams reconfiguring spaces regularly will benefit from the design’s easy disassembly and mobility, while the 10-year warranty offers long-term value for high-traffic work environments. Consider access pathways for delivery, as the packaged units have fixed gross weight and volume that require standard commercial delivery handling.
