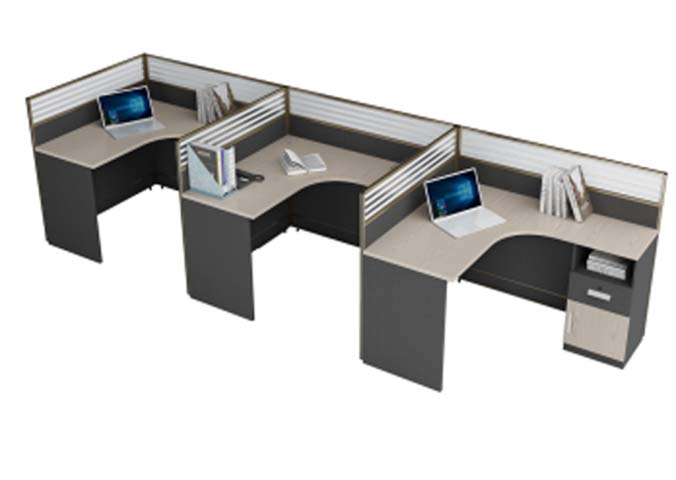

3-Person L-Shaped Modular Office Cubicle Workstation with Dividers and Storage Specifications

CUB-3P-L1800

代码:WTZXJSV1
获取供应商报价
2026-08-13 16:50人气: 58
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CUB-3P-L1800

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (W x D x H)4200 x 2400 x 1100 mm
Partition panel total height above floor1100 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total workstation net weight220 kg
Work surface uniform static load capacity per seat100 kg
Designed occupancy3 users
Partition panel sound transmission class (STC) rating reference20
Work surface wear resistance rating2000 revolutions
Design service life under daily office use8 years
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface substrate18mm thick E1 grade particleboard
Work surface finishLight oak grain melamine laminate
Support panels and cabinet bodiesDark gray melamine-faced particleboard
Lower divider panel coveringDark gray woven fabric wrap over MDF core
Upper privacy screen slatsWhite frosted acrylic horizontal strips
Partition support framing1.2mm thick powder-coated steel internal frame
Desk edge treatment2mm thick PVC edge banding on all exposed panel edges
Storage cabinet door and drawer frontsTwo-tone melamine matching desk and panel finishes
Drawer hardwareSteel ball-bearing drawer slides with integral lock
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Workspace divisionSemi-private seated separation with 1100mm high panels
Integrated storageRightmost station fitted with 1 lockable drawer and 1 storage cabinet
Cable management accessDedicated cable routing gap between work surface and modesty panel
Leg access designCurved cutout at each seating position for unobstructed chair entry
Modular reconfigurationPanelized connection system supports layout rearrangement
Modesty panelFull-height solid panel at rear of knee opening to block leg visibility
Desktop storage spaceClear flat surface area for monitor, laptop, and document placement
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office departmentsProvides 3 individual semi-private workspaces to reduce cross-staff distraction
Small business office layoutsCompact 3-person footprint fits 15sqm open office floor space
Call center or back-office operationsPartition height supports screen privacy while allowing supervisor visibility
Temporary project team work areasModular design allows disassembly and reconfiguration for changing team sizes
Startup open workspacesNeutral two-tone finish matches most modern office interior design schemes
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-2:2002+A1:2016Office worktables safety and strength requirements
EN 1335-1:2020Office furniture ergonomic dimensional reference for workstations
EN 1023-2:2000Storage furniture safety and strength requirements for cabinets
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

北美市场选型与验收ANSI/BIFMA X5.5 办公桌及桌类产品
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to panel components
GB/T 3327-2016Office desk dimensional and stability requirements
GB 18580-2017Formaldehyde emission limits for wood-based panels, E1 grade requirement
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to panel components;
2. GB/T 3327-2016:Office desk dimensional and stability requirements;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, E1 grade requirement;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CUB-3P-L1800

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CUB-3P-L1800

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-3P-L1800打开导出工具

页面快速操作

发布采购询价

产品描述

The 3-Person L-Shaped Modular Office Cubicle Workstation with Dividers and Storage, model CUB-3P-L180, is an unbranded modular panel system tailored for flexible office environments. Presented in a coordinated two-tone finish that pairs light oak grain melamine work surfaces with dark gray melamine support and storage components, the unit features a distinct L-shaped layout with a clean, professional aesthetic. Semi-private separation between seats is delivered via 1100mm tall partitions, which combine dark gray woven fabric-wrapped lower panels over MDF cores, white frosted acrylic upper slats, and internal 1.2mm thick powder-coated steel support frames for stable, open-yet-separated work zones. Built for consistent daily office use, the workstation uses 18mm E1 grade particleboard substrates clad in melamine laminate for all work surfaces and cabinet bodies, with 2mm thick PVC edge banding protecting every exposed panel edge. Work surfaces measure 50mm thick, supported by 80mm main steel support sections with 2mm metal walls, delivering a 150kg uniform distributed top static load and 100kg per-seat uniform static work surface capacity, with a 2000-revolution wear resistance rating. All work surface edges are smoothly finished, and a curved cutout at each seating position ensures unobstructed chair entry, with 680mm high and 900mm wide knee clearance per main seat, paired with full-height solid modesty panels to block leg visibility. Integrated cable management includes 80mm diameter cable openings, 120mm deep cable trays, and a dedicated routing gap between work surfaces and modesty panels to keep cords organized. The rightmost station includes a lockable drawer on steel ball-bearing slides and a matching storage cabinet, while the panelized connection system supports easy layout rearrangement. The partitions carry an STC 20 sound transmission reference, and the unit is engineered for an 8-year design service life under daily office use, supporting three dedicated users. This workstation suits open-plan office departments, small business offices fitting a 15sqm footprint, call center and back-office operations where screen privacy and supervisor visibility are both required, temporary project team zones, and startup workspaces, as its neutral finish aligns with most modern office interiors. Procurement teams should note the unit ships in multiple cartons, requires 40 minutes of assembly per set, and carries a 220kg net weight, with a total packaged volume of 1 cubic meter per set. The modular panel design allows future reconfiguration to adapt to shifting team sizes without full furniture replacement.
