Single-Person L-Shaped Office Workstation Cubicle with Mobile Pedestal Specifications

WS-L12-MP01

代码:XHD0CEV1
获取供应商报价
2026-08-21 17:16人气: 29
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-L12-MP01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1500 x 1500 x 1200 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total unit weight125 kg
Worktop static load capacity100 kg
Maximum recommended user weight for station use150 kg
Mobile pedestal caster load rating60 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement WarrantyStructure 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Worktop surface25mm melamine-faced particleboard
Partition frame1.2mm thick powder-coated aluminum alloy
Partition infill panelsFabric-faced MDF core panels
Storage pedestal cabinet body18mm melamine-faced particleboard
Pedestal drawer and door lockZinc alloy keyed cam lock
Desk support bracketChrome-plated steel pedestal support
Partition leveling glidesNylon base adjustable steel glides
Pedestal castersNylon swivel casters
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular partition assemblyAluminum frame with slot-in panels
Cable management systemPre-cut desk grommet with under-desk cable channel
Lockable storage pedestal1 top lockable drawer + 1 lower door compartment
Adjustable partition leveling30mm height-adjustable glides on all frame feet
Mobile pedestal function4 swivel casters (2 locking) on pedestal
Privacy screening1100mm high partition panels
Detachable side work shelfFixed side shelf on outer partition edge
Glass document holder slotSmall clear acrylic slot on right partition
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office spacesProvides individual work zones in open floor plans to reduce cross-distraction
Small business administrative officesAll-in-one workstation with storage for dedicated staff workspaces
Call center and customer service areasConfigurable into multi-seat rows for high-density seating layouts
Temporary project team spacesModular construction allows reconfiguration as team sizes change
Government and institutional officesDurable construction meets high-traffic daily use requirements
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-2:2016Office work tables - Safety and strength requirements
EN 1335-2:2009Office work chairs - Safety requirements
EN 1023-2:2000Office furniture - Partitions - Safety requirements
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing referenceRecommended references: ANSI/BIFMA X5.5
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture
GB/T 35607-2017Green product assessment for furniture
GB 28007-2011General technical requirements for office furniture partitions
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture;
2. GB/T 35607-2017:Green product assessment for furniture;
3. GB 28007-2011:General technical requirements for office furniture partitions;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-L12-MP01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-L12-MP01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-L12-MP01打开导出工具

页面快速操作

发布采购询价

产品描述

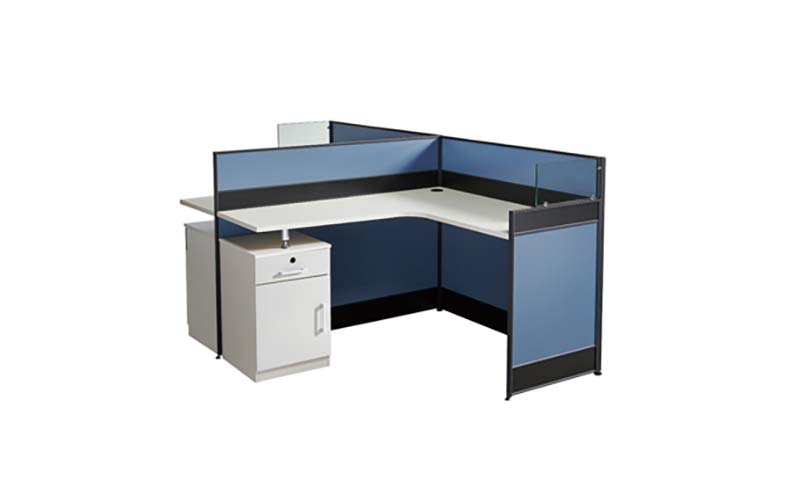

The Single-Person L-Shaped Office Workstation Cubicle with Mobile Pedestal (model WS-L12-MP01) is an unbranded modular office cubicle workstation designed to deliver functional, private individual work zones across a range of professional settings. Visually, the unit features a crisp L-shaped worktop layout paired with tall fabric partition panels that wrap the core work area to create a defined, distraction-minimized personal space, with a fixed side shelf mounted along the outer partition edge for additional surface access. The structure sits on adjustable leveling glides fitted to each partition frame foot, ensuring stable placement on uneven flooring, while the included mobile pedestal tucks neatly beneath the work surface to preserve clear knee room for the user. Constructed for consistent daily use, the workstation combines durable, purpose-selected materials: work surfaces use melamine-faced particleboard for a smooth, easy-to-clean finish, partition frames are built from powder-coated aluminum alloy holding slot-in fabric-faced MDF infill panels, and all structural connections rely on steel hardware and chrome-plated steel support brackets. The mobile storage pedestal uses melamine-faced particleboard for its cabinet body, sits on nylon swivel casters (two of which lock for secure positioning when stationary), and is fitted with a zinc alloy keyed cam lock to secure stored contents. Additional build details include nylon base adjustable steel glides on partitions, and robust support sections for desk stability. Core practical functions support seamless daily work: the integrated cable management system includes a pre-cut desk grommet and under-desk cable channel to keep power and data cords organized and out of sight, the lockable pedestal offers one top lockable drawer and one lower door compartment for personal and work item storage, and the modular partition assembly allows straightforward reconfiguration as space needs evolve. The partition panels deliver effective privacy screening for focused work, while the fixed side shelf holds frequently accessed items within easy reach. This workstation is well suited for open-plan office spaces, where it creates discrete individual work zones to reduce cross-distraction between adjacent staff. It also fits small business administrative offices as an all-in-one, storage-integrated workspace for dedicated staff, works effectively in call center and customer service areas where units can be arranged into multi-seat rows for high-density layouts, adapts to temporary project team spaces thanks to its reconfigurable modular build, and holds up to the high-traffic daily use demands of government and institutional offices. For procurement planning, note that each unit ships across multiple cartons, with a reference assembly time per set for on-site setup teams. Orders can plan for packaged volume and weight allocations to align with delivery and storage logistics, and the modular design supports bulk deployment with consistent layout alignment across large floor plans. The unit’s mixed material build supports long-term use in high-turnover work environments without compromising core functionality.
