2-Person Linear Modular Office Workstation with Frosted Glass Partitions and 3-Drawer Locking Pedestals Specifications

OWS-LIN2-GLS-3DR

代码:XUSVZ2V1
获取供应商报价
2026-09-04 10:50人气: 11
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OWS-LIN2-GLS-3DR

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall unit dimensions2700 x 1400 x 1200 mm
Individual work surface size1200 x 600 mm per seated position
Work surface height from floor760 mm
Knee clearance height under desk650 mm
Work surface thickness25 mm
Frosted glass partition height1050 mm
Partition frame and glass thickness40 mm
PVC edge banding thickness2 mm
Metal support frame wall thickness1.5 mm
Cable grommet diameter60 mm
3-drawer pedestal dimensions400 x 500 x 650 mm
Adjustable foot height adjustment range15 mm
Clearance between partition dividers600 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Work surface static uniform load capacity100 kg
Drawer slide operational cycle rating50000 cycles
Pedestal central lock operational cycle rating10000 cycles
Recommended maximum user weight per work position136 kg
Work surface abrasion resistance rating2000 revolutions
Formaldehyde emission level for panel substrates0.05 mg/m³
Product net weight99 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface substrateE1 grade particleboard with light wood melamine laminate
Work surface edging2mm heat-fused PVC edge banding
Privacy partition upper panel5mm frosted semi-tempered glass
Partition and desk support framePowder-coated black cold-rolled steel
Pedestal drawer panels18mm melamine-faced particleboard with matching finish
Drawer hardwareZinc-plated steel 3-section silent ball-bearing slides
Drawer pulls and locksBrushed chrome metal handles with keyed central pedestal lock
Leveling feetReinforced nylon with adjustable steel threaded insert
Included task chair upholsteryBreathable black mesh back with fabric seat
Included visitor chair frameChrome-plated cantilever steel tube frame
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Workspace divisionFrosted glass half-height partitions separate 2 individual work bays
Integrated storage3-drawer lockable pedestal per position for office supplies and files
Cable managementCircular desktop cable grommet routes power and data wires under the work surface
Floor levelingAdjustable feet on all base corners compensate for uneven flooring
Modular connectivityPre-drilled frame connection points allow expansion to longer multi-seat runs
Drawer operation3-section full-extension slides allow complete access to rear drawer contents
Seating compatibilityStandard 750mm knee clearance accommodates all standard office task and visitor chairs
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office staff areasProvides divided individual workspaces for administrative and clerical staff
Small business startup officesCompact 2-person layout fits limited floor space with integrated storage
Call center and customer support zonesFrosted partitions reduce distraction while allowing team visibility
Government and enterprise office procurementMeets standard commercial office furniture durability and emission requirements
Temporary and project-based workspacesModular design allows reconfiguration as team size changes
Reception back-office areasIntegrated storage keeps office supplies organized out of customer view
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements for desk structure and load capacity
EN 527-2:2016Office worktables dimensional, mechanical and durability performance requirements
EN 1335-1:2020Office chair dimensional and safety requirements for included task seating
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products safety and durability performance standard for commercial office use
ANSI/BIFMA X5.1-2017Office chairs safety and performance standard for included task and visitor seating
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to desk panels and cabinet components
GB/T 3325-2017Safety and performance requirements for metal furniture, applicable to steel support frames
GB 18580-2017Formaldehyde emission limits for wood-based panels, minimum E1 grade requirement for substrates
GB/T 4897-2015Performance requirements for particleboard substrates used in furniture construction
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desk panels and cabinet components;
2. GB/T 3325-2017:Safety and performance requirements for metal furniture, applicable to steel support frames;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, minimum E1 grade requirement for substrates;
4. GB/T 4897-2015:Performance requirements for particleboard substrates used in furniture construction;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OWS-LIN2-GLS-3DR

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OWS-LIN2-GLS-3DR

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OWS-LIN2-GLS-3DR打开导出工具

页面快速操作

发布采购询价

产品描述

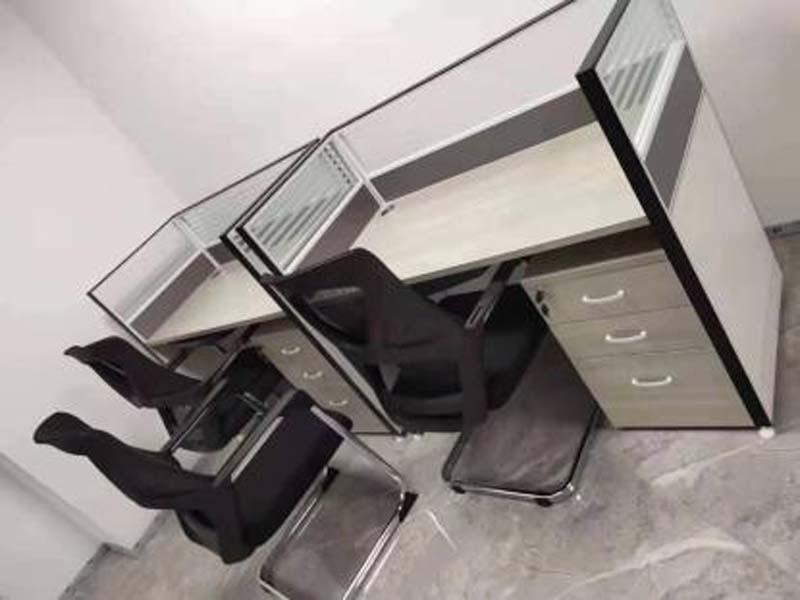

The KANAITE model OWS-LIN2-GLS-3DR is a 2-person linear modular office workstation designed to balance collaborative visibility and individual privacy in work environments. Arranged in a clean linear layout, the unit features two distinct individual work bays separated by a half-height frosted glass partition that sits above the work surface. The desk features a light wood finished work surface supported by a matte black powder-coated metal frame, delivering a streamlined, professional aesthetic that fits contemporary office design schemes. The workstation is built with durable, office-grade materials. Its work surface uses E1 grade particleboard topped with light wood melamine laminate, finished with heat-fused PVC edge banding to resist daily wear. The privacy partition uses frosted semi-tempered glass set within a matching black metal frame, with a frame constructed from powder-coated cold-rolled steel for structural stability. Each work position includes a matching 3-drawer locking pedestal built from melamine-faced particleboard, fitted with zinc-plated steel full-extension ball-bearing drawer slides, brushed chrome metal pulls, and a keyed central lock for secure storage. Reinforced nylon leveling feet with adjustable steel inserts anchor the base across all corners. Functional details support seamless daily office use. Each seat position has an independent 3-drawer lockable pedestal for storing office supplies and confidential files, with full-extension slides enabling unobstructed access to items stored at the rear of drawers. Circular cable grommets on each work surface route power and data cords beneath the desk to reduce surface clutter, while pre-drilled connection points on the frame allow teams to expand the workstation into longer multi-seat runs as staffing needs evolve. Adjustable feet compensate for uneven flooring to keep work surfaces stable, and the standard work surface height accommodates most standard office task and visitor chairs. This workstation is well suited for open-plan office staff zones, small startup offices with limited floor space, call center and customer support areas where reduced distraction is needed, reception back-of-house spaces, temporary project-based work zones, and standard government or enterprise office fit-outs. When planning procurement, note that each unit ships across multiple cartons, requires on-site assembly, and supports modular expansion to align with phased workspace growth. The low formaldehyde emission level of panel substrates meets standard commercial indoor air quality expectations for occupied office spaces, and the integrated storage eliminates the need for separate secondary filing units for individual work positions. An included task chair with breathable black mesh back and fabric seat is provided per position to support out-of-the-box workspace setup.
