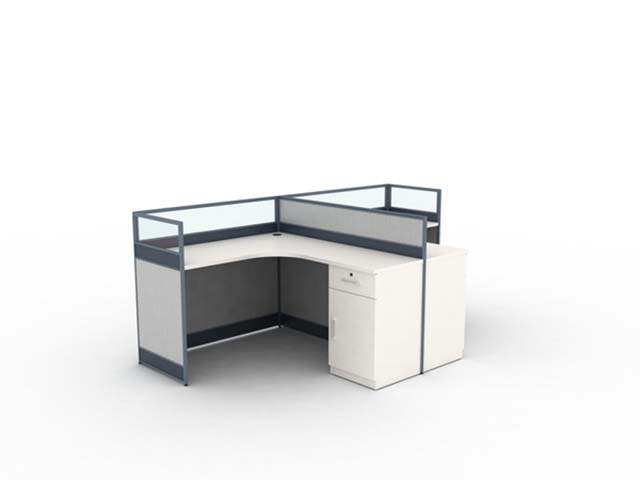

Single-Person L-Shaped Glass Partition Cubicle Workstation Desk with Integrated Lockable Storage Specifications

LWS-G150-1D1C

代码:YD22PKV1
获取供应商报价
2026-08-21 15:25人气: 25
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

LWS-G150-1D1C

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint1500 x 1500 mm
Work surface height750 mm
Partition panel total height1200 mm
Work surface thickness25 mm
PVC edge banding thickness2 mm
Storage pedestal dimensions400 x 550 x 725 mm
Knee well clearance height680 mm
Cable grommet diameter60 mm
Partition panel thickness40 mm
Tempered glass partition thickness5 mm
Elevated rear shelf depth250 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Work surface uniform static load80 kg
Lockable drawer static load15 kg
Drawer slide open/close cycle rating50000 cycles
Net weight (complete unit)65 kg
Partition sound dampening rating25 dB
Recommended maximum user weight capacity120 kg
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surfaceE1-grade melamine laminated particleboard, 25mm thick, 2mm PVC rounded edge
Partition upper panels5mm thick semi-transparent tempered safety glass, frosted lower section, clear upper section
Partition frame1.2mm thick powder-coated gray aluminum alloy, rounded safety corners
Storage cabinet carcassE1-grade melamine laminated engineered wood, matching white finish
Drawer slides3-section full-extension silent ball-bearing steel slides
Lock mechanismBrass-cored keyed linked lock for drawer and cabinet door
Underside modesty panel18mm thick melamine panel, dark gray finish
Leveling feet15mm diameter adjustable nylon glides, 10mm adjustment range
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Privacy partitionPartial-height L-shaped panels block direct line of sight between adjacent workstations
Integrated storageRight-side fixed pedestal with 1 lockable drawer and 1 hinged cabinet door
Cable management60mm circular grommet at inner desk corner routes cables from work surface to under-desk area
Elevated rear shelfRaised fixed shelf along return section partition holds small office items or peripherals
Floor levelingAdjustable nylon glides at partition and cabinet base compensate for uneven office floors
Modular connectivityPartition frame is compatible with adjacent cubicle panels for multi-station cluster layouts
Drawer operationFull-extension ball-bearing slides allow full access to drawer interior without binding
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office workstationsSingle-person cubicle layout for corporate admin, customer service or back-office teams
Government and institutional officesDurable construction meets public procurement furniture requirements for public sector workspaces
Small business office spacesCompact L-shaped footprint fits small office floor plans while providing dedicated work and storage space
Call center and shared workspace environmentsPartial-height partitions reduce cross-talk noise without blocking overhead light or supervision
Startup and co-working spacesWhite and gray neutral finish matches modern office decor, supports reconfigurable layout changes
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-2:2002+A1:2019Office worktables safety and strength requirements for commercial workstations
EN 12521:2015Furniture strength, durability and safety requirements for non-domestic seating and tables
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

北美市场选型与验收ANSI/BIFMA X5.5 办公桌及桌类产品
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB 18580-2017Formaldehyde emission limit ≤0.124mg/m³ for engineered wood panels used in indoor office furniture
GB/T 3324-2017General technical requirements for wooden office furniture, including dimensional stability and edge strength
GB/T 10357.1-2013Desk static load and durability test methods for furniture mechanical performance testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB 18580-2017:Formaldehyde emission limit ≤0.124mg/m³ for engineered wood panels used in indoor office furniture;
2. GB/T 3324-2017:General technical requirements for wooden office furniture, including dimensional stability and edge strength;
3. GB/T 10357.1-2013:Desk static load and durability test methods for furniture mechanical performance testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · LWS-G150-1D1C

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · LWS-G150-1D1C

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · LWS-G150-1D1C打开导出工具

页面快速操作

发布采购询价

产品描述

This single-person L-shaped glass partition cubicle workstation desk presents a streamlined modern profile, defined by a cohesive white and gray neutral finish that aligns with contemporary interior schemes. Its partial-height L-shaped privacy partitions form a dedicated personal work zone, with semi-transparent panels that block direct cross-station line of sight while preserving overhead light penetration and open sightlines for team supervision. The layout places a fixed storage pedestal on the right side of the work surface, paired with a raised fixed shelf along the return section’s partition to keep frequently used items within easy reach, without encroaching on primary work area. The desk’s construction pairs durable, code-compliant materials tailored for high-traffic use: the 25mm thick E1-grade melamine laminated particleboard work surface features 2mm rounded PVC edge banding for wear resistance, supported by a powder-coated metal frame. The partition system uses 1.2mm thick powder-coated gray aluminum frames with rounded safety corners, holding 5mm tempered safety glass panels with a frosted lower section and clear upper section to balance privacy and openness. The integrated storage cabinet uses matching E1-grade engineered wood with a white finish, fitted with 3-section full-extension silent ball-bearing steel drawer slides, a brass-cored keyed linked lock that secures both the drawer and cabinet door, and an 18mm dark gray melamine modesty panel beneath the work surface. Adjustable nylon leveling glides at the base of the partition and cabinet compensate for uneven flooring, while 60mm circular cable grommets at the inner desk corner enable tidy cable routing from the work surface to the under-desk area. The partition frame supports modular connection to adjacent cubicle panels, allowing seamless expansion into multi-station cluster layouts as space needs evolve. This workstation suits a broad range of commercial environments: it fits compact small office floor plans and startup or co-working spaces that demand reconfigurable layouts, delivers appropriate noise reduction and sightline separation for open-plan corporate admin, customer service, back-office and call center teams, and meets durability expectations for government and institutional public sector workspaces. Procurement teams should note that each unit ships in two cartons, requires on-site assembly, and features a modular design that supports long-term layout flexibility to adapt to changing workspace needs. The linked lockable storage eliminates the need for separate under-desk filing units, reducing additional furnishing costs for tight project budgets.
