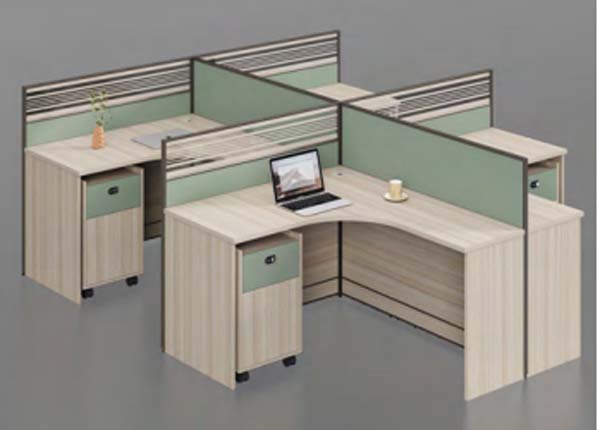

2-Person Cross L-Shaped Modular Office Cubicle Workstation with Mobile Pedestals Specifications

CUB-2P-CRS-L1600-SG

代码:YVS9EFV1
获取供应商报价
2026-09-01 15:48人气: 11
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CUB-2P-CRS-L1600-SG

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint3100 x 1600 x 1200 mm
Worksurface height from floor750 mm
Per-seat L-shaped worksurface length (each arm)1600 mm
Per-seat worksurface depth750 mm
Worksurface thickness25 mm
Partition panel total height above floor1140 mm
Partition panel thickness60 mm
Seated knee clearance height under worksurface670 mm
Knee clearance width per seat700 mm
Mobile pedestal overall dimensions420 x 500 x 650 mm
Pedestal caster diameter50 mm
Partition upper slatted trim height120 mm
PVC edge banding thickness2 mm
Cable grommet diameter60 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total assembled product weight160 kg
Per worksurface static point load capacity91 kg
Recommended maximum user weight per station136 kg
Finish surface abrasion resistance2000 cycles
Surface stain resistance ratingGrade 4
Product warranty period5 years
Available color finish options30+
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Worksurface coreE1 grade low-formaldehyde melamine-faced particleboard
Worksurface finishLight oak woodgrain thermally fused melamine laminate
Edge protection2mm thick PVC edge banding on all worktop and cabinet edges
Partition frameDark powder-coated steel rectangular tube framing
Partition panel inserts (lower section)Sage green fabric-covered hardboard core
Partition upper trimLight woodgrain slatted decorative hardboard panel
Mobile pedestal cabinet bodyLight oak melamine-faced particleboard matching worksurface
Pedestal drawer frontsSage green melamine-faced particleboard matching partition inserts
Drawer locksKeyed cam locks for each mobile pedestal
Pedestal castersBlack hard nylon swivel casters (two locking, two non-locking)
Modular connecting hardwareZinc-plated steel brackets and screws for panel-to-frame connection
Cable management grommetsBlack ABS plastic cable access ports at desk corners
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seating capacity2 individual seated office work positions
Privacy separation1140mm high low dividers block seated line of sight between adjacent users
Pedestal mobilityLockable swivel casters allow pedestals to be repositioned under desks or removed
Drawer storageEach pedestal includes 1 shallow stationery drawer and 1 deep hanging file drawer
Drawer securityKeyed lock secures all pedestal drawers to protect personal or work documents
Cable managementCorner grommets route monitor, power and data cables below worksurface
Modular reconfigurationSteel frame connectors allow partitions to be disassembled or rearranged into other layouts
Knee well accessCurved L-shaped corner creates 700mm wide open knee space for each user
Assembly typeKnock-down flat-pack assembly with cam lock and bolt hardware
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office spacesSuited for 2-person employee work zones in small to medium business offices
Shared startup workspacesDurable commercial-grade construction supports daily high-frequency use in co-working environments
Temporary project team zonesModular knock-down design allows quick installation and reconfiguration for short-term teams
Small branch office fit-outsCompact 3.1m x 1.6m footprint fits efficiently in limited floor space without sacrificing work area
Call center and back office operationsLow partitions allow supervisor visibility while reducing cross-talk between adjacent agents
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011+A1:2019Office worktables safety and strength requirements, applicable to worksurface structural performance
EN 1335-1:2020Office furniture office chairs dimensional guidelines, informs knee clearance ergonomics
EN 14073-2:2004Office storage furniture safety requirements, applicable to mobile drawer pedestals
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products performance standard, applies to load and durability testing
ANSI/BIFMA X5.9-2019Storage units performance standard, applies to mobile pedestal and drawer testing
ANSI/BIFMA e3-2019eFurniture sustainability standard, applicable for material emission and durability credits
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to desktops and cabinet components
GB/T 3327-2018Performance requirements for office desks and workstations, applies to structural stability testing
GB 18584-2001Indoor decoration material formaldehyde emission limit for wooden furniture, applies to board substrates
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desktops and cabinet components;
2. GB/T 3327-2018:Performance requirements for office desks and workstations, applies to structural stability testing;
3. GB 18584-2001:Indoor decoration material formaldehyde emission limit for wooden furniture, applies to board substrates;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CUB-2P-CRS-L1600-SG

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CUB-2P-CRS-L1600-SG

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-2P-CRS-L1600-SG打开导出工具

页面快速操作

发布采购询价

产品描述

The Fanshidun 2-Person Cross L-Shaped Modular Office Cubicle Workstation (Model CUB-2P-CRS-L1600-SG) features a cross-aligned dual L-shaped layout oriented around a central shared corner, creating two clearly defined individual work positions with cohesive, complementary visual detailing. Light oak woodgrain worksurfaces pair with sage green lower partition panels and matching mobile pedestal drawer fronts, accented by dark powder-coated steel partition framing and light woodgrain slatted upper partition trim for a warm, contemporary office aesthetic. Constructed for durable commercial use, worksurfaces use E1 grade low-formaldehyde melamine-faced particleboard with a 25mm thick core, topped with thermally fused light oak melamine laminate and protected by 2mm thick PVC edge banding on all worktop and cabinet edges to prevent impact damage. Partitions are built from rectangular steel tube framing, with lower inserts of fabric-covered hardboard and decorative upper slatted hardboard panels, rising 1140mm above finished floor. Each accompanying mobile pedestal uses light oak melamine-faced particleboard matched to worksurfaces, with sage green drawer fronts and keyed cam locks to secure contents. Functional design details address core office workflow needs: the 1140mm partition height blocks direct seated line of sight between adjacent users to reduce distraction, while preserving unobstructed visibility for supervisory checks. Corner cable management grommets route power, data, and monitor cords below the worksurface to reduce desktop clutter. Each mobile pedestal sits on lockable swivel casters for flexible repositioning under desks or removal as needed, and holds one shallow stationery drawer and one deep hanging file drawer secured by a single keyed lock. Steel frame connectors enable full disassembly and layout reconfiguration to adapt to changing space needs. Each worksurface supports a 91kg static point load, with rated resistance to 2000 abrasion cycles and a Grade 4 stain resistance rating for easy maintenance; the product carries a 5-year warranty, with more than 30 finish options available for custom specification. This workstation is well suited for small to medium business open-plan 2-person work zones, high-traffic co-working and startup shared spaces, temporary project team areas that require fast setup and reconfiguration, compact small branch office fit-outs where the 3100 x 1600 x 1200mm footprint optimizes limited floor space, and call center or back-office operations where low partitions reduce cross-talk between agents while maintaining supervisor visibility. When specifying this product for procurement, note that each unit ships in two cartons, with a 0.8 cubic meter packaging volume and 120kg packaged gross weight, requiring 40 minutes of assembly time per set. The 750mm worksurface height and 670mm seated knee clearance support standard ergonomic office seating, while the fully assembled 160kg unit offers stable long-term placement.
