PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1600 × 1600 × 1200 mm
Overall footprint dimensions	1600 x 1600 x 1200 mm
Work surface height	750 mm
Work surface thickness	25 mm
Work surface segment depth	600 mm
Knee well clearance height	650 mm
Knee well minimum width	800 mm
Partition panel thickness	60 mm
Solid privacy panel height	900 mm
Vented mesh top screen height	300 mm
Mobile pedestal dimensions	420 x 460 x 650 mm
Caster diameter for mobile pedestal	50 mm
Frame profile width for partitions	30 mm
Side modesty panel height	500 mm
Curved inner corner radius	300 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Total workstation net weight	90 kg
Work surface static load capacity	150 kg
Mobile pedestal drawer static load per drawer	30 kg
Recommended maximum user weight	120 kg
Fabric panel sound transmission class	15 dB
Melamine surface abrasion resistance	2000 cycles
Caster rolling durability cycles	50000 cycles
Frame corrosion resistance service life	10 years
Recommended number of seated users	1
Reference Static Load	150 kg depending on category

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Work surface substrate	25mm E1 grade melamine-faced particleboard
Work surface edge banding	2mm thick PVC edge trim
Partition frame construction	1.2mm thick anodized aluminum alloy profile
Lower partition panel facing	Tackable flame-retardant fabric wrapped over MDF core
Top partition vent section	Perforated steel mesh with white powder coat finish
Modesty panel construction	18mm thick melamine-faced MDF, two-tone beige finish
Mobile pedestal body	0.8mm thick steel frame with melamine drawer fronts
Pedestal lock mechanism	Keyed cam lock with 2 keys per unit
Adjustable leveling feet	Nylon base with steel threaded stem
Pedestal casters	Black nylon swivel casters, 2 with brake locks
Partition connection hardware	Zinc-plated steel bolt connectors for modular assembly
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Modular panel assembly	Bolt-together aluminum frame connectors allow reconfiguration of station layout
Mobile pedestal mobility	Four swivel casters, two with locking brakes, allow repositioning under desk
Drawer lock security	Keyed cam lock secures top drawer for personal office storage
Cable management routing	Concealed raceways inside partition frames route power and data cables
Work surface cable access	80mm diameter plastic grommet at inner corner for cable pass-through
Leveling adjustment	Threaded nylon feet adjust 15mm to compensate for uneven office floors
Privacy screen function	1200mm total partition height blocks seated line of sight between adjacent stations
Tackable panel function	Fabric partition surface accepts push pins for posting notes and documents
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Total packaged gross weight	90 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Open plan office work areas	Provides individual semi-private workspaces for staff in open floor plans
Call center and customer service floors	Vented top dividers maintain airflow while providing personal workspace
Start-up and co-working spaces	Modular construction allows reconfiguration as team sizes change
Government and administrative offices	Neutral two-tone finish matches formal office interior design
Back office data entry teams	Curved L-surface provides space for monitor, laptop and paperwork
Small business staff workstations	Integrated mobile pedestal eliminates need for separate storage furniture

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011	Office work tables, safety and strength requirements for work surfaces
EN 1335-1:2020	Office work chair clearance compatibility for seated workstations
EN 1022:2018	Furniture seating and table stability test methods for structural performance
EN 13986:2004	Wood-based panel performance specifications for melamine-faced boards

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021	Desk products standard for load, stability and durability of work surfaces
ANSI/BIFMA X5.9-2019	Storage units standard for mobile pedestal performance and lock function
ANSI/BIFMA X7.1-2020	Furniture emissions standard for formaldehyde and VOC limits

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to work surfaces and panels
GB/T 3325-2017	Metal office furniture requirements, applicable to aluminum frames and steel pedestal components
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to MDF/particleboard components
GB/T 24821-2009	Office panel workstation system performance requirements for structural stability

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden office furniture, applicable to work surfaces and panels；
2. GB/T 3325-2017：Metal office furniture requirements, applicable to aluminum frames and steel pedestal components；
3. GB 18580-2017：Formaldehyde emission limits for wood-based panels, applicable to MDF/particleboard components；
4. GB/T 24821-2009：Office panel workstation system performance requirements for structural stability；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CUB-LC1600-MP

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CUB-LC1600-MP

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-LC1600-MP打开导出工具

页面快速操作

发布采购询价

产品描述

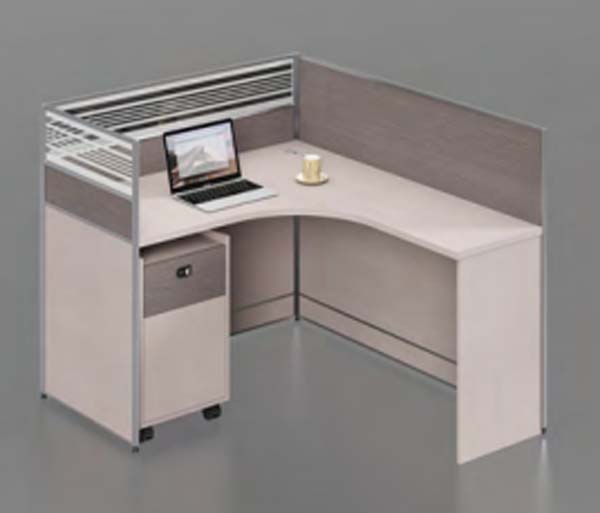

The Single-Person L-Shaped Curved Corner Office Cubicle Workstation with Mobile Pedestal, model CUB-LC1600-MP, is an unbranded semi-private workspace solution designed for functional, flexible office deployment. Its two-tone beige-grey finish pairs a curved L-shaped work surface with modular partition structures, forming a compact corner layout that occupies a 1600 x 1600 x 1200 mm footprint. The 25mm thick melamine-faced work surface sits at a standard 750mm desk height, with 600mm deep surface segments, 650mm of knee well clearance, and 800mm minimum knee well width to support comfortable seated positioning. Partition structures include 60mm thick panels, with 900mm tall solid fabric-covered lower sections and a perforated mesh vented top divider that reaches the full 1200mm partition height, blocking direct seated line of sight between adjacent workstations. The workstation uses durable, purpose-built materials across all components. The work surface uses E1 grade melamine-faced particleboard with 2mm PVC edge trim, mounted to a frame with 1.2mm thick anodized aluminum alloy partition profiles. Lower privacy panels feature tackable, flame-retardant fabric wrapped around an MDF core, while the top vent section uses white powder-coated perforated steel mesh, and the modesty panel is 18mm thick beige melamine-faced MDF. The included mobile pedestal has a 0.8mm thick steel frame with melamine drawer fronts, fitted with a keyed cam lock that comes with 2 keys, and nylon leveling feet with steel threaded stems to stabilize the unit. The work surface supports 150kg of static load, with each pedestal drawer holding 30kg of static weight, and the casters are rated for 50000 rolling cycles; the fabric panels deliver 15dB of sound transmission reduction, and the melamine surface resists abrasion across 2000 test cycles. Core functional features support convenient daily use: bolt-together aluminum frame connectors allow full layout reconfiguration, while four swivel casters (two with locking brakes) let the mobile pedestal slide smoothly under the desk for flexible storage. Concealed raceways within partition frames route power and data cables, accessed via an 80mm plastic grommet at the inner work surface corner, and adjustable feet compensate for uneven floors with 15mm of vertical adjustment. The locked top drawer secures personal items, while the vented mesh top maintains consistent airflow across work areas. This workstation suits open-plan offices, call center floors, co-working and startup spaces, government administrative offices, back-office data entry teams, and small business staff areas, balancing semi-private space with adaptability for changing team sizes and formal or casual interior schemes. For procurement, note that each unit ships in 2 cartons with a packaged gross weight of 120kg and 0.8m³ packaging volume, requires 40 minutes of assembly per set, and supports a maximum recommended user weight of 120kg, with integrated storage eliminating the need for separate ancillary furniture purchases.

Single-Person L-Shaped Curved Corner Office Cubicle Workstation with Mobile Pedestal Specifications
