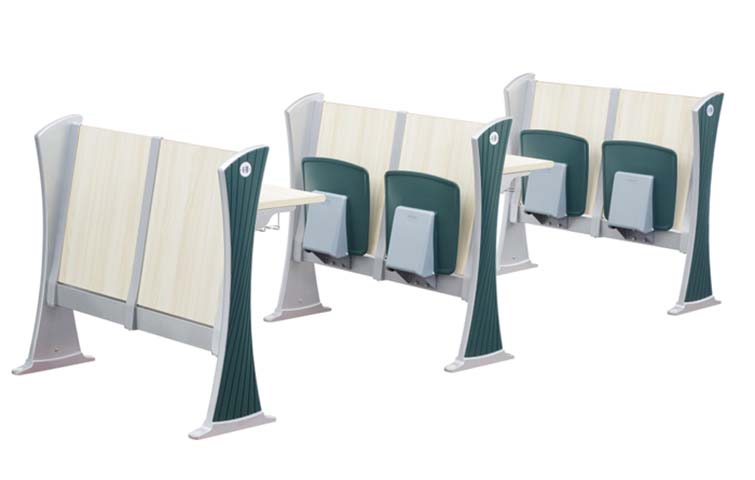

Fixed Link Row Seating with Integrated Writing Desks for Lecture Halls Specifications

LHR-DK2-0925

代码:VDDAN6V1
获取供应商报价
2026-08-24 10:50人气: 43
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

LHR-DK2-0925

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Per-seat center distance525 mm
Seat height above finished floor460 mm
Writing desk height above finished floor760 mm
Writing desk usable size585 x 300 mm
Seat panel usable size450 x 430 mm
Under-seat storage rack usable size430 x 220 x 120 mm
Backrest total height above floor900 mm
Armrest height above finished floor650 mm
Support stand foot plate size355 x 60 x 13 mm
Backrest panel thickness18 mm
Seat panel thickness18 mm
Cross support beam size80 x 40 x 2 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per-seat static load capacity260 kg
Recommended user weight per seat120 kg
Seat return mechanism cycle life100000 cycles
Unit net weight per seat28 kg
Fire-resistant laminate abrasion resistance2000 cycles
Warranty period for structural components5 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
Five-star Base Static Load ReferenceAcceptance target ≥120 kg; chair reference load 150 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

End support standsDie-cast aluminum, 5 mm wall thickness, powder-coated dark green/light gray finish, anti-oxidation treated
Backrest panels18 mm multi-layer hardwood core, light wood grain fire-resistant laminate facing, aluminum top edge trim
Seat panels18 mm multi-layer hardwood core, fire-resistant laminate surface, steel through-bolt connection to return mechanism
Integrated writing desks25 mm E1 grade MDF core, light beige fire-resistant laminate facing, aluminum edge banding
Cross support beams2 mm thick cold-rolled square steel tubing, powder-coated light gray finish, bolted to end stands
Return mechanism coversInjection-molded light gray PP, scratch-resistant matte finish, anti-pinch edge design
Under-seat storage racks4 mm cold-drawn steel wire, powder-coated dark gray finish, welded frame construction
Floor fixing hardwareZinc-plated steel M10 inner hex expansion bolts, concealed plastic end caps
Seat padding30 mm high-density polyurethane foam, 45 kg/m³ density, 40% rebound rate, upholstered in dark green fabric
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat automatic returnGravity-driven hydraulic slow-return mechanism, 90-degree fold-up angle, silent anti-pinch operation
Floor-fixed installationBolted to concrete or raised access floor via pre-drilled base plates, no wobble under normal use
Under-seat storageFlip-down wire rack holds books, bags and personal items, flushes against seat back when not in use
Seat number identificationCircular numbered badge mounted on outer end of each row end stand, for seat assignment
Integrated writing surfaceFixed continuous desk mounted to front row backrest, no folding, stable for writing and device use
Seat separation dividersVertical dividers between adjacent seats prevent cross-interference between users
Cable management hookSmall metal hook under writing desk holds charging cables and headphone cords
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

University tiered lecture hallsFixed row layout with staggered heights for unobstructed sight lines to front podium
Corporate training auditoriumsIntegrated writing surface supports note-taking, laptop use and training material placement
Government and institutional conference hallsNeutral dark green/light wood finish meets formal public space aesthetic requirements
K-12 school multi-purpose hallsDurable construction and fold-up seats support flexible use for assemblies and exams
Continuing education classroom spacesErgonomic seat and desk heights reduce fatigue during long class sessions
Exam hall permanent installationsFixed individual seats and writing surfaces prevent cheating, with under-seat storage for personal items
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1729-1:2015Furniture for educational institutions, safety and strength requirements for seating
EN 1729-2:2015Furniture for educational institutions, functional dimension requirements for desks and chairs
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to wood panel components
GB/T 3976-2014Functional sizes and technical requirements for school desks and chairs, applicable to seat/desk height
GB 18584-2001Limit of harmful substances in wood furniture, applicable to panel and adhesive components
GB/T 24821-2009General technical requirements for public seating, applicable to structural load and durability
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to wood panel components;
2. GB/T 3976-2014:Functional sizes and technical requirements for school desks and chairs, applicable to seat/desk height;
3. GB 18584-2001:Limit of harmful substances in wood furniture, applicable to panel and adhesive components;
4. GB/T 24821-2009:General technical requirements for public seating, applicable to structural load and durability;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · LHR-DK2-0925

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · LHR-DK2-0925

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · LHR-DK2-0925打开导出工具

页面快速操作

发布采购询价

产品描述

This fixed link row seating with integrated writing desks, model LHR-DK925is purpose-built for high-traffic public learning and assembly environments, delivered as an unbranded lecture hall fixed seating solution. Its visual design follows a cohesive, formal aesthetic, with a coordinated palette of dark green upholstery and structural accents paired with light wood grain finishes on backrests, complemented by light gray support components and dark gray under-seat elements. Numbered end panels on each row support straightforward seat assignment, while vertical dividers between adjacent seats create clear, defined personal space for every occupant. The fixed, row-connected layout installs directly to flooring, with staggered height configurations suited to tiered spaces to preserve unobstructed sight lines to a front presentation area. Construction balances robust durability and long-term usability, starting with die-cast aluminum end support stands treated for anti-oxidation and finished in a smooth powder coat. Cross support beams use cold-rolled square steel tubing bolted securely to end stands, with zinc-plated expansion bolts for floor fixing concealed by matching plastic end caps for a clean, finished look. Seat and backrest panels use multi-layer hardwood cores clad in fire-resistant laminate, with aluminum edge trim on backrests and edge banding on writing desks to protect against impact damage. Seat cushions feature high-density polyurethane foam upholstered in dark green fabric, while gravity-driven hydraulic return mechanisms are covered in scratch-resistant, matte injection-molded PP with anti-pinch edges. Under-seat storage uses welded cold-drawn steel wire racks, and all connecting hardware receives a durable powder-coated finish. Writing desks are constructed with an E1 grade MDF core and light beige fire-resistant laminate facing for a smooth, stable work surface. Functional design supports extended, comfortable use for occupants. Seats fold upward via a silent, slow-return mechanism that prevents pinching, and the fixed, continuous writing surface mounted to the back of the preceding row provides stable support for writing, laptop use, and placement of training or course materials. A small metal hook under each desk manages charging cables and headphone cords, while the flip-down under-seat rack stores books, bags, and personal items, sitting flush against the seat back when not in use. The fixed installation resists wobble under normal use, and ergonomic seat, armrest, and desk heights reduce user fatigue during long sessions. This seating is suitable for a range of commercial and institutional spaces, including university tiered lecture halls, corporate training auditoriums, government and institutional conference halls, K-12 multi-purpose halls, continuing education classrooms, and permanent exam hall installations. For procurement, teams should note that structural components carry a 5-year warranty, and the durable material construction stands up to regular high-volume use. Each set ships across two cartons, with on-site assembly required, and the fold-up seat design supports flexible space use for assemblies, exams, and extended training sessions. The neutral, formal finish palette aligns with standard public space design requirements, and individual fixed seat divisions support controlled, separated seating for exam environments.
