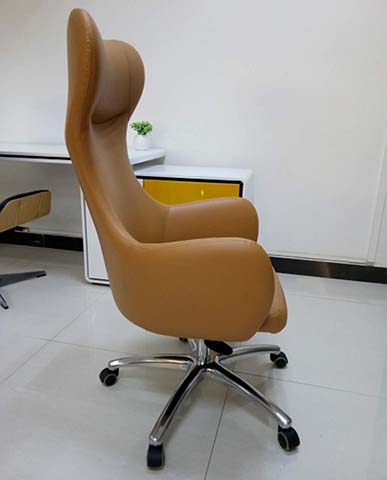

Tan Upholstered High-Back Executive Office Chair with Chrome 5-Star Base Specifications

EXEC-TAN-CHR-001

代码:XM1D52V1
获取供应商报价
2026-08-07 14:51人气: 54
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EXEC-TAN-CHR-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (WxDxH)700 x 750 x 1220 mm
Seat width510 mm
Seat depth500 mm
Seat height adjustment range520 mm
Backrest height730 mm
Backrest width500 mm
Armrest height from seat200 mm
Chrome 5-star base diameter680 mm
Caster diameter50 mm
Seat foam thickness100 mm
Maximum seat height (floor to seat surface)520 mm
Minimum seat height (floor to seat surface)420 mm
Backrest height (seat surface to back top)730 mm
Armrest height from seat surface200 mm
Seat foam core thickness100 mm
Backrest foam core thickness80 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended maximum user weight159 kg
Net product weight21 kg
Swivel rotation360 degrees
Seat foam density45 kg/m³
Foam rebound rate40%
Upholstery abrasion resistance50000 double rubs
Base static load rating1136 kg
Caster rolling durability100000 cycles
Tilt mechanism durability250000 cycles
Backrest static load capacity91 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryTan smooth leather-look polyurethane (PU) faux leather
Integrated armrest upholsteryMatching tan PU faux leather, padded with same foam as seat/back
Seat and back paddingHigh-resilience polyurethane foam
Internal support frame1.5 mm thick welded steel tube frame
5-star basePolished chrome-plated steel
CastersBlack nylon dual-wheel hooded casters
Gas lift cylinderChrome-plated steel Class 3 pneumatic gas lift
Tilt mechanism2.5 mm thick steel butterfly tilt plate
Seam constructionConcealed stitched seams with 8 mm stitch pitch
Back inner support panel12 mm thick molded plywood
Armrest internal support1.2mm thick bent steel inserts molded into the foam and upholstery, attached directly to the seat frame
Underseat dust coverBlack 1mm thick non-woven polypropylene fabric, stapled to the underside of the seat pan
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Pneumatic seat height adjustmentSingle lever under seat activates gas lift to adjust seat height between 520 mm, locking at any position within travel
Backrest tilt functionTilt mechanism allows 12-degree backward recline from upright position, with adjustable tilt tension and single-position upright lock
Smooth rolling mobilityFive dual-wheel casters allow omnidirectional movement across hard tile and low-pile carpet floors, no brake function visible
Integrated fixed armrest supportWrap-around padded armrests are fixed at ergonomic elbow height, providing stable arm support during typing and desk work without adjustment
Contoured lumbar and neck supportHigh-back profile includes built-in curved lumbar contour and integrated headrest bump, providing passive ergonomic support without separate adjustable cushions
Waterfall seat edge designRounded front seat edge reduces pressure on back of thighs during extended seated use
Stable anti-tip designWide 680 mm diameter 5-star base meets standard office chair stability requirements, preventing tipping during normal recline and movement
Smooth omnidirectional mobilityFive dual-wheel nylon casters allow 360-degree rolling movement across hard tile, polished concrete, finished wood and low-pile (up to 6mm pile height) carpet floors, no integrated brake function
Contoured passive ergonomic supportHigh-back profile includes built-in 20mm protruding curved lumbar contour and 30mm raised integrated headrest bump, providing neutral spine support without separate adjustable cushions
Tilt tension adjustmentUnderseat rotary knob adjusts spring tension to match user weight, increasing resistance for heavier users and reducing resistance for lighter users across the 12-degree recline range
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Number of shipping cartons1 carton
Shipping carton dimensions (LxWxH)750 x 650 x 400 mm
Gross shipping weight25 kg
Shipping volume per unit0.195 CBM
Required assembly time30 minutes
20ft GP container loading quantity168 units
40ft HQ container loading quantity410 units
Included hardwareAll required bolts, allen key and assembly instructions included in carton
Included assembly hardwareAll required M8 mounting bolts, 4mm allen key, illustrated step-by-step assembly instructions and warranty card included in carton
Reference Package Count1 set / 2 cartons
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Executive private officeFits premium executive desk setups, providing professional appearance and ergonomic support for managers and senior staff during long workdays
Open-plan office workstationSuitable for upgraded workstations in modern open offices, supporting 8+ hours of daily seated work with comfort and mobility
Home office workspaceWorks for residential home offices, combining stylish contemporary design with functional adjustability for remote work and study use
Formal conference room head seatingAppropriate for head-of-table and presenter seating in formal board and conference rooms, providing a cohesive professional look alongside matching meeting tables and guest chairs
Consulting and client-facing spaceSuitable for client meeting rooms in law, finance or design firms, presenting a polished, high-end appearance that balances comfort and professionalism
Hard floor office environmentsNylon casters are optimized for use on ceramic tile, polished concrete and hard wood floors common in modern office spaces without requiring additional caster upgrades
Open-plan senior workstationSuitable for upgraded workstations in modern open-plan offices for team leads and senior staff, supporting varied task work with swivel, tilt and height adjustment functions
Client-facing professional spacesSuitable for client meeting rooms in law, finance, consulting and design firms, presenting a polished high-end appearance that balances visual warmth and professional credibility
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Suggested European standard for office chair dimensions, defining ergonomic sizing for task and executive office seating
EN 1335-2:2018Suggested European standard for office chair safety requirements, covering structural stability, strength and durability
EN 1335-3:2018Suggested European standard for office chair test methods, to verify structural performance under repeated use
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Suggested North American standard for general-purpose office chairs, covering static load, durability, stability and safety performance requirements for commercial seating
ANSI/BIFMA X5.11-2015Suggested standard for big-and-tall office chairs if rated for over 159 kg user weight, covering enhanced load requirements
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Suggested acceptance standard for office chair dimensional accuracy and stability, applicable for desk-use office seating
GB/T 10357.3-2013Suggested test standard for chair strength and durability, covering static load, impact and fatigue testing for seat, back and armrests
GB 18584-2001Suggested indoor air quality standard for furniture, limiting formaldehyde emission from upholstered furniture components for indoor office use
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Suggested acceptance standard for office chair dimensional accuracy and stability, applicable for desk-use office seating;
2. GB/T 10357.3-2013:Suggested test standard for chair strength and durability, covering static load, impact and fatigue testing for seat, back and armrests;
3. GB 18584-2001:Suggested indoor air quality standard for furniture, limiting formaldehyde emission from upholstered furniture components for indoor office use;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EXEC-TAN-CHR-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EXEC-TAN-CHR-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXEC-TAN-CHR-001打开导出工具

页面快速操作

发布采购询价

产品描述

This high-back executive office chair presents a polished, contemporary profile defined by smooth tan leather-look upholstery paired with a reflective polished chrome five-star base. The integrated design wraps matching tan upholstery around fixed, ergonomically positioned armrests that flow seamlessly from the contoured seat to the tall backrest, with concealed stitched seams creating a neat, tailored visual finish. The high-back silhouette incorporates a molded integrated headrest and defined lumbar contour, creating a streamlined, professional appearance suited to formal and modern work environments alike. Built around a welded steel internal frame with a molded plywood back support panel, the chair uses high-resilience polyurethane foam padding across the seat, back, and armrests, with a thick cushioned seat finished with a rounded waterfall front edge. The chrome-plated steel five-star base is fitted with black nylon dual-wheel casters, and supports a Class 3 pneumatic gas lift for height adjustment, paired with a steel butterfly tilt plate for controlled recline. A non-woven polypropylene dust cover beneath the seat creates a clean, finished under-seat appearance. Functional features support extended daily use: 360-degree swivel rotation, pneumatic seat height adjustment that locks at any position within its travel range, a 12-degree backrest recline with adjustable tension control and upright lock, and omnidirectional caster movement suited to hard tile, polished concrete, finished wood, and low-pile carpet surfaces. The fixed padded armrests sit at a height aligned to neutral elbow positioning for desk work, while the contoured backrest provides passive lumbar and neck support without separate adjustable cushions, and the waterfall seat edge reduces pressure on the back of the thighs during long seated sessions. This chair fits a wide range of professional and residential spaces, including private executive offices, upgraded open-plan workstations for senior staff, home office setups, head-of-table seating in formal conference rooms, and client-facing meeting areas in professional services firms, where its warm tan finish complements neutral and wood-tone decor palettes. For procurement planning, the chair ships in a single flat-pack carton with all required mounting hardware, an allen key, illustrated assembly instructions, and a warranty card, with end-user assembly time of 30 minutes. Container loading s are available for freight quoting, and the caster specification requires no additional upgrades for standard hard floor office environments, supporting efficient bulk ordering for commercial fit-outs.
