PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	4600 × 2750 × 2750 mm
Overall assembled dimensions	4600 x 2750 x 2750 mm
Single rectangular canopy dimensions	2300 x 2750 mm
Central support pole diameter	82 mm
Base footprint overall	1000 x 1000 mm
Undercanopy clearance height	2200 mm
Cantilever arm projection from central pole	2200 mm
Canopy vent diameter per panel	200 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Total shaded coverage area	13 m²
Fully assembled total product weight	195 kg
Recommended static weight capacity for stability	136 kg
Maximum recommended wind speed for safe use	38 km/h
Canopy UV protection factor	UPF 50+
Recommended user seating capacity under shade	8 people
Fabric water resistance rating	300 mm
Frame rust resistance service life	3 years
Single base weight slab dimensions	500 x 500 x 80 mm
Reference Static Load	150 kg depending on category

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Central support pole	1.5 mm thick powder-coated black steel tube
Cantilever support arms	1.2 mm thick powder-coated black steel
Canopy support ribs	0.8 mm thick powder-coated steel, 12 total ribs (6 per canopy)
Canopy fabric	280 GSM solution-dyed beige polyester with PA coating
Canopy stitching	Polyester bonded thread with 8 stitches per inch
Base weight slabs	High-density concrete with gray textured finish
Hardware fasteners	Stainless steel bolts, nuts, and locking pins
Lift mechanism components	Zinc-plated steel crank and gear assembly
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Canopy open/close operation	Side-mounted crank handle with 3:1 gear ratio to raise/lower both canopies
Canopy tilt adjustment	Push-button lock with 3 tilt positions per canopy for sun angle adjustment
360-degree rotation	Foot-pedal actuated rotation to reposition shade over desired area
Wind vent design	Single top air vent per canopy to reduce wind uplift and prevent inversion
Base assembly	Four interlocking weight slabs secured to central crossbar without permanent fixation
Pole disassembly	Two-section pole with push-button quick connection for transport and storage
Canopy lock mechanism	Auto-lock when fully opened to prevent unintended folding during use
Seasonal storage	Canopy removable from frame for cleaning or off-season indoor storage
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Residential patio use	Suitable for backyard patio, deck, or poolside shading for outdoor dining sets
Commercial outdoor seating	Ideal for café, restaurant, or beer garden outdoor seating zones
Event rental application	Suitable for outdoor weddings, markets, and temporary event shading
Open-air lounge areas	Works over outdoor sectional lounge sets for continuous shade across large seating groups
Coastal environment use	Stainless steel hardware and powder-coated frame resist salt air corrosion
Seasonal outdoor installation	Designed for temporary seasonal set-up with easy disassembly for winter storage

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Outdoor furniture mechanical safety	EN 581:2015

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Outdoor furniture structural safety	GB 28478
Textile UV protection performance	GB/T 18830

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Outdoor furniture structural safety：GB 28478；
2. Textile UV protection performance：GB/T 18830；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · DSC-PU-4600-BGE

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · DSC-PU-4600-BGE

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · DSC-PU-4600-BGE打开导出工具

页面快速操作

发布采购询价

产品描述

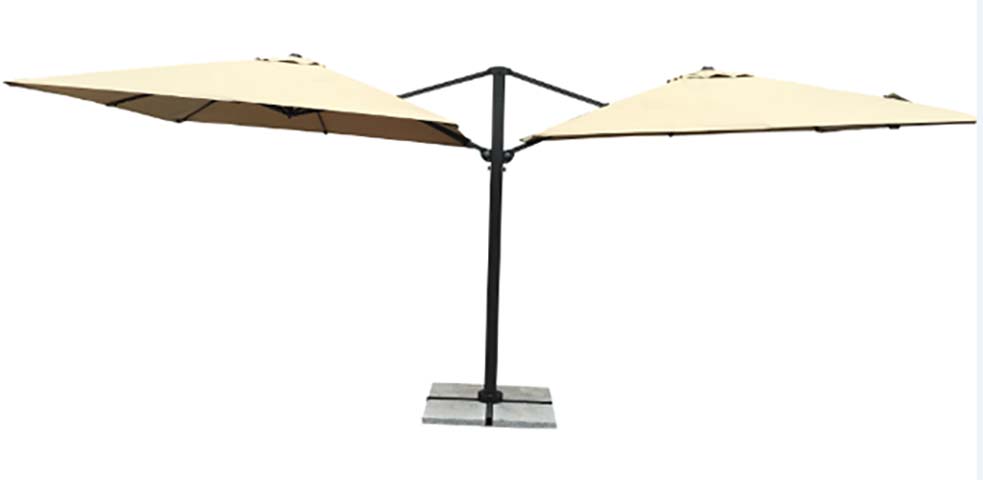

This outdoor double-sided cantilever patio umbrella features a cohesive, functional design anchored by a central vertical support, with two rectangular beige canopy panels extending outward in a balanced twin layout to deliver broad, continuous overhead shade. The black metal frame creates a sharp, neutral contrast against the soft beige canopy, presenting a streamlined aesthetic that fits a wide range of outdoor design schemes without distracting from surrounding decor. The four-piece interlocking weighted base sits flush beneath the central pole, maintaining a compact footprint that avoids unnecessary obstruction of surrounding seating space.
The umbrella’s frame is constructed from powder-coated black steel, with varying wall thicknesses across the central support pole, cantilever arms, and 12 total canopy support ribs to match load-bearing demands. The canopy uses solution-dyed beige polyester with a PA coating, stitched with durable polyester bonded thread for long-term outdoor durability. The base consists of high-density concrete slabs with a textured gray finish, paired with stainless steel fasteners and a zinc-plated steel crank and gear assembly to support regular operation.
Functional design elements simplify regular use: a side-mounted crank with a 3:1 gear ratio raises and lowers both canopies smoothly, while push-button locks enable three separate tilt positions per canopy to adjust for shifting sun angles. A foot-pedal control allows 360-degree rotation to reposition shade as needed, and individual air vents at the top of each canopy reduce wind uplift. The system auto-locks when canopies are fully open to prevent unintended folding, and the two-section central pole supports quick disassembly for off-season storage.
This model works effectively for both residential and commercial settings: it serves backyard patios, decks, and poolside dining areas in residential properties, while also supporting outdoor seating for cafes, restaurants, and beer gardens. It is well suited for temporary event use including outdoor weddings and pop-up markets, and performs reliably in coastal environments thanks to its corrosion-resistant hardware and frame finish. When procuring this unit, note that it ships across two cartons, requires on-site assembly, and uses four interlocking base weight slabs to meet stability requirements. Plan for appropriate storage space when the unit is disassembled for seasonal use, and ensure placement allows unobstructed range for full 360-degree shade rotation.

Double-Sided Cantilever Patio Umbrella with Four-Piece Weighted Base, Beige Canopy, Black Metal Frame Specifications
