Isometric Cube-Shaped Clear Glass Coffee Table Specifications

CT-GL-CUBE-800

代码:TF8G2EV1
获取供应商报价
2026-09-14 16:25人气: 1
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CT-GL-CUBE-800

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions800 x 800 x 400 mm
Finished Top Thickness45 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Table top static load capacity30 kg
Product net weight42 kg
Glass impact resistance gradeClass C
Edge load bearing capacity10 kg
Recommended maximum placemat weight5 kg
Surface scratch hardness6H
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Table top panel12mm clear tempered float glass
Vertical support panels12mm clear tempered float glass
Panel joint adhesiveStructural neutral cure silicone
Edge finishPolished dark inked edge
Glass surface finishSmooth float polished finish
Base contact pads3mm transparent silicone anti-slip pads
Tempered stress layerCompression stress layer ≥90MPa
Glass light transmittance91%
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Structural supportVertical glass panels carry top load without separate metal frames
Surface placementFlat top supports books, decor and beverage service items
Cleaning accessOpen under-table space allows full floor cleaning around and beneath the table
Floor protectionSilicone contact pads prevent glass-to-floor scratches and reduce sliding
Visual design featureIsometric cube geometry creates optical geometric visual effect
Assembly requirementFactory-bonded joint construction arrives as a single fully assembled unit
Edge safetyPolished rounded edges eliminate sharp cut points on all exposed glass perimeters
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 1100× 300 mm
Reference Packaged Gross Weight90 kg/set in 2 cartons
Reference Packaging Volume0.55 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Modern living room placementPositioned in front of sofas in minimalist contemporary residential interiors
Lounge and waiting area useInstalled in office reception lounges and creative studio waiting zones
Contemporary gallery displayUsed as a display plinth for art objects in gallery or retail pop-up settings
Small apartment applicationSuitable for compact urban apartments where transparent furniture reduces visual bulk
Design showroom displayFeatured in furniture showrooms as a statement geometric design piece
Open-plan office breakout spacePlaced in casual office breakout areas for informal beverage and laptop use
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Glass furniture safety standardEN 12150:2015+A1:2019
Furniture stability standardEN 14073:2004
Glass surface durability standardEN 1096:2012
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Low table load standardANSI/BIFMA X2021
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Glass material standardGB 15763.2
Furniture safety standardGB 28007
Glass edge processing standardGB/T 34328
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Glass material standard:GB 15763.2;
2. Furniture safety standard:GB 28007;
3. Glass edge processing standard:GB/T 34328;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CT-GL-CUBE-800

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CT-GL-CUBE-800

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CT-GL-CUBE-800打开导出工具

页面快速操作

发布采购询价

产品描述

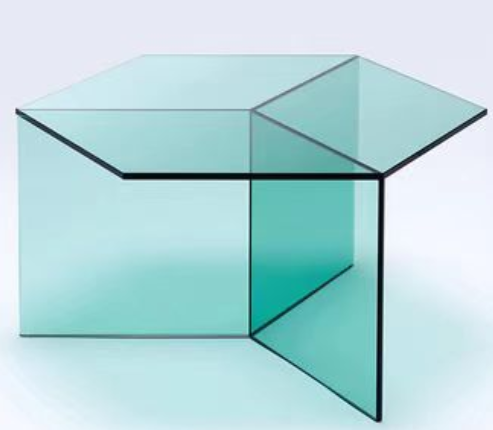

The Isometric Cube-Shaped Clear Glass Coffee Table (model CT-GL-CUBE-800) is an unbranded all-glass occasional table defined by its crisp geometric silhouette. Its low-profile, perfectly cubic isometric form delivers a striking optical visual effect, with high 91% light transmittance that creates an open, uncluttered presence without blocking sight lines across a space. All exposed glass perimeters feature polished dark inked, rounded edges that eliminate sharp cut points, with a smooth float polished surface finish for a refined, tactile quality. The frame-free construction relies on vertical clear tempered float glass panels to carry the full top load, with panels joined using structural neutral cure silicone for a seamless, monolithic appearance. Primary glass panels measure 12mm thick, with a composite build-up for the load-bearing top to reach its finished thickness; the design incorporates an integrated cable opening paired with an internal cable tray for streamlined cord management, and 3mm transparent silicone anti-slip pads at the base prevent glass-to-floor scratches and reduce unwanted sliding. The tabletop supports display of books, decor, and beverage service items, with a rated 6H surface scratch hardness to resist wear from regular contact, and Class C impact resistance for daily use durability. The open under-table clearance provides unobstructed access for full floor cleaning around and beneath the unit, which arrives factory-bonded as a fully assembled single unit for straightforward placement. This table is well suited for placement in front of sofas in minimalist contemporary residential living rooms, particularly compact urban apartments where its transparent construction cuts down on perceived visual bulk. It also fits seamlessly in office reception lounges, creative studio waiting zones, and open-plan office breakout spaces for casual beverage and light laptop use, and serves as an elegant display plinth for art objects in gallery settings, retail pop-ups, and furniture design showrooms where its geometric form acts as a statement piece. Procurement teams and buyers should note the unit ships across two cartons, with appropriate weight handling protocols required for transport and placement. Placement should align with specified load ratings, including a maximum placemat weight of 5kg, edge load capacity of 10kg, and 30kg table top static load capacity for point loads, with uniformly distributed loads capped at the stated reference value. The polished dark edge finish should be matched to surrounding material palettes for cohesive design integration.
