PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2000 × 464 × 705 mm
top surface thickness	25 mm
carcass panel thickness	18 mm
back panel thickness	3 mm
adjustable shelf thickness	15 mm
internal storage compartment height	300 mm
sliding door panel thickness	18 mm
support foot height	20 mm
corner radius	40 mm
cable management opening diameter	60 mm
sliding door track width	80 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

product net weight	45 kg
top surface static load capacity	70 kg
maximum supported TV size	85 in
sliding door cycle rating	50000 open/close cycles
surface abrasion resistance	2000 cycles
warranty period	2 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

outer wrap frame	Powder-coated steel tubing with rounded corners, matte dark gray finish
top surface	High-density MDF core with dark matte melamine laminate, stain-resistant coating
sliding door panels	MDF core with light gray matte laminate finish, smooth flat face
internal cabinet carcass	P2-grade low-formaldehyde particle board, matte internal finish
sliding door track and hardware	Cold-rolled steel with black powder-coated finish, smooth glide rollers
internal adjustable shelves	15mm thick particle board with clear melamine finish, metal shelf pins
back panel	3mm thick hardboard/MDF with pre-cut cable openings
support feet	Reinforced nylon with non-slip rubber pad, height-adjustable
door edge trim	PVC edge banding matching door finish, 1mm thickness
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

sliding door operation	Dual flat panels glide horizontally on central steel track, full access to either compartment
internal shelf adjustment	Two adjustable shelves with 32mm hole spacing, 3 height positions per compartment
cable management	Two circular rear cutouts per compartment for AV cord routing, removable grommets
leveling adjustment	Four adjustable feet compensate for uneven floor surfaces, 10mm adjustment travel
wall anchoring compatibility	Pre-drilled rear mounting points for anti-tip wall strap installation
surface cleaning	Non-porous laminate surfaces wipe clean with damp cloth, stain and water resistant
impact protection	Soft rounded outer frame corners reduce impact injury risk from contact
ventilation	10mm gap behind doors and rear vent slots provide passive airflow for AV components
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

shipping carton dimensions	2080 x 530 x 180 mm
gross shipping weight	50 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

living room media center	Supports flat-screen TVs up to 85 inches, stores AV components and media accessories
modern minimalist interior	Two-tone gray finish and soft rounded metal frame complement contemporary decor schemes
entryway storage sideboard	Provides enclosed storage for entry items in residential foyers or hallways
home office storage cabinet	Stores office supplies, documents and peripherals alongside desk workstations
dining room buffet server	Holds tableware and serving pieces with flat top for food and drink service
apartment and small space use	Compact footprint fits studio and small living spaces without overwhelming rooms

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14749:2016	Safety and strength requirements for domestic storage furniture, applicable to cabinet structure
EN 12521:2015	Strength, durability and safety requirements for domestic furniture, applicable to load ratings
EN 717-1:2004	Formaldehyde emission determination for wood-based panels, applicable to core materials

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to cabinet carcass and surface finish
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to engineered wood components
GB/T 4893.8-2013	Surface abrasion resistance test for furniture finishes, applicable to laminate top and doors

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to cabinet carcass and surface finish；
2. GB 18580-2017：Formaldehyde emission limits for wood-based panels, applicable to engineered wood components；
3. GB/T 4893.8-2013：Surface abrasion resistance test for furniture finishes, applicable to laminate top and doors；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · TVC-RND-SLD-2000

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · TVC-RND-SLD-2000

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · TVC-RND-SLD-2000打开导出工具

页面快速操作

发布采购询价

产品描述

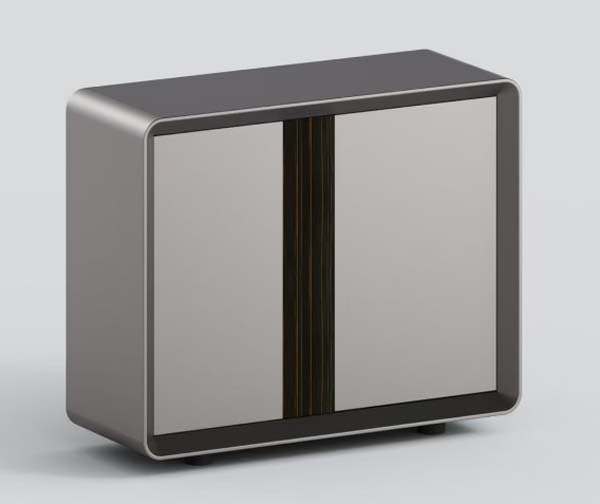

This Modern Rounded Metal Frame Sliding Door Low TV Media Console Sideboard, model TVC-RND-SLD-2000, is offered under an unbranded label as a versatile low sideboard and media storage solution defined by soft, contemporary minimalist styling. Its visual profile features a matte dark gray powder-coated steel tubing outer frame with rounded corners that soften all outer edges, paired with light gray matte laminate sliding door panels and a dark matte melamine top surface for a subtle two-tone finish. The low, linear form sits on discrete support feet, with a streamlined silhouette that avoids bulky protruding hardware. Constructed for reliable daily use, the unit’s internal carcass is made from P2-grade low-formaldehyde particle board with a matte internal finish, supporting a high-density MDF core top surface finished with stain-resistant coating. Sliding doors run on a central cold-rolled steel track with smooth glide rollers, with PVC edge banding matching the door finish for a seamless look. Adjustable internal shelves use metal shelf pins, while the 3mm thick back panel includes pre-cut cable openings. Reinforced nylon support feet feature non-slip rubber pads, and all outer corners are rounded to reduce impact injury risk from accidental contact. Functionally, the dual sliding panels glide horizontally to grant full access to either internal storage compartment, with two adjustable shelves offering three height positions per compartment via 32mm spaced mounting holes. Pre-drilled rear mounting points support anti-tip wall strap installation, while four height-adjustable feet compensate for uneven floor surfaces. Each rear compartment includes two circular cable cutouts with removable grommets for clean AV cord routing, and non-porous laminate surfaces wipe clean easily with a damp cloth, resisting stains and water exposure. The top surface holds static loads up to the rated capacity, supporting flat-screen TVs up to 85 inches, while each shelf supports distributed weight as specified for stored items. This console suits a wide range of spaces, serving as a living room media center for AV equipment and media accessories, an entryway sideboard for foyer storage, a home office cabinet for supplies and documents, or a dining room buffet for tableware and serving setups. Its compact footprint works well in apartments and small living spaces without overwhelming rooms, and its two-tone rounded design aligns with modern minimalist interior schemes. For procurement, note the unit ships in multiple cartons with a total packaged gross weight as listed, with a reference assembly time of 40 minutes per set. It comes with a 2-year warranty, with rated durability for sliding door operation and surface abrasion resistance to support regular use. Wall anchor straps are not included, so teams sourcing for family spaces or high-traffic commercial areas should plan for compatible anti-tip hardware as needed. The non-porous finish makes the unit easy to maintain for both residential and light commercial settings, though care should be taken to avoid exceeding specified load capacities for the top surface and internal shelves.

Modern Rounded Metal Frame Sliding Door Low TV Media Console Sideboard Specifications
