PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2000 × 400 × 550 mm
Central open shelving compartment width	600 mm
Single closed side cabinet door width	520 mm
Black vertical fluted accent panel width	80 mm
Open shelf internal height per tier	180 mm
Top panel thickness	18 mm
Plinth base height	50 mm
Cable management opening diameter	60 mm
Silver edge trim thickness	15 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Tabletop static load capacity	136 kg
Maximum supported TV size	2030 mm (80 in diagonal)
Net product weight	39 kg
Surface scratch resistance rating	Class 2
Hinge cycle rating	50000 open/close cycles
Recommended floor clearance under plinth	10 mm
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Main cabinet carcass	18mm thick laminated MDF/particleboard
Top surface finish	Waterproof scratch-resistant matte light gray laminate
Edge and corner trim	Polished silver-toned wrapped metal trim
Vertical divider panels	Black fluted textured engineered wood panels
Cabinet door panels	16mm thick matte light gray engineered wood with soft edge profiling
Internal open shelves	16mm thick gray laminated engineered wood
Plinth base	Matte light gray engineered wood with integrated metal trim
Door hardware	Concealed soft-close metal hinges
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Storage configuration	Three closed cabinet compartments plus two-tier central open media bay
Door operation	Push-to-open soft-close hinged doors without exposed handles
Cable management	Rear pre-drilled 60mm openings behind central open bay for AV cord routing
Ventilation design	Open central shelving provides passive airflow for media electronic devices
Corner safety	Fully rounded metal-wrapped top and bottom corners to reduce impact injury
Surface functionality	Water-resistant matte top supports TV placement, decorative objects and media devices
Interior shelf adjustability	Fixed internal shelves in central open bay, adjustable shelves in closed cabinets
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Primary use space	Contemporary residential living rooms positioned below wall-mounted televisions
Secondary use case	Condo or apartment media storage in open-plan living areas
Storage suitability	Holds media components, books, board games and decorative display items
Style matching	Complements modern, minimalist, and light luxury interior design schemes
User recommendation	Suitable for households with TVs up to 80 inches requiring concealed and open media storage
Placement requirement	Position against flat interior walls with access to power outlets for AV equipment

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 312:2010	Performance requirements for particleboard used in furniture
EN 14749:2016	Safety and strength requirements for domestic storage furniture

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture
GB 18580-2017	Formaldehyde emission limits for wood-based panels
GB/T 4893.8-2013	Surface wear resistance test for furniture coatings

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture；
2. GB 18580-2017：Formaldehyde emission limits for wood-based panels；
3. GB/T 4893.8-2013：Surface wear resistance test for furniture coatings；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · TVC-LG2000-BF-OS

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · TVC-LG2000-BF-OS

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · TVC-LG2000-BF-OS打开导出工具

页面快速操作

发布采购询价

产品描述

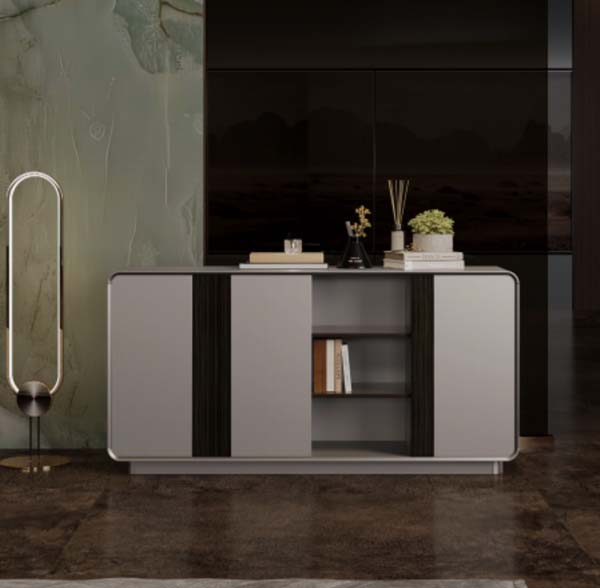

This contemporary low-profile TV media console features a streamlined matte light gray form accented with black vertical fluted panels and polished silver-toned metal trim, anchored by a matching plinth base for a clean, grounded silhouette. Its balanced layout positions two closed cabinet sections flanking a central two-tier open media bay, with fully rounded metal-wrapped top and bottom corners that soften sharp edges for a polished visual flow and reduced impact risk. The console’s core structure is built from laminated engineered wood, with an 18mm thick main carcass topped by a waterproof, scratch-resistant matte light gray laminate surface. Black fluted textured engineered wood panels serve as vertical dividers between storage zones, bordered by wrapped polished metal trim along all edges and corners. Cabinet doors are formed from 16mm thick matte light gray engineered wood with soft edge profiling, fitted with concealed soft-close metal hinges and operating via a push-to-open mechanism that eliminates exposed hardware for a seamless facade. The plinth base is finished to match the main body, with integrated metal trim and a recommended floor clearance that supports easy cleaning underneath. Functionally, the console supports televisions up to 80 inches diagonal on its top surface, with a static load capacity suited to large screen displays and accompanying decorative or media items. The central fixed open shelving provides passive ventilation for running AV electronics, paired with pre-drilled rear cable management openings for tidy cord routing. Closed side cabinets include adjustable shelves to accommodate varied items from media components and board games to books, while the fixed open bay offers easy access to frequently used devices and space for curated display pieces. Soft-close hinges deliver smooth, quiet door operation over extended use. This console is designed for contemporary residential living rooms, positioned below wall-mounted televisions against flat walls near power access, and works equally well for media storage in condo or apartment open-plan living areas. It complements modern, minimalist, and light luxury interior design schemes, serving households seeking a blend of concealed storage and accessible open display. For procurement, note that the unit ships across multiple cartons per set, with a straightforward assembly process. Confirm available wall space aligns with the console’s overall width, and verify that on-site handling can accommodate the packaged gross weight. The fixed open shelf dimensions support standard media component sizes, while adjustable closed cabinet shelves offer flexibility for evolving storage needs.

Matte Light Gray Contemporary TV Media Console with Black Fluted Accents and Central Open Shelves Specifications
