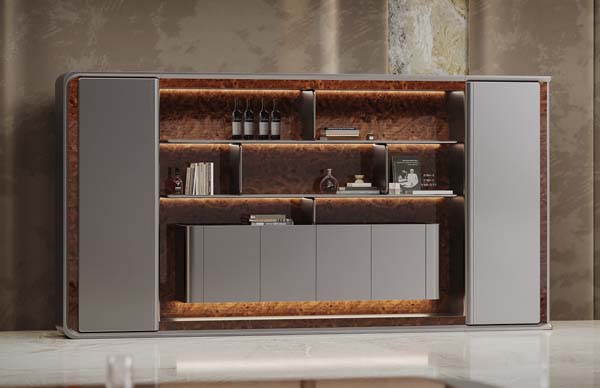

商品供应商Matte Gray Burl Wood LED Illuminated Wine Display Sideboard，18mm thick P2 grade engineered wood composite
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 2400 × 450 × 1400 mm | |
|---|---|---|
| Tall end cabinet door width | 400 mm per door | |
| Central open display section width | 1600 mm | |
| Upper display shelf clearance height | 350 mm | |
| Middle display shelf clearance height | 300 mm | |
| Lower closed cabinet bank height | 500 mm | |
| Lower individual cabinet door width | 400 mm per door | |
| Open display shelf depth | 400 mm | |
| Rounded corner frame radius | 60 mm | |
| Shelf panel thickness | 25 mm | |
| Carcass side panel thickness | 30 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Total unit static load capacity | 136 kg | |
|---|---|---|
| Total wine bottle storage capacity | 18 standard 750ml bottles | |
| LED strip rated lifespan | 50000 hours | |
| Total enclosed storage volume | 0.54 m3 | |
| Finish scratch resistance rating | 2000 cycles | |
| Recommended number of users | For 8person dining/lounge spaces | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Carcass core | 18mm thick P2 grade engineered wood composite | |
|---|---|---|
| Door panel finish | Matte light gray PU coated surface, fingerprint resistant | |
| Open shelf back panel | Burl wood veneer with clear protective topcoat | |
| Perimeter frame trim | Brushed gunmetal gray metal edge wrap with rounded corners | |
| Display shelves | 25mm thick engineered wood with matching matte finish | |
| Cabinet hinges | Soft-close zinc alloy concealed hinges | |
| Door opening mechanism | Push-to-open magnetic touch latches, no external handles | |
| Lighting components | 3000K warm white recessed LED strip with aluminum channel housing | |
| Back panel | 9mm thick density board backing with burl veneer match | |
| Edge banding | 1.5mm thick PVC edge banding matching door finish | |
| Floor glides | Adjustable nylon leveling feet under base frame | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| LED display lighting | Warm white integrated strip lighting on 3 open shelf tiers, hardwired with wall switch | |
|---|---|---|
| End cabinet access | Two full-height handleless doors open 110 degrees via push latch, internal adjustable shelves | |
| Lower central storage | Four handleless doors open 105 degrees via soft-close hinges, fixed internal shelves | |
| Open display layout | Asymmetric split shelf compartments for wine, books and curated decor | |
| Wall anti-tip protection | Two steel anti-tip brackets secure unit to finished wall for safety | |
| Leveling adjustment | Adjustable feet compensate 15mm for uneven floor surfaces | |
| Door damping | Soft-close hinges reduce closing noise and prevent panel impact damage | |
| Storage zoning | Dedicated open display zone above concealed enclosed storage zone for clutter-free presentation | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Luxury residential dining room | Positioned against wall behind dining table for wine and tableware storage display | |
|---|---|---|
| Open-plan lounge bar area | Serves as back-bar display for spirits, glassware and decorative objects | |
| High-end residential entry foyer | Provides concealed storage and curated display for entryway decor items | |
| Luxury hotel lounge suite | Used as built-in look guest refreshment and display storage | |
| Private wine tasting room | Displays featured wine bottles and tasting accessories in illuminated recesses | |
| Modern open kitchen living space | Separates dining and living zones while providing accessible shared storage |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 14749:2016 | Domestic and kitchen storage units and worktops, safety and performance requirements | |
|---|---|---|
| EN 12521:2015 | Furniture for domestic use, seating and storage strength durability stability requirements |
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and structural acceptance | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wood furniture, applicable for formaldehyde emission verification | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for core panel performance verification |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable for dimensional and structural acceptance； 2. GB 18584-2001：Indoor decoration material limit of harmful substances for wood furniture, applicable for formaldehyde emission verification； 3. GB/T 4897.3-2003：Particleboard for furniture use, applicable for core panel performance verification； 最终交付参数、检测报告和验收标准以双方采购合同为准。
