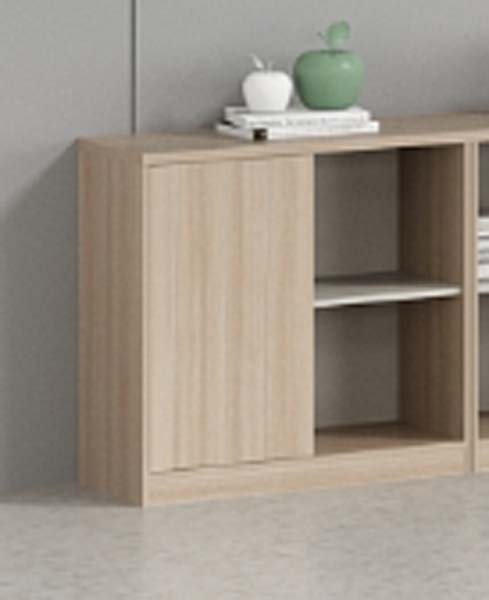

商品供应商Light Oak Effect Low Storage Cabinet with Fluted Sliding Doors and Open Shelves，18mm thick particleboard core
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 1400 × 400 × 800 mm | |
|---|---|---|
| Closed sliding door section width | 700 mm | |
| Single open cubby compartment width | 350 mm | |
| Open cubby interior height per tier | 340 mm | |
| Top surface usable depth | 380 mm | |
| Solid plinth base height | 100 mm | |
| Sliding door panel thickness | 18 mm | |
| Carcass side panel thickness | 18 mm | |
| Fixed open shelf thickness | 15 mm | |
| Back panel thickness | 5 mm | |
| Edge band thickness | 1 mm | |
| Interior closed compartment depth | 360 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Flat pack unit gross weight | 45 kg | |
|---|---|---|
| Top surface static load capacity | 50 kg | |
| Sliding door track cycle durability | 10000 open/close cycles | |
| Recommended maximum user weight for top surface seating | 0 kg | |
| Anti-tip kit load rating | 50 kg | |
| Finish scratch resistance | 2 N | |
| Limited warranty period | 2 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Carcass construction | 18mm thick particleboard core | |
|---|---|---|
| Surface finish | Light oak wood-effect melamine laminate | |
| Sliding door panels | Vertical fluted engineered wood panels on concealed tracks | |
| Open shelf dividers | 15mm thick particleboard with matching melamine finish | |
| Base plinth | Matching melamine-faced engineered wood, flush floor fit | |
| Back panel | 5mm thick hardboard with matching finish | |
| Edge banding | 1mm thick PVC edge tape matching light oak finish | |
| Door track hardware | Powder-coated cold-rolled steel sliding tracks | |
| Foot pads | Non-marking polyethylene anti-slip pads | |
| Anti-tip hardware | Steel wall anchor strap with mounting screws | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Sliding door operation | Vertical fluted doors glide horizontally on concealed tracks, no door swing clearance required | |
|---|---|---|
| Closed storage configuration | One adjustable shelf creates two flexible interior storage levels | |
| Open storage configuration | One fixed horizontal shelf divides open section into two equal display cubbies | |
| Adjustable shelf positions | 3 height positions spaced 100mm apart for custom storage heights | |
| Floor protection | Integrated non-slip foot pads prevent floor scratches and unit sliding | |
| Anti-tip safety | Wall anchor strap secures unit to wall to prevent forward tip-over | |
| Top surface use | Flat load-bearing top supports display items and small everyday objects | |
| Assembly requirement | Knock-down flat pack assembly with cam lock and dowel joinery | |
| Cable management | No dedicated cable cutouts provided for media equipment | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Living room application | Position against wall as sideboard for display and general household storage | |
|---|---|---|
| Entryway application | Use as console cabinet for entry storage of keys, bags and everyday items | |
| Dining room application | Serve as buffet cabinet for tableware, linens and serving piece storage | |
| Home office application | Place against office wall for file and supply storage with open cubbies for frequently used items | |
| Residential user target | Designed for modern minimalist, Scandinavian or Japandi style interior schemes | |
| Installation requirement | Position on level hard flooring or low-pile carpet, secure to wall with included anti-tip hardware |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 14749:2016 | Safety and performance requirements for domestic and kitchen storage units | |
|---|---|---|
| EN 312:2010 | Particleboard performance specification for furniture-grade wood-based panels | |
| EN 12521:2015 | Strength, durability and safety requirements for domestic freestanding furniture |
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality inspection | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor air quality compliance | |
| GB/T 4897.3-2015 | Particleboard specification for furniture-grade panel used in carcass construction |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable for structural and finish quality inspection； 2. GB 18580-2017：Formaldehyde emission limits for wood-based panels, required for indoor air quality compliance； 3. GB/T 4897.3-2015：Particleboard specification for furniture-grade panel used in carcass construction； 最终交付参数、检测报告和验收标准以双方采购合同为准。
