首页 > 首页 > 办公桌椅家具 > 文件柜系列 > Room Divider Planter Cabinet > LC-OF-2D-EL-804080

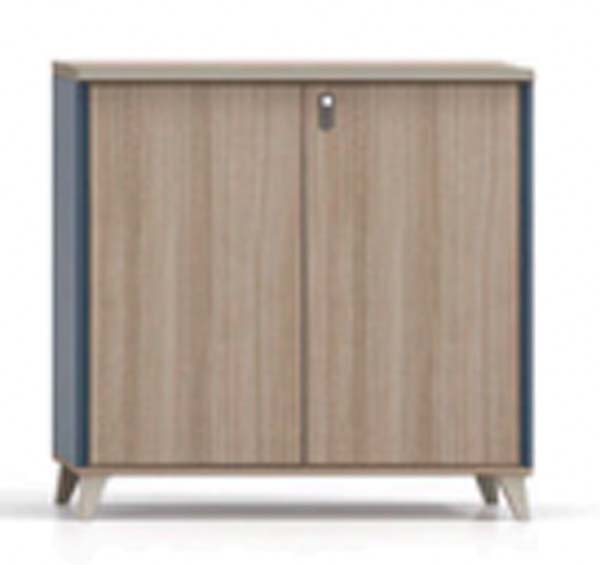

Two-Door Lockable Low Office Storage Cabinet Specifications

LC-OF-2D-EL-804080

代码:T6A559V1
获取供应商报价
2026-08-28 12:35人气: 28
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

LC-OF-2D-EL-804080

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions800 x 400 x 800 mm
Tapered leg height150 mm
Under-cabinet clearance120 mm
Single door width390 mm
Internal shelf count2
Shelf depth360 mm
Door panel thickness16 mm
Carcass side panel thickness16 mm
Back panel thickness5 mm
Edge banding thickness3 mm
Carcass Panel Thickness25 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Unit net weight38 kg
Uniform shelf static load capacity30 kg
Recommended maximum stored document weight80 kg
Hinge open/close cycle rating80000 cycles
Lock mechanism cycle rating20000 cycles
Formaldehyde emission gradeE0
Product warranty period3 years
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Door panels16mm particleboard with light oak grain melamine laminate
Side panels16mm particleboard with matte dark blue powder coat laminate
Top surface16mm particleboard with matching light wood grain laminate, 3mm PVC edge banding
LegsSolid hardwood tapered angled legs with clear lacquer finish
Internal shelves16mm adjustable engineered wood shelves with metal shelf pins
Back panel5mm hardboard with dark finish, stapled to carcass rear
Door hingesCold-rolled steel concealed soft-close hinges with nickel plating
Lock mechanismZinc alloy electronic combination/keycard lock with LED indicator
Edge Band Thickness2 mm
Primary Connector SpecificationReference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Door operationTwo equal-width hinged doors open 110 degrees outward via concealed hinges
Access controlElectronic lock on right door secures both doors, supports code or keycard access
Shelf adjustabilityInternal shelves adjust to 3 height positions via metal pin supports
Elevated base design120mm floor clearance allows easy cleaning and access under cabinet
Edge protection3mm PVC edge banding on all exposed panel edges resists impact damage
Anti-tip safetyIncludes 2 wall-mounted anti-tip brackets to prevent forward tipping
Surface resistanceMelamine finish resists stains, scratches, and common office chemical spills
Cable / Vent Opening ReferenceIf fitted, 80 mm diameter
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Shipping carton dimensions870 x 470 x 140 mm
Shipping gross weight43 kg
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office side storagePlaced alongside workstations to secure documents and office supplies
Private office file storagePositioned beside executive desks for lockable storage of sensitive files
Reception area storageUsed behind reception counters to store forms, supplies, and visitor materials
Small office/team storageSuitable for 10person teams to store shared office materials and records
Home office lockable storageUsed in home workspaces to secure work documents away from household access
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14073-2:2004Office storage furniture safety requirements, applicable to structural stability
EN 14074:2004Office furniture storage units test methods, applicable to durability verification
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing referenceRecommended references: ANSI/BIFMA X5.9
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to structural performance
GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable to material safety
GB/T 10357.5-2011Furniture mechanical performance test for storage units, applicable to load rating
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to structural performance;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable to material safety;
3. GB/T 10357.5-2011:Furniture mechanical performance test for storage units, applicable to load rating;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · LC-OF-2D-EL-804080

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · LC-OF-2D-EL-804080

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · LC-OF-2D-EL-804080打开导出工具

页面快速操作

发布采购询价

产品描述

The QILISEN Two-Door Lockable Low Office Storage Cabinet, model LC-OF-2D-EL-8040, is a sleek, modern storage solution defined by clean, contrasting visual lines and an elevated, open base design. Its profile features two equal-width hinged doors, set above tapered, angled solid hardwood legs finished with clear lacquer that lift the cabinet body to create open clearance between the unit and the floor. The door panels carry a light oak grain melamine laminate, paired with matte dark blue powder coat laminate on the carcass side panels, and a matching light wood grain laminate top surface for a cohesive, contemporary look that blends seamlessly with a range of interior palettes. Constructed primarily from durable particleboard, the cabinet features 16mm thick panels for doors, side panels, top, and internal adjustable shelves, with 3mm PVC edge banding on all exposed edges to guard against impact damage. Cold-rolled steel concealed soft-close nickel-plated hinges support door operation, while a zinc alloy electronic lock with LED indicator sits on the right door to secure both panels. The rear of the unit uses a 5mm dark-finished hardboard back panel, and two wall-mounted anti-tip brackets are included for added stability. Functionally, the cabinet’s doors open 110 degrees outward, with access granted via code or keycard through the electronic locking mechanism. Two internal engineered wood shelves adjust across three height positions using metal shelf pins, providing flexible enclosed storage for supplies and documents. The elevated base leaves sufficient floor clearance for easy cleaning underneath, while the melamine surface resists stains, scratches, and common office chemical spills. The lock and hinges are rated for repeated long-term use, and the product carries E0 grade formaldehyde emission compliance with a 3-year warranty. This cabinet fits a broad range of spaces: it works alongside workstations in open-plan offices, beside executive desks in private offices for sensitive file storage, behind reception counters for forms and visitor materials, as shared storage for small teams, and in home offices to keep work documents secured from household access. For procurement, note that assembly is required upon delivery, the unit includes all necessary hardware for installation, and total recommended maximum stored document weight aligns with its engineered load capacity to support long-term performance.
