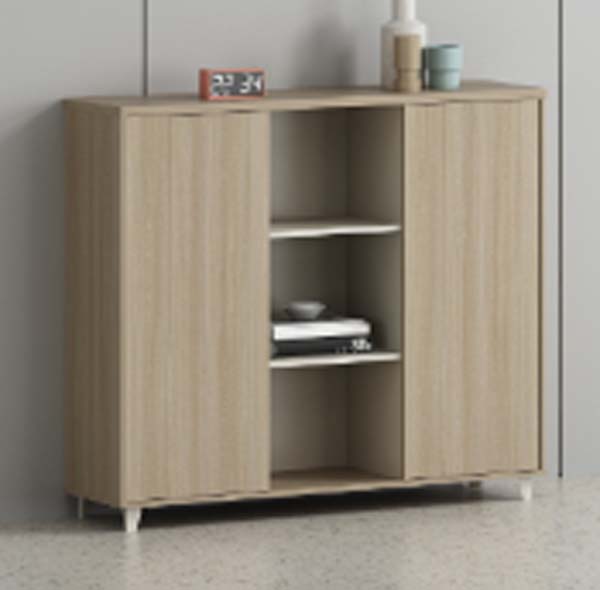

商品供应商Light Oak Fluted 3-Bay Storage Sideboard with Central Open Shelves，18mm thick MDF engineered wood with matte light oak laminate finish
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 1800 × 460 × 840 mm | |
|---|---|---|
| Overall assembled dimensions | 1800 x 460 x 840 mm | |
| Support leg height | 100 mm | |
| Central open bay width | 500 mm | |
| Each enclosed door bay width | 650 mm | |
| Open shelf tier clearance height | 230 mm | |
| Top surface thickness | 25 mm | |
| Door panel thickness | 18 mm | |
| Floor clearance under cabinet | 90 mm | |
| Internal shelf thickness | 18 mm | |
| Side panel thickness | 18 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Total product net weight | 65 kg | |
|---|---|---|
| Top surface static load capacity | 100 kg | |
| Recommended maximum user weight for top surface | 100 kg | |
| Total internal storage volume | 0.56 m3 | |
| Door cycle durability rating | 20000 open/close cycles | |
| Anti-tip wall anchor load rating | 50 kg | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Main carcass construction | 18mm thick MDF engineered wood with matte light oak laminate finish | |
|---|---|---|
| Enclosed door panels | 18mm MDF with vertical fluted oak-effect textured surface | |
| Support legs | Cylindrical powder-coated silver metal legs with non-slip plastic foot caps | |
| Fixed open shelves | 18mm MDF matching carcass finish, secured with dowel and cam-lock joints | |
| Top surface | 25mm MDF with scratch-resistant light oak laminate overlay | |
| Door hardware | Soft-close concealed metal hinges with 110-degree opening angle | |
| Edge banding | 1mm thick PVC edge banding matching oak finish on all exposed panel edges | |
| Back panel | 3mm thick hardboard with light wood grain finish | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Enclosed storage bays | Two side bays with fluted doors concealing internal storage to reduce visible clutter | |
|---|---|---|
| Open display storage | Central bay with two fixed shelves forming three tiers for frequently accessed items or decor | |
| Door operation | Concealed pull hinged doors with soft-close mechanism to prevent slamming | |
| Freestanding installation | Leveled via adjustable foot inserts on metal legs to accommodate uneven floors | |
| Top display surface | Flat continuous top suitable for decorative items, table lamps or serving use | |
| Anti-tip safety | Wall anchor bracket included to secure unit to wall and prevent tipping when loaded | |
| Flat-pack assembly | Cam-lock and dowel joinery requiring only included hex key for full assembly | |
| Internal shelf adjustability | Enclosed bays include 4 position shelf pin holes for adjustable shelf height | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Living room use | Placed against a wall as a media-adjacent storage unit for media accessories, books and display decor | |
|---|---|---|
| Dining room use | Used as a buffet server for tableware, linens and serving pieces during meals | |
| Entryway use | Positioned in foyers for shoe storage, entry essentials and tabletop key/ mail drop | |
| Home office use | Installed as under-window storage for files, office supplies and printer peripherals | |
| Residential target user | Suited for urban apartments and modern Scandinavian/Japandi style interiors | |
| Recommended clearance spacing | 1000mm clearance in front of unit for full door opening and unobstructed access to stored items |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage furniture, applicable to structural stability | |
|---|---|---|
| EN 12521:2015 | Strength, durability and safety requirements for domestic furniture storage units | |
| EN 71-3:2019+A1:2021 | Migration of certain elements, applicable for surface coating safety in residential settings |
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to carcass dimensional tolerances and finish quality | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits for wood panels | |
| GB/T 4893.8-2013 | Furniture surface test for abrasion resistance, applicable to top surface laminate durability |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to carcass dimensional tolerances and finish quality； 2. GB 18584-2001：Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits for wood panels； 3. GB/T 4893.8-2013：Furniture surface test for abrasion resistance, applicable to top surface laminate durability； 最终交付参数、检测报告和验收标准以双方采购合同为准。
