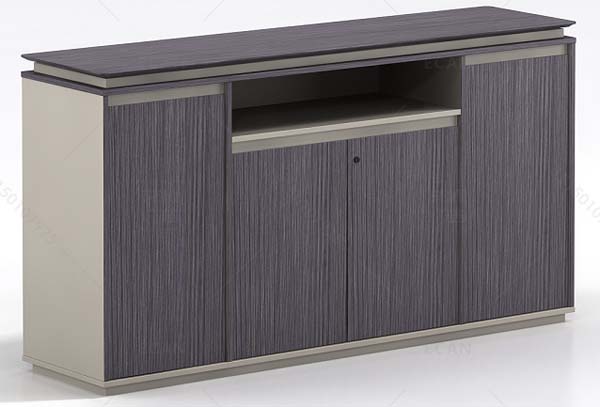

Two-Tone Ribbed Lockable Office Storage Credenza with Open Shelf Specifications

OFC-CRD-1830-RIB-LK

代码:ZXC4C8V1
获取供应商报价
2026-08-28 12:08人气: 23
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OFC-CRD-1830-RIB-LK

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions1830 x 460 x 820 mm
top work surface overhang20 mm
open central shelf dimensions730 x 350 x 220 mm
individual door panel width410 mm
top panel thickness25 mm
base plinth height60 mm
PVC edge banding thickness3 mm
interior shelf clearance per closed compartment320 mm
side panel thickness18 mm
Side Rail Thickness40 mm
Slat Spacing80 mm
Center Support Leg CountRecommended 6legs
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

adjustable interior shelf static load capacity65 kg
total product net weight100 kg
recommended maximum per-door load15 kg
scratch and stain resistanceCommercial grade
leveling adjustment range per foot15 mm
lock cylinder keyed differ configuration2 keys per unit
manufacturer limited warranty10 years
Bed Static Load Reference400 kg
Per-slat Load Reference60 kg
Recommended Procurement WarrantyFrame 10 years; hardware 5 years; upholstery 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

core substrateE0-grade engineered particleboard
door finishVertical ribbed dark charcoal thermal-fused melamine
side panel finishMatte light grey thermal-fused melamine
top surface finishDark charcoal woodgrain thermal-fused melamine
accent trimBrushed anodized aluminum
edge banding3mm thick impact-resistant PVC
door hingesSteel European-style concealed hinges
lock mechanismBrass cylinder central key lock
leveling glidesNylon-base adjustable steel feet
shelf material18mm thick melamine-faced engineered wood
Slat Thickness15 mm bent plywood or solid timber
Primary Connector SpecificationReference M8-M10 bolts with at least 2 fixing points per corner
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

central locking systemKeyed lock secures lower two central doors for confidential document storage
door operationFour hinged doors swing outward 110 degrees to access enclosed storage compartments
interior shelf adjustmentTwo adjustable shelves per closed compartment with 32mm hole spacing for height customization
central open shelfFixed recessed open shelf provides immediate access to frequently used documents or small office devices
leveling adjustmentFour corner glides adjust to compensate for uneven office flooring, eliminating cabinet rock
assembly hardwareMetal-to-metal cam-lock connections for rigid knock-down assembly and long-term structural stability
surface functionalityFlat overhanging top supports printers, office decor, or auxiliary work materials with spill-resistant finish
hinge adjustmentConcealed hinges support 3-way alignment adjustment for consistent door gap alignment after installation
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

number of shipping cartons1
shipping carton dimensions1900 x 570 x 170 mm
total shipping gross weight110 kg
shipping volume per unit0.184 CBM
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight130 kg/set
Reference Packaging Volume0.9 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

executive office placementPositioned behind executive desks for auxiliary storage and printer/device placement, matches formal executive styling
open office storage zoneInstalled along open office partition walls to provide shared secure document storage for workgroups
meeting room supportPlaced against meeting room walls to store meeting materials, presentation supplies, and AV accessories
reception back-of-houseUsed behind reception counters to store office supplies, visitor materials, and administrative documents
private office secondary storageAdded to private offices to supplement desk storage, with open shelf for frequently accessed items
recommended pairingMatches executive desk collections with dark charcoal/light grey two-tone finishes for coordinated office fit-outs
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14073-2:2004Office storage furniture safety and strength requirements for commercial office use
EN 14074:2004Office furniture test methods for storage unit structural durability validation
EN 312:2010Particleboard performance specification for core substrate material acceptance
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.9-2019Storage furniture performance standard for commercial office durability and load testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to dimensional and structural acceptance
GB/T 4897-2015Particleboard specification requirement for core substrate performance evaluation
GB 18584-2001Indoor decoration material limit of harmful substances for wooden furniture, applicable to emissions testing
GB/T 10357.5-2011Furniture mechanical performance test for storage unit strength and stability validation
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to dimensional and structural acceptance;
2. GB/T 4897-2015:Particleboard specification requirement for core substrate performance evaluation;
3. GB 18584-2001:Indoor decoration material limit of harmful substances for wooden furniture, applicable to emissions testing;
4. GB/T 10357.5-2011:Furniture mechanical performance test for storage unit strength and stability validation;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OFC-CRD-1830-RIB-LK

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OFC-CRD-1830-RIB-LK

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OFC-CRD-1830-RIB-LK打开导出工具

页面快速操作

发布采购询价

产品描述

The QILISEN Two-Tone Ribbed Lockable Office Storage Credenza, model OFC-CRD-1830-RIB-LK, features a sleek contemporary executive design defined by a coordinated two-tone finish palette, structured geometric lines, and a streamlined plinth base. The unit’s vertical ribbed dark charcoal thermal-fused melamine door panels contrast with matte light grey thermal-fused melamine side panels and a dark charcoal woodgrain thermal-fused melamine top, accented by brushed anodized aluminum trim for a polished, formal appearance. The layout integrates a central fixed recessed open shelf between four enclosed door compartments, with a 20 mm overhanging flat top surface that creates a seamless functional ledge for workplace use, supported by a 60 mm tall plinth base. Constructed from E0-grade engineered particleboard, the credenza features durable, commercial-grade components built for long-term office use. Its 25 mm thick top panel is finished with 3 mm impact-resistant PVC edge banding to resist daily wear, while doors operate on steel European-style concealed hinges that swing outward 110 degrees for full compartment access. A brass cylinder central key lock secures the two lower central doors, supplied with 2 uniquely keyed keys per unit. Four nylon-base adjustable steel feet provide 15 mm of leveling adjustment to eliminate cabinet rock on uneven flooring, and metal-to-metal cam-lock connections deliver rigid structural stability for knock-down assembly, with a reference assembly time of 40 minutes per set. The product carries a 10-year manufacturer limited warranty, offers commercial-grade scratch and stain resistance, supports a 65 kg static load per adjustable interior shelf, and a 15 kg maximum load per door, with a total net weight of 100 kg. Functionally, the central fixed open shelf offers immediate access to frequently used documents or small office devices, while each enclosed compartment includes two adjustable shelves positioned via 32 mm hole spacing to customize interior storage height, with 320 mm of clearance per shelf position. The spill-resistant overhanging top supports printers, office decor, or auxiliary work materials, and the lockable compartments provide secure storage for confidential documents. This credenza fits a range of professional settings: it can be positioned behind executive desks for auxiliary storage and device placement to match formal executive decor, installed along open office partition walls for shared secure workgroup storage, placed against meeting room walls to house presentation supplies and AV accessories, used behind reception counters to store administrative materials and visitor resources, or added to private offices to supplement desk storage. It pairs seamlessly with matching dark charcoal and light grey executive desk collections for cohesive office fit-outs. When procuring, note the unit ships in a single carton for individual orders, with a 0.184 CBM shipping volume and 110 kg gross weight, to coordinate delivery and installation logistics appropriately.
