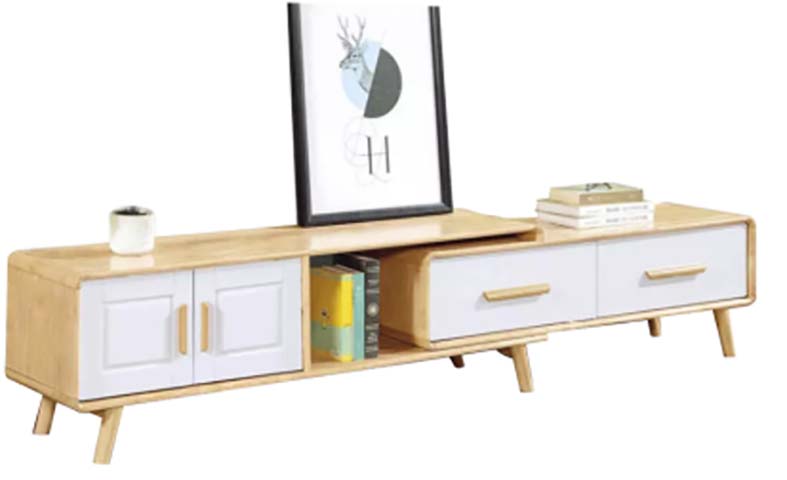

商品供应商Scandinavian Extendable TV Media Console with Mixed Storage,Walnut
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions (fully extended) | 2400 x 400 x 500 mm | |
|---|---|---|
| Closed overall length | 1850 mm | |
| Floor clearance under unit | 150 mm | |
| Left double-door cabinet internal dimensions | 700 x 360 x 300 mm | |
| Central open cubby internal dimensions | 500 x 360 x 280 mm | |
| Single right drawer internal dimensions | 600 x 350 x 120 mm | |
| Top panel thickness | 25 mm | |
| Carcass side panel thickness | 18 mm | |
| Leg diameter at floor contact | 30 mm | |
| Cable management cutout diameter | 60 mm | |
| Maximum compatible TV diagonal size | 1780 mm (70 inch) | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Unit net weight | 55 kg | |
|---|---|---|
| Top panel static load capacity | 136 kg | |
| Hinge cycle rating for cabinet doors | 80000 open/close cycles | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Recommended maximum supported TV weight | 50 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Top panel and frame | E1 grade engineered wood with natural oak veneer finish, rounded edge trim | |
|---|---|---|
| Door and drawer fronts | 18mm thick MDF with matte white painted finish, recessed panel detail | |
| Support legs | Solid rubberwood, tapered splayed design with natural clear coat | |
| Cabinet and drawer pulls | Solid wood horizontal bar pulls with natural oak finish, mounted flush to fronts | |
| Drawer slides | Cold-rolled steel side-mount soft-close glides | |
| Door hinges | Cold-rolled steel concealed soft-close hinges with 105-degree opening angle | |
| Back panel | 3mm thick hardboard with pre-cut cable management openings | |
| Central extendable media platform | 18mm thick engineered wood with oak finish, telescoping steel slide mechanism | |
| Surface finish | Scratch-resistant matte polyurethane coating on oak surfaces, scratch-resistant paint on white fronts | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Telescoping top extension | Extends total length from 1850mm to 2400mm via overlapping steel slide rails to accommodate larger TVs | |
|---|---|---|
| Soft-close drawer operation | Two right-side drawers self-close fully from 50mm open position with no audible slam | |
| Soft-close door operation | Two left cabinet doors self-close fully from 30mm open position with no impact noise | |
| Pull-out central media shelf | Central top platform pulls forward 300mm to provide access to rear-facing media device ports | |
| Cable management system | Rear cutouts in central open cubby route power and AV cables out of direct view | |
| Floor level adjustment | Each leg includes a 10mm adjustable plastic glide to compensate for uneven floor surfaces | |
| Enclosed storage capacity | Left double-door cabinet conceals media accessories, books or small living room items out of sight | |
| Open media storage | Central open cubby holds set-top boxes, game consoles or media devices for direct remote access | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Number of shipping cartons | 2 | |
|---|---|---|
| Shipping carton dimensions (per carton) | 1900 x 420 x 180 mm | |
| Total shipping gross weight | 62 kg | |
| Total shipping volume (CBM) | 0.5 | |
| Required assembly time | 50 minutes | |
| 40ft HQ container loading capacity | 210 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons |
推荐空间 / 目标用户 / 使用方式
| Living room primary media setup | Placed against a wall under wall-mounted or stand-mounted 70inch flat screen TVs for residential use | |
|---|---|---|
| Small apartment and compact living spaces | Closed length fits narrow rooms, extended length adapts to larger open plan living areas | |
| Scandinavian / modern minimalist interiors | Two-tone oak and white finish with splayed tapered legs matches Nordic, Japandi and modern decor styles | |
| Multi-purpose living room storage | Stores media accessories, books, remote controls and small living room items alongside AV equipment | |
| Low-profile media placement | 500mm total height maintains unobstructed view of wall-mounted televisions from seated sofa positions |
欧洲市场准入与化学品要求
| EN 14749:2016 | Applicable for safety and strength requirements of domestic and kitchen storage furniture including TV units | |
|---|---|---|
| EN 13722:2004 | Applicable for strength and durability testing of furniture storage units and components | |
| EN 71-3:2019 | Applicable for migration of certain elements in furniture surface coatings for residential use |
适用于中国市场项目的标准
| GB/T 3324-2017 | Applicable for general technical requirements of wooden furniture, including dimensional tolerance and finish quality | |
|---|---|---|
| GB 18584-2001 | Applicable for formaldehyde emission limits for interior wood-based panel furniture, E1 ≤ 1.5mg/L requirement | |
| GB/T 4893.4-2013 | Applicable for surface adhesion and wear resistance testing of furniture finish coatings |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:Applicable for general technical requirements of wooden furniture, including dimensional tolerance and finish quality; 2. GB 18584-2001:Applicable for formaldehyde emission limits for interior wood-based panel furniture, E1 ≤ 1.5mg/L requirement; 3. GB/T 4893.4-2013:Applicable for surface adhesion and wear resistance testing of furniture finish coatings; 最终交付参数、检测报告和验收标准以双方采购合同为准。
