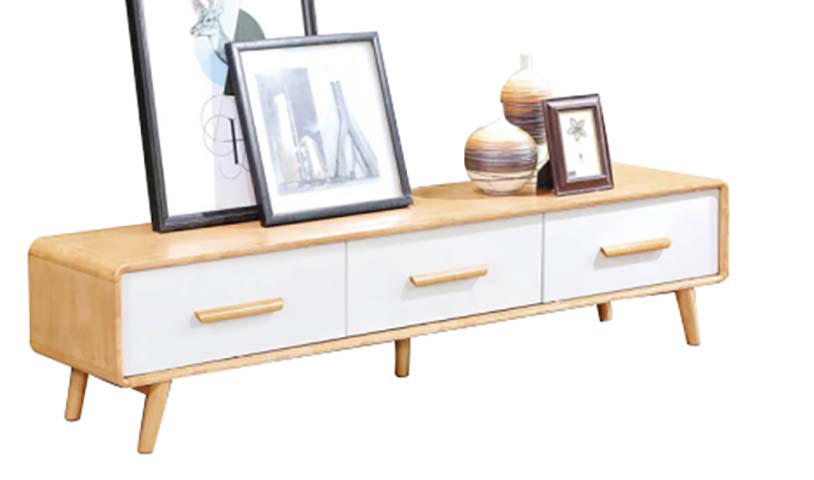

Nordic Two-Tone Rounded Edge 3-Drawer TV Media Console Specifications

MC-NW-3DR-1400

代码:M3YYR9V1
获取供应商报价
2026-08-17 11:59人气: 29
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MC-NW-3DR-1400

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1400 x 400 x 450 mm
Individual drawer front width430 mm
Drawer front height170 mm
Leg height from floor to carcass base180 mm
Top panel thickness18 mm
Carcass side panel thickness18 mm
Back panel thickness9 mm
Handle length per drawer150 mm
Corner radius on top/front edges20 mm
Leg splay angle from vertical12 degrees
Carcass Panel Thickness25 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Top surface static load capacity50 kg
Net product weight26 kg
Maximum supported TV screen size55 in
Drawer slide cycle rating50000 cycles
Surface abrasion resistance2000 cycles
Formaldehyde emission gradeE1
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
Anti-tip Fixing ReferenceProducts above 1200 mm should use at least 2 wall fixing points
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Top panel and carcass frameNatural wood-veneer engineered wood, clear matte lacquer finish
Drawer front panelsE1-grade MDF, matte white painted finish
Support legsSolid rubberwood, natural clear coat finish
Drawer handlesSolid beech wood, natural clear coat finish
Internal drawer boxes12mm thick MDF with smooth melamine lining
Drawer slidesCold-rolled steel side-mount full-extension slides
Edge banding1mm thick matching PVC edge banding, rounded corner application
Back panel9mm thick hardboard with pre-drilled cable openings
Foot padsNon-slip 5mm thick rubber pads on leg bases
Edge Band Thickness2 mm
Primary Connector SpecificationReference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Drawer operationThree equal full-extension drawers glide on side-mount steel slides
Cable managementTwo 60mm diameter cutouts on back panel
Surface stabilitySplayed leg geometry distributes weight evenly across floor contact points
Edge safety designRounded 20mm radius on all exposed top and front corners
Assembly requirementFlat-pack assembly with included hex key and hardware kit
Surface compatibilityNon-slip rubber foot pads suit hard wood, tile and low-pile carpet floors
Storage organizationEach drawer provides 12 liters of enclosed storage space
Cable / Vent Opening Reference80 mm diameter; recommend 4rear cable/vent openings
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Small to medium living roomsFits against walls beneath wall-mounted or placed TVs up to 55 inches
Studio apartmentsCompact 1400mm width fits open-plan living spaces without overwhelming layout
Nordic/Scandinavian interior schemesTwo-tone wood and white finish matches light, neutral decor palettes
Low-height display useFlat top surface holds picture frames, decorative vases and small speakers
Rental property furnishingDurable painted finish and simple assembly suit temporary residential fit-outs
Family household useSoft rounded corners reduce impact risk for children and pets
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14749:2016Safety and performance requirements for domestic storage furniture and kitchen worktops
EN 12521:2015Strength, durability and safety requirements for residential furniture
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for structural stability
GB 18580-2017Formaldehyde emission limits for wood-based panels, E1 grade required for indoor use
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for structural stability;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, E1 grade required for indoor use;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MC-NW-3DR-1400

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MC-NW-3DR-1400

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MC-NW-3DR-1400打开导出工具

页面快速操作

发布采购询价

产品描述

The Nordic Two-Tone Rounded Edge 3-Drawer TV Media Console, model MC-NW-3DR-1400, is an unbranded media storage solution designed for balanced form and everyday function. Its silhouette follows core Nordic design principles, with a low, linear profile supported by splayed, tapered solid rubberwood legs finished in a natural clear coat. The two-tone finish pairs natural wood-veneer engineered wood for the top panel and main carcass, coated in a clear matte lacquer, with matte white painted E1-grade MDF drawer fronts; all solid beech wood drawer handles match the light natural wood tone of the legs for a cohesive, uncluttered look. All exposed top and front corners feature a soft rounded profile for safety, while 1mm thick matching PVC edge banding creates a smooth, finished appearance across all panel edges. The console’s engineered wood body includes 18mm thick top and side panels, a 9mm hardboard back panel, and 12mm MDF internal drawer boxes lined with smooth melamine. Cold-rolled steel side-mount full-extension drawer slides support smooth, reliable drawer operation, and non-slip 5mm rubber foot pads fitted to each leg base protect floor surfaces and improve stability. For practical use, the console supports TVs up to 55 inches, with a top surface static load capacity suited to media devices and decorative accents. Three equally sized full-extension drawers provide enclosed storage for media accessories, remote controls, and household items, while two pre-drilled cable cutouts on the back panel simplify cord organization for connected devices. The splayed leg geometry distributes weight evenly across contact points to reduce wobble, and the soft rounded corners lower impact risk for children and pets. This console fits naturally in small to medium residential living rooms, compact studio apartments, and properties decorated in Nordic or Scandinavian interior styles, as its light, neutral two-tone palette complements soft, neutral decor schemes. It also works well as a low-height display surface for framed photos, decorative vases, or small speakers, and its durable painted finish and straightforward assembly make it a practical choice for rental property furnishing and long-term family household use. Procurement teams should note the unit ships as a flat-pack set with a hex key and all required hardware included, with an assembly time per unit of 40 minutes. Buyers should also account for split packaging across multiple cartons when planning shipping, receiving, and on-site storage. The E1 formaldehyde emission rating aligns with standard indoor air quality requirements for residential and light commercial interior use, and the non-slip foot pads are compatible with hardwood, tile, and low-pile carpet floor surfaces.
