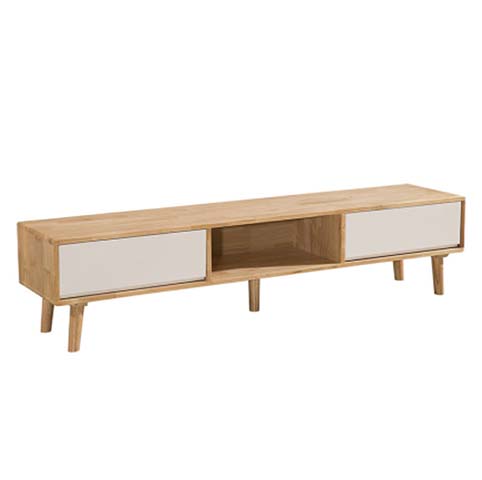

Nordic Natural Oak-Tone TV Media Console with Off-White Drawers and Central Open Shelf Specifications

TVC-OAK-WHT-6LEG-1800

代码:MMTQ4QV1
获取供应商报价
2026-08-17 12:04人气: 36
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

TVC-OAK-WHT-6LEG-1800

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1800 x 400 x 520 mm
Leg height150 mm
Top panel thickness40 mm
Internal drawer dimensions (per side)570 x 360 x 120 mm
Central open cubby dimensions660 x 360 x 150 mm
Drawer front panel thickness18 mm
Carcass side panel thickness25 mm
Floor clearance under carcass150 mm
Cable grommet diameter60 mm
Carcass Panel Thickness25 mm
Back Panel Thickness9 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Top surface static load capacity68 kg
Maximum supported TV screen size70 inches
Net product weight45 kg
Drawer slide cycle rating50000 cycles
Surface scratch resistance ratingClass 2
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
Anti-tip Fixing ReferenceProducts above 1200 mm should use at least 2 wall fixing points
Recommended Procurement WarrantyCarcass 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Top surfaceNatural solid oak with satin clear lacquer finish
Drawer frontsE0-grade engineered wood with matte off-white paint
Support legsSolid oak tapered cylindrical legs, 30mm top diameter
Carcass frameSolid oak panels, finger-jointed corner construction
Back panel3mm HDF board with pre-cut cable openings
Drawer slidesCold-rolled steel ball-bearing full-extension slides
Central shelf base25mm thick solid oak panel fixed to carcass
Drawer interiorsNatural oak veneer over engineered wood lining
Edge Band Thickness2 mm
Primary Connector SpecificationReference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Storage layoutTwo side soft-closing drawers + one fixed central open cubby
Cable managementTwo rear cable grommets routed through back panel
Drawer operationPush-to-open mechanism without exposed handles
Floor supportSix evenly spaced tapered legs for mid-span load support
Anti-tip featureIncluded wall anchor hardware for securing unit to wall
Finish maintenanceStain-resistant matte surfaces wipe clean with dry microfiber cloth
Placement compatibilityDesigned for flat placement on level hard flooring or low-pile carpet
Cable / Vent Opening Reference80 mm diameter; recommend 4rear cable/vent openings
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Living room media setupPositioned against a main wall to support flat-screen TVs and AV equipment
Small apartment open-plan spacesCompact depth and light wood finish suit limited floor area layouts
Bedroom media placementFits at the foot of a queen or king bed for secondary TV viewing
Nordic/mid-century modern interiorsTwo-tone oak and white finish matches Scandinavian design schemes
Rental property furnishingDurable construction and neutral finish suit long-term residential rental use
Home office secondary storagePlaced against an office wall to store documents and tech accessories
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14749:2016Domestic and kitchen storage units and worktops - safety requirements
EN 12521:2015Furniture - strength, durability and safety for domestic seating
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture
GB 18584-2001Indoor decorating and refurbishing materials - limit of harmful substances
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture;
2. GB 18584-2001:Indoor decorating and refurbishing materials - limit of harmful substances;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · TVC-OAK-WHT-6LEG-1800

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · TVC-OAK-WHT-6LEG-1800

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · TVC-OAK-WHT-6LEG-1800打开导出工具

页面快速操作

发布采购询价

产品描述

This Nordic natural oak-tone TV media console balances understated Scandinavian styling with functional, durable design for residential and light commercial use. It features a low-profile, elongated silhouette defined by warm natural oak finishes paired with matte off-white drawer fronts, elevated by six evenly spaced tapered solid wood cylindrical legs that create consistent open floor clearance beneath the unit. The layout is organized symmetrically, with two closed storage compartments flanking a single central open shelf, creating a streamlined visual rhythm without exposed hardware to disrupt clean lines. Constructed for long-term regular use, the console’s top surface, carcass frame, legs and central shelf base are crafted from solid oak finished with a satin clear lacquer, with finger-jointed corner joinery on the carcass for structural stability. Drawer fronts are made of E0-grade engineered wood finished in matte off-white paint, with natural oak veneer lining drawer interiors, and cold-rolled steel ball-bearing full-extension slides supporting smooth drawer operation. The 3mm HDF back panel includes pre-cut cable openings, while all matte exterior surfaces resist stains to simplify routine care. Practical design elements cater to modern media and storage needs: the console supports flat-screen TVs of up to 70 inches on its top surface, with weight ratings that accommodate standard AV equipment. Two soft-closing, push-to-open drawers provide concealed storage, while the fixed central open cubby offers easy access to frequently used devices. Integrated cable grommets keep wiring organized, included wall anchor hardware delivers anti-tip security, and the unit sits stably on level hard flooring or low-pile carpet. Surfaces wipe clean easily with a dry microfiber cloth for low-effort upkeep. This console fits a wide range of spaces: it works as a primary media unit in living rooms, fits at the foot of queen or king beds for bedroom TV setups, complements open-plan small apartment layouts with its compact depth and light finish, serves as secondary storage in home offices, and offers a durable, neutral furnishing option for long-term rental properties. It also aligns seamlessly with Nordic and mid-century modern interior design schemes. For procurement, note that each unit is shipped across multiple cartons, requires assembly, and pairs best with level installation surfaces to preserve full structural function and smooth drawer operation.
