首页 > 首页 > Hospitality Project Furniture > Apartment Furniture > TV Unit > TVC-NAT-3DRW-1800

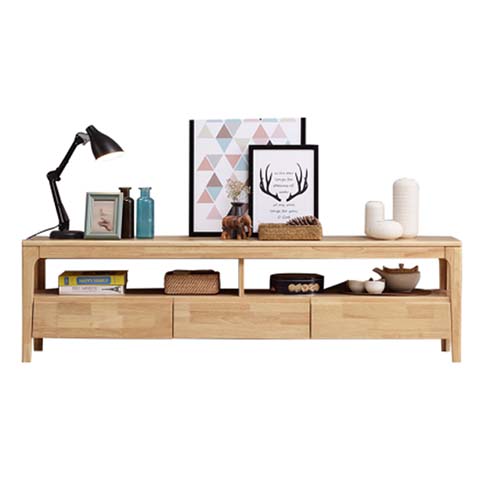

Natural Light Wood 3-Drawer Low TV Media Console with Open Shelving Specifications

TVC-NAT-3DRW-1800

代码:YVVJMMV1
获取供应商报价
2026-08-16 19:57人气: 50
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

TVC-NAT-3DRW-1800

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1800 x 400 x 450 mm
Top panel thickness30 mm
Carcass side panel thickness25 mm
Back panel thickness9 mm
Open shelf internal height150 mm
Open shelf divider positionAt unit midpoint, splits shelf into two equal bays
Individual drawer external dimensions570 x 360 x 120 mm
Leg height100 mm
Floor clearance under unit80 mm
Maximum supported TV base width1700 mm
Rear cable cutout diameter60 mm
Carcass Panel Thickness25 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Top surface static load capacity80 kg
Drawer slide cycle rating50000 cycles
Surface scratch resistance4H pencil hardness
Unit net weight50 kg
Recommended maximum TV size75 inches
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
Anti-tip Fixing ReferenceProducts above 1200 mm should use at least 2 wall fixing points
Recommended Procurement WarrantyCarcass 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Top panelSolid rubberwood with matte clear lacquer finish
Drawer frontsSolid wood edge-glued panels matching top finish
Drawer boxesSolid wood sides with 9mm plywood base
Support legsSolid tapered rubberwood legs, natural finish
Drawer slidesCold-rolled steel full-extension soft-close slides
Back panel9mm plywood with routed cable cutouts
Open shelf surfaceSolid wood panel matching top material and finish
Finish coatLow-VOC matte clear nitrocellulose lacquer
Edge Band Thickness2 mm
Primary Connector SpecificationReference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Drawer operationPush-to-open soft-close action, no external handles, 350mm extension travel
Cable managementTwo rear 60mm cutouts aligned with open shelf bays for AV wiring
Open storageTwo divided open bays for unobstructed access to media components
Floor protectionFelt pads pre-applied to leg bases to prevent floor scratching
VentilationOpen front/back shelf design for passive airflow around heat-generating AV devices
Assembly requirementFlat-pack assembly with cam-lock hardware for home setup
Surface levelingFixed leg height with optional adjustable glides for uneven floors
Cable / Vent Opening Reference80 mm diameter; recommend 4rear cable/vent openings
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Living room media placementPositioned below wall-mounted TVs for AV component storage
Small apartment living spaces1800mm width fits compact open-plan living areas without overcrowding
Scandinavian/Japandi interior schemesNatural light wood finish complements neutral minimalist decor palettes
Display of decorative itemsFull-length flat top surface showcases framed art, vases and table lamps
Combined storage useDrawers hide remote controls, media accessories and small household clutter
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12521:2015Domestic furniture strength and stability requirements for storage units
EN 71-3:2019Migration of certain elements, applicable for safe residential use
EN 312:2010Particleboard performance requirements for any engineered wood components
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for structural integrity checks
GB 18584-2001Formaldehyde emission limit for interior wooden furniture, recommended E0 grade acceptance
GB/T 4893.4-2013Surface film adhesion test standard for wood furniture finishes
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for structural integrity checks;
2. GB 18584-2001:Formaldehyde emission limit for interior wooden furniture, recommended E0 grade acceptance;
3. GB/T 4893.4-2013:Surface film adhesion test standard for wood furniture finishes;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · TVC-NAT-3DRW-1800

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · TVC-NAT-3DRW-1800

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · TVC-NAT-3DRW-1800打开导出工具

页面快速操作

发布采购询价

产品描述

This Natural Light Wood 3-Drawer Low TV Media Console features a clean, low-profile Scandinavian and Japandi-aligned silhouette defined by smooth, unadorned lines and a warm natural wood palette. Its layout balances closed and open storage: three handle-free drawers span the lower front, while a single divided open shelf sits above the drawers, split into two equal bays at the unit’s midpoint. Four tapered solid wood legs lift the main carcass off the floor, lending a light, open visual presence that avoids visual heaviness in smaller spaces. Constructed primarily from solid light wood, the console uses a solid rubberwood top panel finished with a low-VOC matte clear nitrocellulose lacquer that highlights natural wood grain, with matching solid wood open shelf surfaces and edge-glued solid wood drawer fronts. Drawer boxes pair solid wood sides with a plywood base, running on cold-rolled steel full-extension soft-close slides. The back panel is cut with cable management openings aligned to the open shelf bays, and pre-applied felt pads on leg bases protect flooring; optional adjustable glides are available to level the unit on uneven surfaces. Functionally, the push-to-open drawers eliminate protruding hardware for a seamless look, extending fully for easy access to stored items. The open bays support passive ventilation for heat-generating AV components, with dedicated cable cutouts to keep wiring tidy. The flat, sturdy top surface holds display items alongside the recommended maximum screen size, while drawers tuck away small clutter, accessories, and remotes. This console is well suited for residential living rooms, particularly compact open-plan apartment spaces, and pairs seamlessly with neutral, minimalist interior schemes. It works both as a dedicated media stand below wall-mounted screens and as a low storage piece for casual living areas. Procurement teams and individual buyers should note the unit ships as flat-pack in multiple cartons, with cam-lock hardware designed for straightforward home assembly. The fixed leg height and optional glides accommodate most standard floor conditions, and the durable matte finish resists everyday surface scuffs for long-term use in high-traffic living spaces.
