Modern Taupe Upholstered Dark Wood Frame Arm Dining Chair Specifications

WD-ARM-DC-001

代码:63XKUGV1
获取供应商报价
2026-09-10 13:41人气: 6
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WD-ARM-DC-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions483 x 569 x 950 mm
Seat height from floor489 mm
Seat width521 mm
Seat depth480 mm
Backrest height above seat495 mm
Armrest height above floor686 mm
Armrest width64 mm
Front leg taper cross-section32 x 32 mm at floor, 38 x 38 mm at seat rail
Stretcher height above floor230 mm
Seat pad thickness80 mm
Backrest pad thickness50 mm
Clearance under front seat rail160 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per-unit net weight11 kg
Recommended static user load136 kg
Seat foam density35 kg/m³
Foam rebound rate55%
Upholstery abrasion resistance (Martindale)30000 cycles
Frame static load capacity272 kg
Recommended daily use duration8 hours
Available color count4
Limited parts warranty1 year
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Leg and frame structureSolid rubberwood with dark walnut matte finish
Armrest constructionIntegrated solid rubberwood attached to front legs and back frame
Stretcher systemHorizontal solid wood cross stretchers connecting all four legs
Seat and back panel substrate12 mm thick multilayer plywood
Seat paddingHigh-resilience polyurethane foam with 10 mm polyester fiber batting
Backrest paddingHigh-resilience polyurethane foam wrapped in polyester wadding
Upholstery cover0.8 mm thick taupe faux leather (PU) with matte finish
Seam construction20 mm stitch pitch with matching taupe thread
Floor protectionInjection-molded plastic non-scuff glides on all leg bottoms
Assembly hardwareZinc-plated steel bolts and dowel connectors
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seating motionFixed non-swivel, non-reclining upright position
Arm support functionFixed integrated wood armrests provide stable elbow rest during seated use
Structural bracingDual horizontal stretcher system reduces frame racking during regular use
Back support functionTall upright padded back supports natural spinal alignment for dining posture
Floor protection functionPlastic leg glides slide smoothly without scratching hard floor surfaces
Assembly configurationKnock-down construction requires bolted attachment of legs and back to seat frame
Cleaning functionSmooth upholstery surface allows wipe-clean maintenance for food and beverage spills
Stacking compatibilityNon-stackable fixed frame design
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Carton dimensions700 x 620 x 520 mm
Carton gross weight25 kg
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential dining spacePairs with 760 mm high standard dining tables for home dining rooms
Cafe and light restaurant useDurable easy-clean upholstery suits daily commercial seating for cafes and casual restaurants
Small meeting room seatingUpright posture and arm support works for short-duration conference and meeting spaces
Breakroom and lounge areasComfortable padded seating for office break rooms and residential open-plan living spaces
Recommended table compatibilityMatches tables with 760 mm work surface height for proper seated elbow alignment
Floor surface suitabilityNon-scuff glides work on hardwood, tile, and low-pile carpet floor surfaces without damage
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Furniture strength, durability and safety for domestic seating, applicable for residential use
EN 1022:2018Chair stability testing standard, applicable to anti-tipping performance validation
EN 13356:2020Upholstered furniture upholstery material performance requirements, applicable to fabric/PU wear
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to frame strength and finish quality
GB/T 16799-2008Technical requirements for polyurethane leather upholstery material, applicable to seat/back cover
GB 18584-2001Indoor decoration material limit of harmful substances for wooden furniture, applicable to formaldehyde emissions
GB/T 10357.3-2013Furniture mechanical performance test for chair strength and durability, applicable to seating validation
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to frame strength and finish quality;
2. GB/T 16799-2008:Technical requirements for polyurethane leather upholstery material, applicable to seat/back cover;
3. GB 18584-2001:Indoor decoration material limit of harmful substances for wooden furniture, applicable to formaldehyde emissions;
4. GB/T 10357.3-2013:Furniture mechanical performance test for chair strength and durability, applicable to seating validation;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WD-ARM-DC-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WD-ARM-DC-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WD-ARM-DC-001打开导出工具

页面快速操作

发布采购询价

产品描述

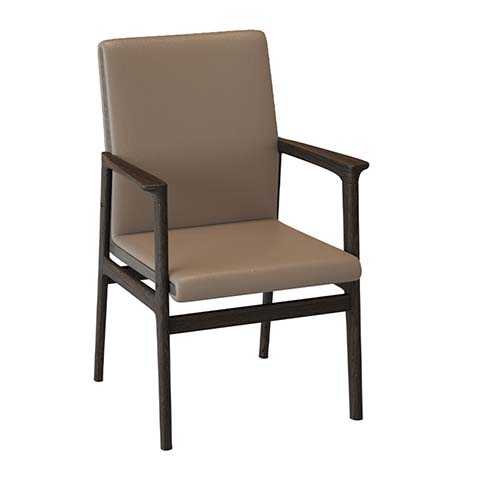

The Modern Taupe Upholstered Dark Wood Frame Arm Dining Chair, model WD-ARM-DC-001, features a streamlined minimalist silhouette defined by clean, unadorned lines that balance warm wood tones and soft neutral upholstery. Integrated armrests extend seamlessly from the front legs to the tall upright backrest, creating a cohesive, structured profile, while a dual cross-stretcher system between the legs adds subtle visual texture and structural definition. The frame is crafted from solid rubberwood finished in a dark walnut matte coating, with integrated solid wood armrests and tapered front legs. Horizontal solid wood stretchers connect all four legs to reduce frame racking during regular use. The seat and backrest are built on a multilayer plywood substrate, padded with high-resilience polyurethane foam wrapped in polyester fiber batting, and covered in 0.8 mm thick matte taupe PU faux leather with 20 mm pitch matching-thread seams. All leg bases are fitted with injection-molded plastic non-scuff glides. This fixed-position chair offers a non-swivel, non-reclining upright seat aligned to support natural spinal posture for dining, with stable integrated armrests for elbow support. The smooth faux leather surface allows quick wipe-clean maintenance for food and beverage spills, and the non-scuff glides slide smoothly without scratching hardwood, tile, or low-pile carpet surfaces. The chair supports a recommended static user load suitable for regular daily use up to 8 hours. It pairs seamlessly with standard 760 mm high tables for residential dining rooms and open-plan living spaces, and fits casual commercial settings including cafes, light restaurants, small short-duration meeting rooms, and office break rooms. For procurement, note the chair uses knock-down construction requiring bolted attachment of legs and back to the seat frame, with an per-set assembly time of 40 minutes. Each unit ships across two cartons, so receiving teams should verify all package components on delivery. The unbranded design supports flexible coordination with existing decor schemes, and the durable, easy-clean upholstery reduces ongoing upkeep demands for both residential and high-traffic light commercial environments.
