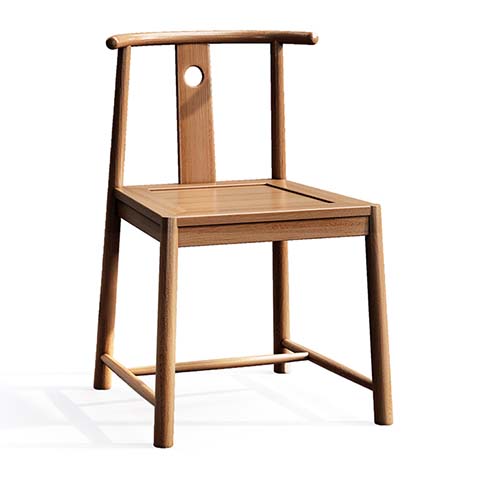

Modern Solid Wood Armless Dining Side Chair with Circular Back Cutout Specifications

WDC-001-OAK

代码:729J24V1
获取供应商报价
2026-09-10 13:31人气: 9
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WDC-001-OAK

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions445 x 514 x 895 mm
Seat height450 mm
Seat width440 mm
Seat depth420 mm
Seat panel thickness22 mm
Backrest height above seat445 mm
Central back slat width80 mm
Circular back cutout diameter40 mm
Leg diameter35 mm
Front stretcher height above floor295 mm
Rear leg spread width425 mm
Knee clearance height under seat270 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight per chair6.4 kg
Static weight capacity150 kg
Maximum recommended user weight120 kg
Seat surface linear cutout width8 mm
Joinery static load rating300 kg
Floor protection glide diameter20 mm
Finish abrasion resistance1000 cycles
Warranty period3 years
Available color options4
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Frame and legsSolid oak hardwood, natural matte clear lacquer finish
Seat panelSolid hardwood planks with narrow linear gaps, smooth sanded finish
Central back slatSolid hardwood panel with 40mm circular cutout, matching wood finish
Top back railRounded solid hardwood dowel with rolled end caps, matching frame finish
Stretcher bracingSolid hardwood diagonal and horizontal dowels, mortise-and-tenon joinery
Seat apronSolid hardwood perimeter frame under seat, screwed and glued reinforcement
Floor glidesInjection-molded nylon with felt bottom pads, press-fit into leg ends
Surface finishLow-VOC water-based matte lacquer, 0.15mm coating thickness
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seating supportFixed rigid wood seat with no recline, swivel or height adjustment
Back supportSingle central slat provides lumbar support with open visual profile
Structural bracingDiagonal and horizontal stretchers prevent leg racking under load
Floor protectionReplaceable felt glides prevent hardwood and tile floor scratching
Seat ventilationNarrow linear seat cutouts allow air circulation and liquid drainage
Stacking capabilityNon-stackable fixed frame design for permanent dining placement
Cleaning performanceSmooth lacquered wood surface wipes clean with dry or damp cloth
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential dining roomsPairs with standard 750mm height dining tables for daily meal seating
Cafes and casual restaurantsSmooth wood finish suitable for light commercial hospitality use
Home office or study roomsServes as compact guest or desk side chair for occasional work use
Waiting and lounge areasProvides lightweight casual seating in reception or break room spaces
Small apartment living spacesNarrow footprint fits compact urban apartment dining nooks
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Domestic furniture strength, durability and safety for seating, applicable to residential dining chair performance
EN 1022:2018Domestic furniture seating determination of stability, applicable to chair tipping resistance testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to structural stability and finish quality
GB 18584-2001Indoor decorating and refurbishing materials limit of harmful substances for wood furniture, applicable to formaldehyde emission limits
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to structural stability and finish quality;
2. GB 18584-2001:Indoor decorating and refurbishing materials limit of harmful substances for wood furniture, applicable to formaldehyde emission limits;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WDC-001-OAK

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WDC-001-OAK

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WDC-001-OAK打开导出工具

页面快速操作

发布采购询价

产品描述

The WDC-001-OAK armless dining side chair carries a refined minimalist modern silhouette defined by clean geometric lines and intentional negative space. Its visual profile is anchored by a single central back slat fitted with a small circular cutout, topped by a rounded solid wood dowel rail with smooth rolled end caps. The slatted seat sits atop a sturdy frame braced by diagonal and horizontal wood stretchers, creating an open, lightweight aesthetic that avoids visual bulk even in compact spaces. Constructed from solid oak hardwood finished with a low-VOC water-based matte clear lacquer, the chair uses robust mortise-and-tenon joinery for stretcher bracing, paired with screwed and glued reinforcement on the under-seat apron for long-term structural stability. The seat is formed from smooth-sanded solid hardwood planks separated by narrow linear gaps, supported by an internal bent plywood panel, while leg ends are fitted with press-fit injection-molded nylon glides with felt bottom pads. The natural wood finish highlights the material’s grain without high sheen, aligning with understated contemporary design schemes. Functionally, the chair offers fixed rigid seating with no recline, swivel, or height adjustment, with the central back slat delivering targeted lumbar support through its open profile. The linear gaps in the slatted seat promote air circulation and allow incidental liquid drainage, while the smooth lacquered surface wipes clean easily with a dry or damp cloth for simple routine maintenance. The replaceable felt glides prevent scratching on hardwood and tile flooring, and the cross-braced stretcher base resists leg racking under regular use. It holds a static weight capacity of 150kg, with a maximum recommended user weight of 120kg. This chair suits a broad range of spaces. In residential settings, it pairs with standard 750mm height dining tables for daily meal use, fits neatly into small apartment dining nooks thanks to its narrow footprint, and works as a compact guest or side chair in home offices and studies. For light commercial use, it is appropriate for cafes and casual restaurants, as well as casual seating in reception waiting areas and office break rooms. For procurement, note this is a non-stackable fixed-frame design intended for permanent placement. Each set is shipped across two cartons, with an 40 minutes of assembly time per unit. A 20GP container can hold 135 sets at 85% space utilization, making it a practical option for both small residential orders and larger light commercial fit-outs.
