首页 > 首页 > Hospitality Project Furniture > Apartment Furniture > Tea Table Chair > UP-OTT-001-BLK

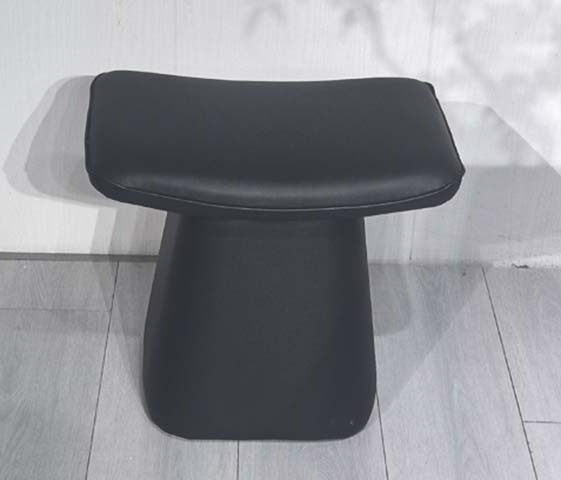

Black Fully Upholstered Tapered Pedestal Ottoman Footrest Specifications

UP-OTT-001-BLK

代码:L7Y5V3V1
获取供应商报价
2026-09-10 14:47人气: 10
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

UP-OTT-001-BLK

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions600 x 460 x 400 mm
seat top width600 mm
seat top depth460 mm
seat cushion thickness80 mm
base floor contact width380 mm
base floor contact depth380 mm
base top attachment width300 mm
seat edge radius50 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

net weight9 kg
static vertical load capacity136 kg
upholstery abrasion resistance30000 cycles
foam density30 kg/m³
foam rebound rate40%
warranty period1 year
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
Five-star Base Static Load ReferenceAcceptance target ≥120 kg; chair reference load 150 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

upholstery cover1.0 mm thick black smooth PU faux leather
seat paddingHigh-resilience polyurethane foam
internal frame18 mm thick engineered MDF/particleboard core
base internal supportSolid wood block reinforcement
floor contact glides5 mm thick polyethylene non-scuff glides
upholstery stitching8 mm seam pitch
upholstery backingNon-woven polyester fabric backing
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
Five-star Base Material ThicknessMetal base wall 3.5 mm; diameter 700 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

primary use caseElevated foot rest for paired lounge seating
secondary useLow-profile extra guest seating
floor protectionIntegrated non-abrasive base glides prevent floor marking
surface cleaningWipe-clean upholstery suitable for daily spill removal
assembly requirementFully assembled, no user installation required
design stabilityTapered wide pedestal base prevents tipping under off-center load
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

residential living roomPaired with lounge chairs or sofas for leg elevation
home office spaceUsed under desk for elevated foot support during long work sessions
hotel guest roomPlaced beside accent chairs for guest comfort
reception lounge areaUsed as auxiliary foot rest or low guest seating
bedroom dressing areaPlaced near vanities for temporary low seating
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Applicable for domestic seating strength, durability and safety
EN 1021-1:2014Applicable for upholstered furniture ignitability (cigarette test)
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017Applicable for general technical requirements of wooden furniture
GB 18584-2001Applicable for limit of harmful substances in wooden furniture
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:Applicable for general technical requirements of wooden furniture;
2. GB 18584-2001:Applicable for limit of harmful substances in wooden furniture;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · UP-OTT-001-BLK

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · UP-OTT-001-BLK

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · UP-OTT-001-BLK打开导出工具

页面快速操作

发布采购询价

产品描述

The Black Fully Upholstered Tapered Pedestal Ottoman Footrest (model UP-OTT-001-BLK) is an unbranded upholstered footstool defined by a clean, minimalist modern silhouette. It features a fully upholstered form with rounded 50mm radius seat corners, supported by a tapered pedestal base that widens toward the floor for a streamlined, uncluttered visual profile. The 600mm wide by 460mm deep seat sits atop a base that tapers from a 300mm attachment point at the seat underside to a 380mm by 380mm floor contact footprint, with a total standing height of 400mm and an 80mm thick padded seat cushion. Constructed for consistent daily use, the ottoman uses 1.0mm thick smooth black PU faux leather upholstery with 8mm seam pitch, lined with non-woven polyester fabric backing. The seat holds high-resilience polyurethane foam padding with a 30 kg/m³ density and 40% rebound rate, supported by a 14mm bent plywood internal seat board. Its core frame is built from 18mm thick engineered MDF and particleboard, with solid wood block reinforcement in the tapered pedestal base and a 14mm bent plywood composite reinforced internal structure. The base is fitted with 5mm thick polyethylene non-scuff glides to protect flooring. The upholstery carries a 30000 cycle abrasion resistance rating, and the ottoman supports a 136kg static vertical load, with a net weight of 9kg. Designed first as an elevated footrest for paired lounge seating, the piece also functions as low-profile extra guest seating. Its non-abrasive integrated glides prevent floor marking, while the wipe-clean faux leather surface supports quick daily spill removal. The tapered wide pedestal base delivers reliable stability, resisting tipping even under off-center load, and the unit arrives fully assembled with no user installation required. It fits seamlessly across residential and commercial spaces: pair it with lounge chairs or sofas in living rooms for leg elevation, position it under desks in home offices for long-session foot support, place it beside accent chairs in hotel guest rooms and reception lounges for guest comfort, or set it near vanities in bedroom dressing areas for temporary low seating. For procurement planning, note the product is covered by a 1-year warranty, with shipping logistics covering 1 set across 2 cartons, 0.26 m³ total carton volume per set, 23kg packaged gross weight, and capacity to load 135 sets in a 20GP container at 85% space utilization.
