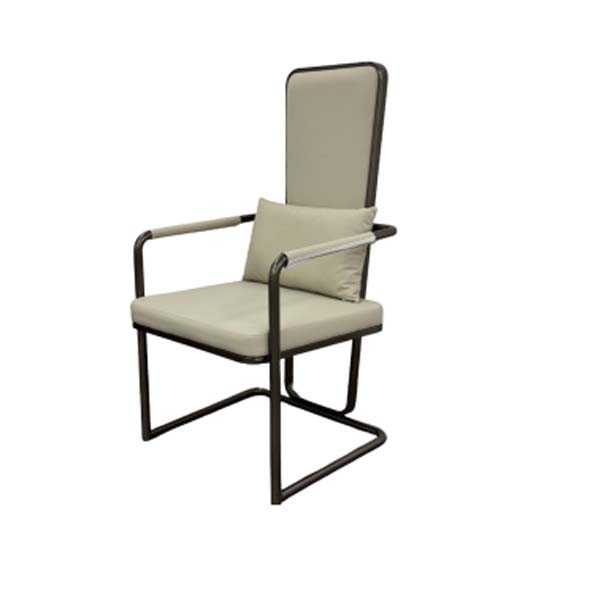

Cantilever Upholstered Guest Armchair with Lumbar Pillow Specifications

CANT-ARM-001

代码:QWG4KYV1
获取供应商报价
2026-08-31 11:56人气: 29
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CANT-ARM-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions600 x 620 x 1010 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

product net weight12 kg
maximum static user load capacity150 kg
seating capacity per unit1 person
frame static load durability120000 cycles
upholstery abrasion resistance50000 double rubs
seat cushion foam density45 kg/m³
frame anti-tip stability angle12 degrees
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

cantilever support frame25mm diameter dark powder-coated steel tubing
seat support inner panel12mm thick multilayer plywood board
seat and back paddingHigh resilience polyurethane foam
upholstery surfaceLight beige faux leather with matte finish
armrest top padsPadded matching upholstery over steel arm frame
lumbar pillow fillSoft polyester fiber fill
frame weld jointsSmooth ground and powder-coated welds
frame base feetNon-slip plastic floor glides
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

cantilever flex supportFixed cantilever frame provides 10mm of responsive flex when seated
integrated lumbar supportMatching upholstered pillow positioned at lower back for targeted support
fixed padded armrestsFull-length padded armrests support forearms during seated use
floor protection featureInset plastic glides at all base contact points prevent hard floor scratching
non-reclining fixed backrestTall upright fixed backrest provides consistent upper back support
easy maintenance upholsterySmooth non-porous upholstery surface allows wipe-clean stain removal
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

office conference room useSuitable for fixed seating around conference tables for meeting participants
office reception and guest areasModern streamlined design fits professional waiting and reception zones
executive office visitor seatingPlaced in front of executive desks for client and guest seating
co-working shared space useDurable easy-clean upholstery suits high-traffic shared work environments
home office study useSuitable as supplementary home office seating for work or study
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

office seating safety requirementsEN 1335:2018
furniture surface durabilityEN 12720:2009+A1:2013
seating structural strengthEN 1728:2012
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

lounge and guest seating standardANSI/BIFMA X2020
upholstered furniture durabilityANSI/BIFMA X2020
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

seating strength and durabilityGB/T 3324
upholstered furniture safetyGB 20400
furniture mechanical stabilityGB/T 10357.2
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. seating strength and durability:GB/T 3324;
2. upholstered furniture safety:GB 20400;
3. furniture mechanical stability:GB/T 10357.2;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CANT-ARM-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CANT-ARM-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CANT-ARM-001打开导出工具

页面快速操作

发布采购询价

产品描述

The Cantilever Upholstered Guest Armchair with Lumbar Pillow, model CANT-ARM-001, features a streamlined modern silhouette defined by its open cantilever base, paired with a tall upright fixed backrest, full-length padded armrests, and a matching light beige lumbar pillow positioned to align with the lower back. The cohesive light beige matte upholstery creates a polished, understated visual profile that complements professional and residential interior schemes without overwhelming surrounding decor. Its construction centers on a dark powder-coated steel cantilever frame made from 25mm diameter tubing, with smooth ground and coated weld joints for a seamless finish, capped with non-slip plastic floor glides at all base contact points. The seat is supported by a bent plywood inner panel, topped with high resilience polyurethane foam in the seat and backrest. The armrests feature matching padded upholstery over steel frames, while the included lumbar pillow is filled with soft polyester fiber, and the upholstery surface is smooth, non-porous light beige matte faux leather. The fixed cantilever frame delivers responsive flex when seated, paired with targeted lumbar support from the integrated pillow, full forearm support from the padded armrests, and consistent upper back support from the tall non-reclining backrest. The non-porous upholstery allows simple wipe-clean stain removal, and the inset glides prevent scratching to hard flooring surfaces. This chair is suited to a range of spaces, including office conference rooms for meeting participant seating, reception and guest waiting zones, executive offices for visitor placement in front of desks, high-traffic co-working shared spaces, and home offices or studies as supplementary seating for work or study use, pairing well with 2.4m executive desks. For procurement planning, note each unit ships in two cartons, with a reference assembly time of 40 minutes per set. The chair supports a single user, making it ideal for consistent single-seat placement across planned seating layouts, and its durable build supports regular high-volume use in active commercial environments.
