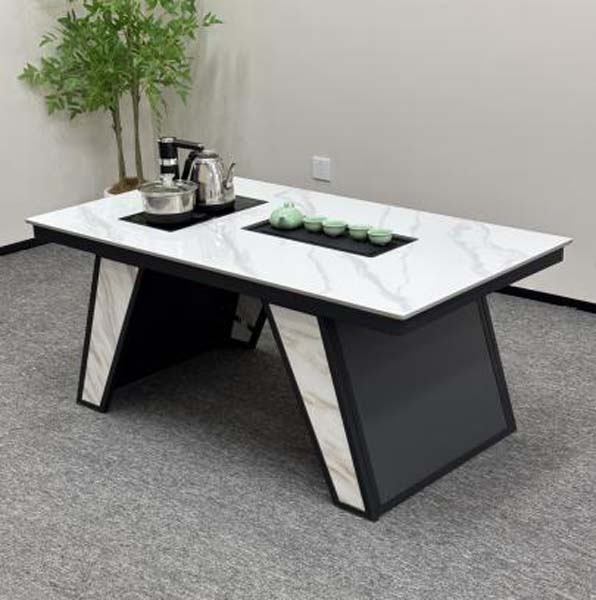

商品供应商Modern Integrated Gongfu Tea Coffee Table with Built-in Boiling Station,Sintered stone
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1200 x 700 x 600 mm | |
|---|---|---|
| Tabletop slab thickness | 12 mm | |
| Recessed boiler station cutout size | 370 x 230 mm | |
| Under-table knee/toe clearance height | 530 mm | |
| Pedestal support outer width at floor | 320 mm per pedestal | |
| Boiler station inset distance from rear table edge | 150 mm | |
| Tabletop overhang beyond pedestal supports | 80 mm on front/side edges | |
| Open central under-table width between pedestals | 720 mm | |
| Serving surface usable area (excluding boiler cutout) | 0.74 sq m | |
| Pedestal frame metal section thickness | 2 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Table net weight | 65 kg | |
|---|---|---|
| Distributed static tabletop load capacity | 150 kg | |
| Tea boiler kettle capacity | 1.2 L | |
| Sterilizer pot usable capacity | 0.8 L | |
| Recommended number of seated users | 4 | |
| Sintered stone top heat resistance | 1200 °C | |
| Sintered stone top surface abrasion resistance | 6000 revolutions | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Tabletop surface | 12mm polished white marble-look sintered stone | |
|---|---|---|
| Support frame structure | Black powder-coated carbon steel square tube | |
| Pedestal inlay panels | Matching white marble-look sintered stone | |
| Integrated boiling kettle | Food-grade 304 stainless steel | |
| Sterilizer pot | Food-grade 304 stainless steel with lid | |
| Recessed appliance mounting plate | Black heat-resistant tempered glass | |
| Frame surface finish | Matte black electrostatic powder coating | |
| Leveling feet | Nylon-padded adjustable steel feet | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Integrated boiling function | Built-in recessed electric kettle with automatic water boil and shutoff | |
|---|---|---|
| Tea utensil sterilization | Recessed stainless steel sterilizer pot with constant high-temperature sanitization | |
| Water supply configuration | Supports bottom-feed automatic water refill connection | |
| Appliance control | Button/touch control panel integrated at boiler station edge | |
| Surface use function | Heat-resistant flat serving area for tea tray, teaware and refreshments | |
| Fixed support structure | Rigid dual trapezoidal pedestal base with no moving/lifting parts | |
| Cable management | Hidden internal cable routing from appliance station to rear power outlet position | |
| Leveling adjustment | Adjustable padded feet to compensate for uneven carpet/flooring | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
推荐空间 / 目标用户 / 使用方式
| Living room placement | Positioned in front of sofas for casual home gongfu tea service | |
|---|---|---|
| Office reception use | Placed in reception lounges for hosting guest tea service | |
| Small tea room use | Installed in compact private tea spaces for 4person tea sessions | |
| Residential balcony use | Used in enclosed balconies for casual tea breaks | |
| Recommended matching furniture | Paired with low 450 mm seat height tea stools or floor cushions | |
| Power access requirement | Positioned within 1m of a grounded 10A electrical wall outlet |
欧洲市场准入与化学品要求
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applies to structural stability testing of base units | |
|---|---|---|
| GB 4706.1-2005 | Household electrical appliance safety, applies to integrated electric boiler components | |
| GB 6566-2010 | Radionuclide limit for building decoration materials, applies to sintered stone top panels | |
| GB/T 4897.3-2005 | Particleboard for furniture, applies to any internal substrate under stone veneers |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applies to structural stability testing of base units; 2. GB 4706.1-2005:Household electrical appliance safety, applies to integrated electric boiler components; 3. GB 6566-2010:Radionuclide limit for building decoration materials, applies to sintered stone top panels; 4. GB/T 4897.3-2005:Particleboard for furniture, applies to any internal substrate under stone veneers; 最终交付参数、检测报告和验收标准以双方采购合同为准。
