Name: Walnut Herringbone Integrated Tea Brewing Table
Brand: Fanshidun
SKU: 59KZ2Y

纠错时间

修改字段

原参数

修改后参数

说明 / 状态

暂无参数纠错记录，发现错误可点击行末旗标提交

PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2200 × 800 × 750 mm
Tabletop panel thickness	40 mm
Embedded electric kettle panel size	370 x 200 mm
Central embedded tea tray size	1000 x 400 mm
Left rectangular storage base size	1100 x 400 x 670 mm
Right fluted cylindrical base diameter	400 mm
Seated knee clearance height	650 mm
Rounded table end radius	400 mm
Open legroom span between bases	700 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Tabletop static load capacity	150 kg
Recommended number of users	6
Product net weight	120 kg
Surface scratch resistance rating	2000 cycles
Wood moisture content control	10%
Warranty period	1 year
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Tabletop substrate	40mm multi-layer engineered wood with walnut herringbone veneer
Tabletop finish	Matte water-based lacquer, splash-resistant and easy to clean
Left storage cabinet body	Dark grey matte lacquered engineered wood with soft-close doors
Right support base	Dark grey vertically fluted cylindrical engineered wood column
Embedded tea tray and boiler panel	Black matte tempered stone composite, heat-resistant up to 180°C
Included electric tea boiler	Food-grade stainless steel heating element with glass kettle body
Cabinet internal hardware	Cold-rolled steel soft-close door hinges
Base bottom glides	Adjustable non-slip nylon glides, 10mm adjustment range
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Integrated automatic water refill boiler	Bottom-fill electric kettle with 100°C boiling and temperature hold function
Hidden water storage compartment	Left cabinet holds 18.9L clean water bucket and 5L waste water bucket
Embedded tea tray drainage	Gravity drain system connects tea tray directly to internal waste bucket
Open knee space access	Mid-table open clearance allows seated use from the long side of the table
Closed storage compartments	Two soft-close cabinet doors store tea tools, tea caddies and supplies
Heat-resistant service surface	Recessed black panels withstand boiling water splashes and hot teapot contact
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Private office tea reception area	Provides dedicated brewing space for hosting business guests and clients
Residential living room tea lounge	Fits modern minimalist home decor for daily tea drinking and family gatherings
High-end tea house private room	Matches premium tea room aesthetics for professional tea service
Clubhouse shared social space	Accommodates small group tea events and casual social meetings
Recommended matching configuration	Pairs with 6 low-back armless tea chairs for seated service around the table

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Indoor furniture safety requirements	EN 12521:2015
Formaldehyde emission from wood panels	EN 13986:2004 E1 class

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Wood-based panel formaldehyde emission	GB/T 18580E1 grade
Furniture surface coating safety	GB/T 23994
Furniture structural safety	GB/T 3324

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Wood-based panel formaldehyde emission：GB/T 18580E1 grade；
2. Furniture surface coating safety：GB/T 23994；
3. Furniture structural safety：GB/T 3324；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · TB-WL2280-ASY

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · TB-WL2280-ASY

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · TB-WL2280-ASY打开导出工具

页面快速操作

发布采购询价

产品描述

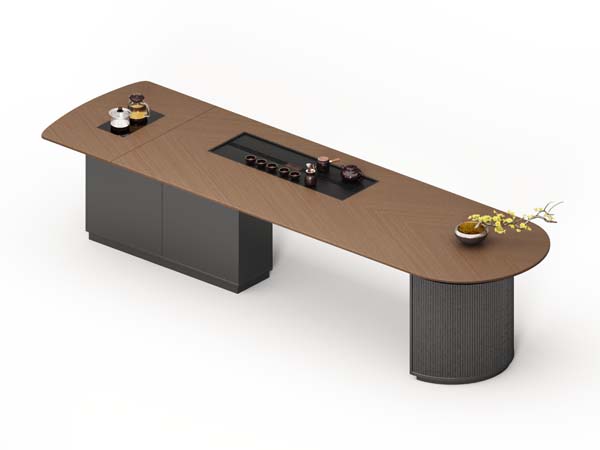

The Walnut Herringbone Integrated Tea Brewing Table from Fanshidun, model TB-WL2280-ASY, brings a refined modern minimalist silhouette defined by intentional asymmetrical dual-base structure. Its tabletop features distinct walnut herringbone wood grain, with softly rounded ends and a centered open knee clearance that enables accessible seating along the table’s long side. The 2200 x 800 x 750 mm form is anchored by two contrasting support elements: a rectangular storage unit on the left, and a sleek vertically fluted cylindrical column on the right, finished in matching dark grey matte lacquer for visual cohesion. The 40mm thick tabletop is finished in matte water-based lacquer that resists splashes and simplifies daily cleaning, with a substrate of multi-layer engineered wood topped with walnut herringbone veneer. All engineered wood components maintain controlled 10% moisture content for long-term stability. The central recessed zone holds a 1000 x 400 mm black matte tempered stone composite tea tray and a 370 x 200 mm matching panel for the integrated electric kettle, with heat resistance up to 180°C to withstand boiling water splashes and direct contact with hot teapots. The included electric tea boiler uses a food-grade stainless steel heating element and glass kettle body, with automatic bottom-fill water refill, 100°C boiling, and temperature hold functionality. A gravity drain system connects the tea tray directly to an internal waste water bucket, while the left base cabinet houses an 18.9L clean water bucket and a 5L waste water bucket, plus two soft-close door compartments with cold-rolled steel hinges for storing tea tools, caddies, and serving supplies. The right cylindrical support and adjustable non-slip nylon base glides, offering 10mm of height adjustment, keep the table stable on uneven floors. The table supports a 150kg static tabletop load, with a surface scratch resistance rating of 2000 cycles, and comfortably seats six users with 650mm of seated knee clearance. It is well suited for private office tea reception areas hosting business clients, modern residential living room tea lounges for daily use and family gatherings, high-end tea house private rooms for professional service, and clubhouse shared social spaces for small group tea events. For procurement, note the product ships as one set across two cartons, with 40 minutes of required assembly time, 0.8 cubic meters of packaging volume, and 120kg packaged gross weight. The unit comes with a one-year warranty, and pairs optimally with six low-back armless tea chairs for full seated service. Major assembly joints use M6-M10 connectors with a minimum of two fixing points per joint for structural reliability.

Walnut Herringbone Integrated Tea Brewing Table Specifications
