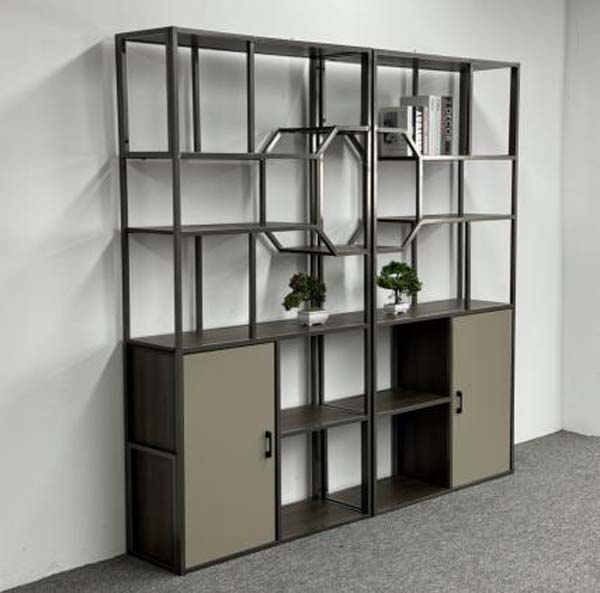

Industrial Dark Metal Open Grid Display Cabinet with Lower Closed Doors Specifications

DC-METAL-2000W400H2000-OCT

代码:R5CHBVV1
获取供应商报价
2026-08-30 16:19人气: 23
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

DC-METAL-2000W400H2000-OCT

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions2000 x 400 x 2000 mm
Lower cabinet door height800 mm
Lower cabinet door width per unit500 mm
Shelf depth (open display section)350 mm
Clear shelf height between upper open tiers300 mm
Central octagonal decorative frame height600 mm
Metal frame tube cross-section20 x 20 mm
Open shelf compartment width (standard)330 mm
Lower open shelf clearance above floor100 mm
Carcass Panel Thickness25 mm
Back Panel Thickness9 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total unit static load capacity75 kg
Recommended maximum number of display items per shelf8
Powder coat finish abrasion resistance1000 cycles
Unit net weight60 kg
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
Anti-tip Fixing ReferenceProducts above 1200 mm should use at least 2 wall fixing points
Recommended Procurement WarrantyCarcass 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Main structural frame20x20mm square steel tube with black powder-coated finish
Open display shelf boards18mm thick dark walnut-look engineered particleboard with matte laminate
Lower cabinet door panels16mm thick MDF with taupe matte paint finish
Central decorative divider15x15mm square steel tube matching frame finish, forming octagonal geometry
Cabinet door handlesMatte black recessed metal pull handles, 120mm length
Door hingesConcealed 110-degree opening steel hinges with matte black finish
Foot padsNon-slip 5mm thick rubber pads attached to base frame corners
Back panel (lower cabinet)3mm thick hardboard backing for enclosed lower storage sections
Edge Band Thickness2 mm
Primary Connector SpecificationReference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Open shelving display storageAsymmetric multi-tier grid compartments for books, plants and decorative items
Lower concealed storageTwo separate closed door compartments for out-of-sight storage of small items
Door opening mechanismHinged cabinet doors open 110 degrees outward for full interior access
Anti-tip safetyTwo wall-mounted anti-tip brackets included to secure unit to wall surface
Fixed shelf configurationAll open and internal cabinet shelves are fixed in position for rigid structural support
Leveling adjustmentBase frame equipped with adjustable screw feet to compensate for uneven floors
Cable / Vent Opening ReferenceIf fitted, 80 mm diameter
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Living room accent storagePlaced against a feature wall to display collectibles, books and small potted plants
Office reception displayInstalled in reception areas to display awards, publications and company decor
Study room bookshelfPositioned in home studies to store books and reference materials with lower concealed file storage
Retail store display fixtureUsed in boutique retail settings to showcase merchandise with lower stock storage
Recommended placement clearanceLeave 50mm gap between unit back and wall for air circulation and anti-tip bracket installation
Matching furniture recommendationPair with industrial style metal and wood desks, filing cabinets and seating for cohesive design
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16121:2013+A1:2017Safety requirements for non-domestic storage furniture, applicable for light commercial use
EN 1022:2018Stability testing requirements for seating and storage furniture, applicable to anti-tip performance
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to wood shelf and door components
GB/T 13667.1-2015Technical requirements for steel office furniture, applicable to metal frame components
GB 18584-2001Limit of harmful substances in wood furniture, applicable to engineered wood components
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to wood shelf and door components;
2. GB/T 13667.1-2015:Technical requirements for steel office furniture, applicable to metal frame components;
3. GB 18584-2001:Limit of harmful substances in wood furniture, applicable to engineered wood components;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · DC-METAL-2000W400H2000-OCT

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · DC-METAL-2000W400H2000-OCT

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · DC-METAL-2000W400H2000-OCT打开导出工具

页面快速操作

发布采购询价

产品描述

The Industrial Dark Metal Open Grid Display Cabinet with Lower Closed Doors is a floor-standing open shelving unit with a distinct geometric industrial design, defined by a rigid grid structure accented by a central octagonal decorative frame. The visual layout balances open display space above and enclosed storage below, with the upper section split into asymmetric multi-tier grid compartments that create a dynamic, decorative profile suitable for curated displays. The black metal frame contrasts with dark engineered wood open shelves and taupe-finish lower cabinet doors, accented by matte black recessed metal pull handles for a streamlined, cohesive aesthetic. Constructed for long-term durability, the unit’s main structural frame uses 20x20mm square steel tube finished in abrasion-resistant black powder coating, rated to withstand 1000 cycles of surface abrasion. Open display shelves are 18mm thick dark walnut-look engineered particleboard with matte laminate and 2mm edge banding, while lower cabinet doors use 16mm thick MDF with a taupe matte paint finish. The central octagonal divider is formed from 15x15mm square steel tube matching the frame finish, and non-slip 5mm rubber foot pads sit at base corners, with adjustable screw feet to compensate for uneven floors. Concealed matte black steel hinges support the lower doors, and the lower cabinet includes a 3mm hardboard back panel for enclosed storage stability. For practical use, the upper fixed open shelves hold up to 8 display items each, with a 30kg distributed load capacity per shelf, ideal for books, small potted plants, collectibles, or retail merchandise. The two separate lower closed compartments offer concealed storage for small items, files, or overstock, with doors that open 110 degrees outward for full interior access. Two wall-mounted anti-tip brackets are included for safety, and an optional 80mm diameter cable or vent opening can be fitted as needed. The full unit has a total static load capacity of 75kg, and all shelves are fixed in place to maximize structural rigidity. This cabinet fits a range of spaces, including living rooms as accent storage against feature walls, office reception areas for awards and company publications, home studies as a bookshelf with hidden file storage, and boutique retail settings as a merchandise display fixture. It pairs seamlessly with industrial-style metal and wood desks, filing cabinets, and seating for a coordinated design. When installing, leave a 50mm gap between the unit back and wall to support air circulation and anti-tip bracket mounting. Procurement teams should note the unbranded model ships as one set across multiple cartons, with a reference assembly time of 40 minutes per unit, a packaged gross weight of 100kg, and a total packaging volume of 0.65 cubic meters, requiring appropriate handling for the 60kg net weight unit during installation.
