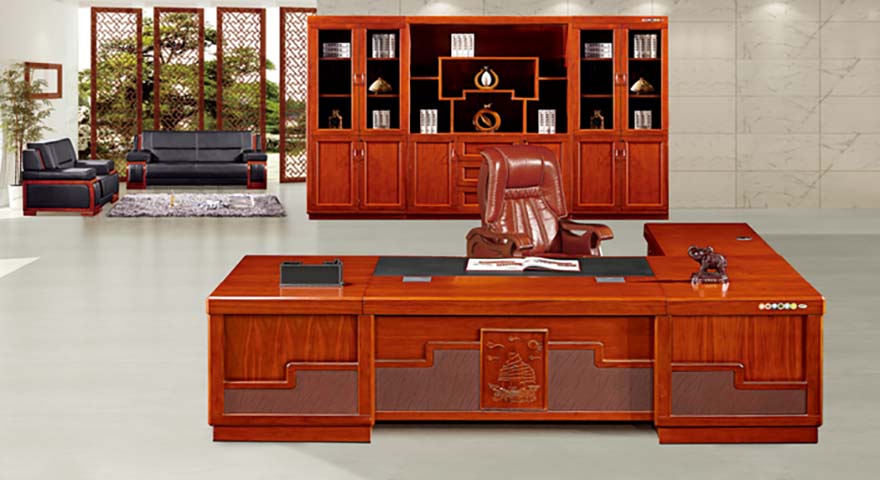

Traditional Lacquered Wood Executive Desk with Right Return and Hutch Bookcase Specifications

EDW-R3200-H2200

代码:4AJAZ4V1
获取供应商报价
2026-09-26 13:01人气: 1
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EDW-R3200-H2200

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源:工厂资料结构化字段,最终以实测值为准

Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源:产品性能数据,采购前请核对具体测试口径

Desktop distributed static load120 kg
Return work surface static load80 kg
Hutch shelf static load25 kg per shelf
Lower cabinet shelf static load20 kg per shelf
Desk product net weight260 kg
Recommended chair user weight150 kg
Recommended seating capacity1 main user and 3 visitors
Drawer slide cycle reference50,000 cycles
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源:以工厂材质清单与验货报告为准

Desktop and return substrate25 mm engineered board with wood veneer and high-gloss reddish-brown lacquer
Molded edge and trimSolid wood or veneered molded rail with layered lacquer finish
Front modesty panelsVeneered board with recessed brown leather-look insets and carved central plaque
Writing surfaceBlack leather-look or polyurethane pad over a rigid backing
Hutch door and shelf boards18 mm veneered engineered board with framed doors and lacquered exterior
Glass door panelsClear 5 mm tempered-appearance glass set in timber frames
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源:功能配置参数,以供应商正式规格为准

L-shaped executive work configurationMain desk and right return form a 3200 mm wide workspace with separate writing, meeting, and equipment zones
Cable managementTwo desk grommets and a rear equipment zone route monitor, power, and data cabling through the work surface
Storage and display systemRear hutch combines four glazed doors, lower timber doors, central open shelves, and stepped display niches for 2200 mm of wall storage
Seated privacy modesty frontFloor-based front panels enclose the knee bay while retaining a central 900 mm opening for the executive chair
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源:外贸报价与装柜测算参考

Largest carton size2500 x 1200 x 180 mm
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源:依据产品结构与品类整理的推荐应用场景

Executive officeSuited to a manager or director office where the 760 mm desk, right return, and full-height hutch support computer work, signing, storage, and visitor discussion
Formal reception or leadership suiteAppropriate for traditional corporate offices and government-style meeting rooms requiring closed storage, book display, and a substantial wood-finish appearance
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office desk safety and stabilityEN 527:2011
Office desk dimensional requirementsEN 527:2011
Formaldehyde emission from wood panelsEN 13986:2004+A1:2015 with E1 classification
Furniture storage stabilityEN 14749:2016
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Desk and table performanceANSI/BIFMA X2021
Storage cabinets performanceANSI/BIFMA X2019(R2019)
Lounge seating performanceANSI/BIFMA X2020
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office furniture desk safety and stabilityGB/T 3324
Wood-based board formaldehyde emissionGB 18580
Office furniture mechanical testsGB/T 10357.1through GB/T 10357.7
Wood furniture surface finishGB/T 4893.1through GB/T 4893.8
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Office furniture desk safety and stability:GB/T 3324;
2. Wood-based board formaldehyde emission:GB 18580;
3. Office furniture mechanical tests:GB/T 10357.1through GB/T 10357.7;
4. Wood furniture surface finish:GB/T 4893.1through GB/T 4893.8;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EDW-R3200-H2200

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EDW-R3200-H2200

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EDW-R3200-H2200打开导出工具

页面快速操作

发布采购询价

产品描述

The Traditional Lacquered Wood Executive Desk with Right Return and Hutch Bookcase presents a formal, substantial workspace rooted in classic executive styling. Its reddish-brown high-gloss wood veneer, framed glazed doors, molded rails, recessed leather-look modesty panel insets, and carved central plaque create a leadership-oriented appearance suited to interiors that call for warmth, order, and visual presence. The layout is arranged as an L-shaped configuration, with the main desk joined to a right return to form separate writing, meeting, and equipment zones. The 3200 mm wide workspace supports focused computer work, document signing, and side-by-side discussion, while the rear hutch provides 2200 mm of wall storage. The hutch combines four glazed doors, lower timber doors, central open shelving, and stepped display niches, balancing concealed filing, visible book storage, and curated display. A floor-based front modesty assembly encloses the knee area while retaining a central 900 mm opening for an executive chair. Construction uses engineered board substrates with wood veneer and layered lacquer finishes. The desktop and return are built on 25 mm board, with a 50 mm finished top thickness. Molded edges and trim use solid wood or veneered rail detailing, while hutch doors and shelves use 18 mm veneered engineered board. Clear 5 mm tempered-appearance glass is set within timber frames, and handles and hinges are metal. The writing area includes a black leather-look or polyurethane pad over a rigid backing, complementing the brown executive chair upholstery referenced in the product specification. Practical features include two 80 mm desk grommets, a rear equipment zone, and a cable tray with 120 mm depth for routing monitor, power, and data connections. The main desktop supports a distributed static load of 120 kg, the return surface supports 80 kg, hutch shelves support 25 kg each, and lower cabinet shelves support 20 kg each. Effective knee clearance is 680 mm high and 900 mm wide per main seat. The desk is intended for one main user and three visitors, with the chair specification accommodating a user weight of 150 kg. This workstation is well suited to manager or director offices, traditional corporate settings, formal reception rooms, leadership suites, and government-style meeting areas. Procurement planning should account for its 260 kg net weight, two-carton delivery, separate return or pedestal packaging, largest carton dimension of 2500 x 1200 x 180 mm, and stated assembly time of 40 minutes per set. Access planning, professional placement, and coordination with office seating and storage requirements are advisable.
