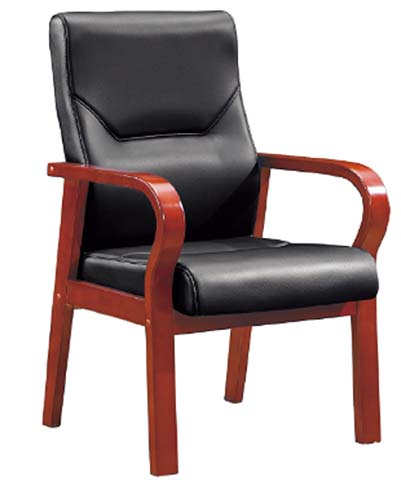

High-Back Fixed Executive Conference Armchair with Solid Wood Frame Specifications

CF-WD-BLK-01

代码:ZTM01DV1
获取供应商报价
2026-08-20 19:36人气: 27
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CF-WD-BLK-01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions680 x 600 x 1050 mm
Seat height from floor480 mm
Seat width between armrests530 mm
Seat usable depth480 mm
Total backrest height above seat550 mm
Armrest height above seat220 mm
Seat cushion thickness70 mm
Backrest padding thickness50 mm
Front leg cross-section40 x 40 mm
Rear leg cross-section35 x 35 mm
Anti-slip glide diameter per foot30 mm
Finished Seat Cushion Thickness90 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended static user weight capacity150 kg
Seat foam density30 kg/m³
Upholstery abrasion resistance3000 cycles
Seat foam rebound rate60 %
Frame wood moisture content8 %
Design service life5 years
Unit net weight25 kg
Seam stitching pitch8 stitches per 30mm
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Frame, legs and armrestsSolid hardwood with reddish-brown eco-friendly lacquer finish
Seat and backrest upholstery1.2mm thick black wear-resistant PU faux leather
Seat core paddingHigh-resilience cold-cured polyurethane foam
Backrest core paddingShaped supportive polyurethane foam with lumbar contour
Frame joinery hardwareZinc-plated steel dowels and screw fasteners
Foot padsWear-resistant non-slip nylon glides
Internal back support panel12mm thick multilayer plywood
Internal seat support panel15mm thick multilayer plywood
Surface finishSatin cured wood lacquer with UV resistance
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Base structureFixed four-leg solid wood frame, no casters, no swivel
Height adjustmentNo gas lift or height adjustment, fixed seating position
Recline functionFixed upright back angle of 100 degrees, no tilt or recline
Armrest designIntegrated curved cantilever wood armrests fixed to frame and legs
Lumbar supportContoured stitched lumbar recess in lower backrest
Floor protectionNylon anti-slip glides prevent scuffing and sliding
Edge treatmentRounded padded seat and back edges with piped stitching
Assembly designKnock-down construction for efficient shipping and on-site assembly
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate boardroomsFormal high-back design supports extended seated meetings for executives
Conference and meeting roomsFixed stable base provides consistent formal seating for group discussions
Executive reception areasPolished wood frame presents a professional welcoming appearance for visitors
Government and institutional meeting spacesCommercial grade construction meets public sector procurement durability requirements
Training rooms for formal programsFixed upright position supports attentive seated learning during sessions
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applicable reference for office chair seating dimensional stability requirements
EN 1022:2018Applicable reference for domestic and contract seating stability performance
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017Applicable as acceptance standard for solid wood office furniture technical requirements
GB 18584-2001Applicable as limit standard for formaldehyde and harmful substances in wooden furniture
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:Applicable as acceptance standard for solid wood office furniture technical requirements;
2. GB 18584-2001:Applicable as limit standard for formaldehyde and harmful substances in wooden furniture;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CF-WD-BLK-01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CF-WD-BLK-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CF-WD-BLK-01打开导出工具

页面快速操作

发布采购询价

产品描述

The High-Back Fixed Executive Conference Armchair (model CF-WD-BLK-01, unbranded) balances formal aesthetic appeal with functional durability for professional seating applications. Its visual profile features a structured high-back silhouette paired with a continuous reddish-brown solid wood frame that forms the four legs and integrated curved cantilever armrests, finished in a satin UV-resistant cured eco-friendly lacquer. The black 1.2mm wear-resistant PU faux leather upholstery is accented with neat piped stitching along rounded, padded seat and back edges, with a defined stitched contoured lumbar recess in the lower backrest that adds subtle visual dimension alongside ergonomic shaping. The chair’s construction prioritizes long-term stability for high-traffic use. The frame, legs, and armrests are crafted from solid hardwood, joined with zinc-plated steel dowels and screw fasteners, and supported by internal 15mm multilayer plywood for the seat and 12mm multilayer plywood for the backrest. Seat cushioning uses 70mm thick high-resilience cold-cured polyurethane foam, while the 50mm thick backrest uses shaped supportive polyurethane foam molded to match the lumbar contour. Wear-resistant non-slip nylon glides are fitted to each leg base to protect floor surfaces and prevent unwanted sliding during use. The chair holds a fixed upright back angle of 100 degrees, with no swivel mechanism, casters, gas lift, height adjustment, or recline function, creating a stable, consistent seating position. This armchair is well-suited for a range of formal commercial and public spaces, including corporate boardrooms for extended executive meetings, standard conference and meeting rooms for group discussions, executive reception areas to project a polished, welcoming professional image, government and institutional meeting spaces, and formal training rooms where an upright position supports attentive engagement. It pairs appropriately with a 2.4 m executive desk for private executive office setups. Procurement teams should note the chair ships in two cartons per set, with an assembly time of 40 minutes per unit. It has a rated static user weight capacity of 150 kg, a design service life of 5 years, and a unit net weight of 25 kg. The fixed non-adjustable structure makes it ideal for spaces requiring uniform, formal seating arrangements, rather than flexible workstations requiring adaptable positioning.
