Two-Tone L-Shaped Executive Office Desk with Right Storage Return Specifications

EXD-L2200-WTCH

代码:1YDEGBV1
获取供应商报价
2026-08-22 12:51人气: 36
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EXD-L2200-WTCH

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions2200 x 1800 x 760 mm
Main worktop depth800 mm
Return credenza width1400 mm
Return credenza depth500 mm
Desktop thickness25 mm
Knee clearance height650 mm
Knee clearance width1200 mm
Modesty panel height350 mm
Support leg section size50 x 50 mm
Open storage cubby internal height250 mm
Drawer front height180 mm
Edge banding thickness2 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Desktop static load capacity91 kg
Drawer slide load rating25 kg
Drawer slide cycle rating50000 cycles
Door hinge cycle rating80000 cycles
Cable grommet diameter60 mm
Surface abrasion resistance2000 cycles
Recommended user count1
Net product weight60 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Main worktop25mm E1-grade engineered wood with white scratch-resistant laminate
Desk carcass and modesty panel18mm dark charcoal engineered wood with matte melamine finish
Support legs and framePowder-coated dark gray steel with 1.5mm wall thickness
Cabinet and drawer fronts18mm light silver matte engineered wood panel
Drawer slidesCold-rolled steel three-section full-extension ball-bearing slides
Cabinet hingesSoft-close cold-rolled steel concealed hinges
Feet and base glidesNylon adjustable leveling glides
Edge banding2mm PVC edge banding matching desk finish
Cable management grommetsABS plastic cable grommets with brush seal
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Storage configuration1 closed cabinet, 1 open storage cubby, 1 lower drawer on right return
Cable managementRear desktop grommets with under-surface cable routing tray
Knee accessUnobstructed central seated knee bay under main worktop
Front privacyFixed full-width modesty panel below main desktop front edge
Leveling adjustmentAdjustable nylon glides on return cabinet base for uneven floors
Surface protectionScratch and water-resistant laminate worktop finish
Drawer operationSmooth full-extension drawer access for office supplies storage
Cabinet accessHinged cabinet door for enclosed storage of documents and devices
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Private executive officeFits dedicated manager/executive spaces requiring large work surface and integrated storage
Home office workspaceSuitable for large home offices requiring professional task surface and document storage
Open-plan manager workstationWorks for team lead positions in open office layouts with side-facing return storage
Small meeting and workspaceSupports light one-on-one meetings at the desk alongside daily computer and paperwork tasks
Professional studio workspaceSuitable for design or consulting studios requiring durable work surface and organized storage
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements, applicable for structural load testing
EN 527-2:2016Office worktables dimensional safety requirements, applicable for knee clearance verification
EN 14073-2:2004Office storage furniture safety requirements, applicable for return cabinet performance
EN 12521:2015Furniture mechanical stability for seating and work surfaces, applicable for tip-resistance
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products performance standard, applicable for load and durability testing
ANSI/BIFMA X5.9-2019Storage units performance standard, applicable for return cabinet and drawer testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for desk panel and structural performance
GB/T 3327-2018Office desks and tables, applicable for dimensional and functional acceptance
GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable for E1/E0 board selection
GB/T 4893.8-2013Surface abrasion resistance test for furniture finishes, applicable for desktop durability
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for desk panel and structural performance;
2. GB/T 3327-2018:Office desks and tables, applicable for dimensional and functional acceptance;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable for E1/E0 board selection;
4. GB/T 4893.8-2013:Surface abrasion resistance test for furniture finishes, applicable for desktop durability;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EXD-L2200-WTCH

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EXD-L2200-WTCH

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXD-L2200-WTCH打开导出工具

页面快速操作

发布采购询价

产品描述

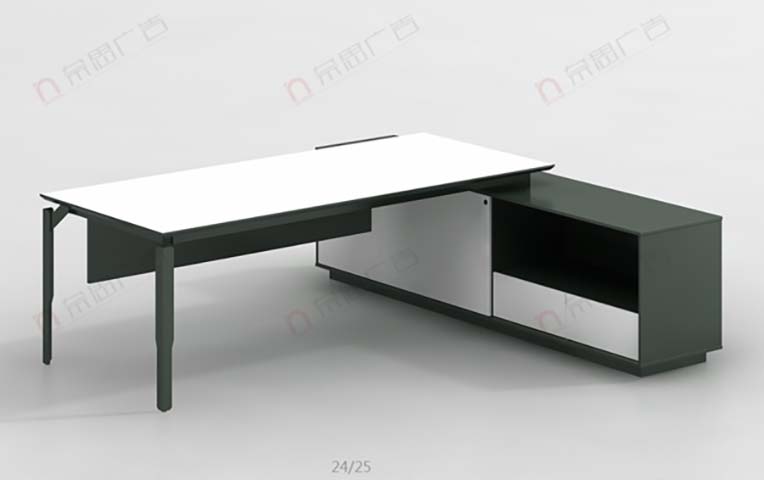

The Two-Tone L-Shaped Executive Office Desk with Right Storage Return (model EXD-L2200-WTCH) is an unbranded modern workspace solution defined by its structured, two-tone visual profile. The configuration pairs a wide main worktop with an integrated right-side storage return to form a cohesive L-shape, with a fixed full-width modesty panel spanning the front of the main work surface for visual privacy and an unobstructed central knee bay positioned directly below the main worktop for seated access. The design uses layered, coordinated finishes to deliver a polished contemporary look, with cool-toned contrast between work surfaces, structural panels, and hardware accents. Construction prioritizes durable, low-maintenance materials built for regular professional use. The 25mm main worktop uses E1-grade engineered wood finished with a scratch- and water-resistant white laminate, while the desk carcass and modesty panel use 18mm dark charcoal engineered wood with a matte melamine finish. Support structures consist of powder-coated dark gray steel legs and frame, with light silver matte engineered wood panels forming cabinet and drawer fronts accented by matching matte silver hardware. All exposed edges are sealed with 2mm PVC edge banding that matches the adjacent desk finish, with nylon adjustable leveling glides fitted to the return cabinet base to compensate for uneven flooring. Drawers operate on cold-rolled steel three-section full-extension ball-bearing slides, and cabinet doors use soft-close cold-rolled steel concealed hinges. ABS plastic cable grommets fitted with brush seals sit on the rear of the desktop, paired with an under-surface cable routing tray to keep power and data cords organized. The desk’s integrated right return provides practical built-in storage, with one closed cabinet, one open storage cubby, and one lower drawer designed to hold office supplies and work documents; the full-extension drawer allows unobstructed access to stored contents. The worktop supports regular daily task loads for a single user, with a surface engineered to resist scuffs and minor water exposure from typical office use. This desk fits a range of commercial and residential work settings. It is well-suited for private executive offices serving managers and senior staff who require a large dedicated work surface with on-hand storage, as well as large home offices needing a professional-grade task surface for document and supply organization. It also functions effectively as a team lead workstation in open-plan office layouts, supports light one-on-one meetings alongside daily computer and paperwork tasks, and works for professional design or consulting studios that demand durable work surfaces and organized accessible storage. Procurement teams should note this desk is supplied as a knock-down product requiring on-site assembly, shipped across multiple cartons per set with clearly separated packaging for the main top and return storage unit. The integrated leveling glides reduce the need for additional floor protection accessories for installation on slightly uneven surfaces, and the coordinated finish palette allows it to integrate seamlessly with a range of existing modern office furniture schemes without requiring custom color matching.
