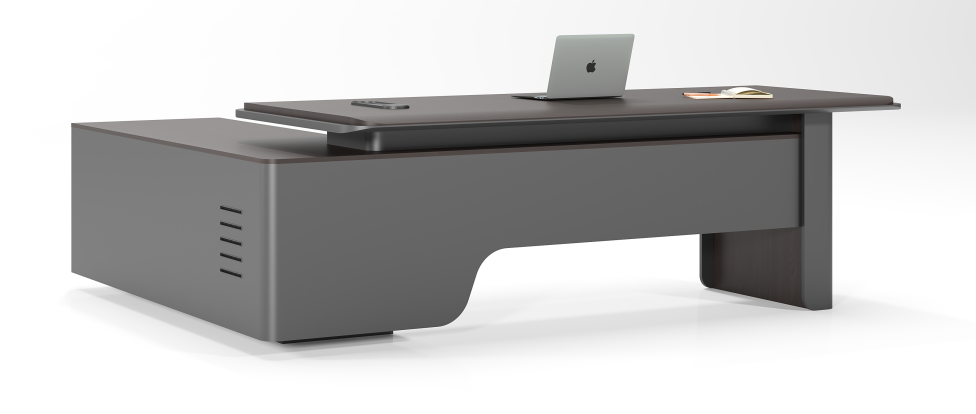

商品供应商L-Shaped Executive Office Desk with Fixed Side Storage Pedestal，Dark brown matte anti-scratch laminate on 25mm MDF or particleboard core
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 2200 × 1800 × 750 mm | |
|---|---|---|
| Main worktop depth (front to back) | Approx. 850 mm | |
| Side return pedestal length (along left side) | Approx. 1800 mm | |
| Side pedestal depth (front to back, perpendicular to main desk) | Approx. 500 mm | |
| Seated knee clearance width (under main desk, between pedestal and right leg) | Approx. 1200 mm | |
| Seated knee clearance height (underside of worktop to floor) | Approx. 680 mm | |
| Worktop overhang (front/right edge beyond support structure) | Approx. 30 mm | |
| Worktop thickness | Approx. 25 mm | |
| Side panel support thickness | Approx. 50 mm | |
| Ventilation slot length on pedestal side | Approx. 80 mm per slot, 5 slots total | |
| Finished Top Thickness | Approx. 30-50 mm | |
| Effective Knee Clearance | Approx. 620-680 mm high and 700-900 mm wide per main seat | |
| Leg / Support Section | Approx. 40-80 mm main section with 1.2-2.0 mm metal wall | |
| Cable Opening Size | Approx. 60-80 mm diameter; cable tray depth approx. 80-120 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Whole desk net weight range | Approx. 115-145 kg | |
|---|---|---|
| Main worktop static load capacity | Approx. 150 kg evenly distributed | |
| Drawer (if fitted) static load per drawer | Approx. 25 kg | |
| Recommended user count | 1 person | |
| Surface abrasion resistance reference | ≥2000 revolutions (Taber CS-10 wheel) | |
| Structure service life reference | ≥10 years under normal office use | |
| Drawer slide (if fitted) cycle rating | ≥50,000 opening/closing cycles | |
| Door hinge (if fitted) cycle rating | ≥80,000 opening/closing cycles | |
| Top Static Load Reference | Approx. 80-150 kg uniformly distributed | |
| Drawer Slide Load / Life | Approx. 25-45 kg/pair; 30,000-50,000 cycles |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Main worktop surface | Dark brown matte anti-scratch laminate on 25mm MDF or particleboard core | |
|---|---|---|
| Storage pedestal outer panels | Matte grey thermofoil laminate on 18mm E1 grade wood-based panel | |
| Right side support leg | 50mm thick matching dark brown wood-based panel with radius edge | |
| Desk base leveler feet | Hard plastic adjustable glides | |
| Internal drawer hardware (if fitted) | Cold rolled steel ball bearing drawer slides | |
| Edge banding | 2mm thick PVC edge banding with radius corners | |
| Ventilation grilles on pedestal | Integral cut-out slots in side panel, same finish as pedestal | |
| Internal shelf (if fitted in pedestal) | 18mm thick matching wood-based panel, fixed or adjustable | |
| Desk base contact points | Hard nylon adjustable glide feet | |
| Pedestal ventilation grilles | Integral CNC cut-out slots in pedestal side panel, matching matte grey finish | |
| Modesty panel | 18mm thick matte grey wood-based panel, fixed to support leg and pedestal frame | |
| Cable grommet | ABS plastic soft-closing cable port with brush insert |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Height configuration | Fixed 750mm working height, no height adjustment | |
|---|---|---|
| Storage function | Integrated left side pedestal provides enclosed storage, configurable with file drawers, stationery drawers and optional CPU compartment | |
| Cable management | Built-in cable grommet/port visible on worktop surface for routing power and data cables, internal channel within modesty panel | |
| Ventilation function | Five horizontal ventilation slots on left end of pedestal allow air circulation for stored computer equipment | |
| Leveling function | Adjustable glide feet under pedestal and support leg compensate for uneven floor surfaces up to 10mm adjustment range | |
| Work surface function | Rounded contoured front edge reduces forearm pressure during extended work, wide L-shaped surface supports multi-monitor setup and document handling | |
| Modesty function | Full-height front panel between worktop and floor on main desk section provides leg privacy for users | |
| Knee clearance function | 1200mm wide x 680mm high unobstructed knee bay allows 360° swivel movement of executive office chairs without contact with support structure | |
| Cable Management Capacity | Reference capacity 6-10 power/data cables; tray load approx. 5-10 kg | |
| Reference Reassembly Count | Main joints should support 3-5 controlled assembly cycles |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Number of shipping packages | 3 packages | |
|---|---|---|
| Largest package dimensions (worktop) | Approx. 2300 x 950 x 120 mm | |
| Pedestal package dimensions | Approx. 1850 x 550 x 720 mm | |
| Total shipping gross weight | Approx. 135-170 kg | |
| Total shipping volume (CBM) | Approx. 0.95-1.1 CBM | |
| 20ft GP container loading quantity | Approx. 28 units | |
| 40ft HQ container loading quantity | Approx. 68 units | |
| Hardware and support leg package dimensions | Approx. 800 x 600 x 120 mm | |
| On-site assembly time | Approx. 45-60 minutes for 2 trained installers | |
| Reference Package Count | 1 set / 1-2 cartons |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Executive private office | Suitable for manager/executive individual workspaces, provides dedicated large work area and integrated storage for documents and office supplies | |
|---|---|---|
| Small meeting room leader desk | Can be used as a leadership desk in compact meeting rooms for meetings and document review, provides sufficient space for materials and devices | |
| High-end home office workspace | Suitable for remote professionals and freelancers requiring 1.5m+ work surfaces and concealed storage for work equipment in residential studies 10sqm and larger | |
| Reception manager workstation | Applicable for reception area back-office manager workstations, balances professional appearance with functional storage and cable management | |
| Recommended matching furniture | Pair with mid-back/executive ergonomic office chair (seat height 420-520mm) and matching mobile file cabinet for additional storage | |
| Back-office reception manager workstation | Applicable for reception area back-office manager workstations in 8-12sqm spaces, balances professional public-facing appearance with functional storage and cable management for visitor sign-in systems |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office furniture - Work tables and desks - Part 1: Dimensions, applicable for verifying worktop height, clearance dimensions and ergonomic dimensions | |
|---|---|---|
| EN 527-2:2002+A1:2009 | Office furniture - Work tables and desks - Part 2: Mechanical safety requirements, applicable for structural strength and stability testing | |
| EN 13986:2004+A1:2015 | Wood-based panels for use in construction - Characteristics, evaluation of conformity and marking, applicable for verifying panel performance and formaldehyde emission | |
| EN 15372:2008+A1:2016 | Furniture - Strength, durability and safety - Requirements for non-domestic storage units, applicable for pedestal storage structural performance |
STANDARD S2
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| 北美市场选型与验收参考 | ANSI/BIFMA X5.5 办公桌及桌类产品 |
|---|
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel dimensional tolerance, edge finishing and structural stability testing | |
|---|---|---|
| GB/T 3327-2017 | Furniture - Desks and tables, applicable for strength, durability and stability requirements for office desks | |
| GB 18580-2017 | Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels and finishing products, required E1 grade (≤0.124mg/m³) for all wood components | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for verifying core panel density and internal bond strength for worktop components |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable for panel dimensional tolerance, edge finishing and structural stability testing； 2. GB/T 3327-2017：Furniture - Desks and tables, applicable for strength, durability and stability requirements for office desks； 3. GB 18580-2017：Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels and finishing products, required E1 grade (≤0.124mg/m³) for all wood components； 4. GB/T 4897.3-2003：Particleboard for furniture use, applicable for verifying core panel density and internal bond strength for worktop components； 最终交付参数、检测报告和验收标准以双方采购合同为准。
