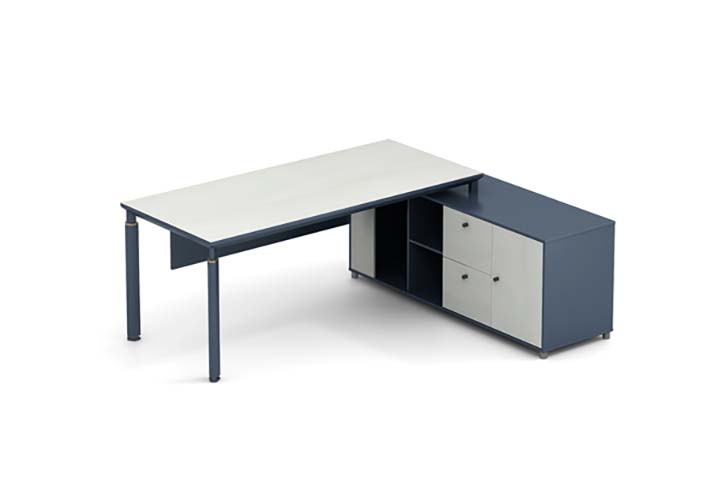

Two-Tone L-Shaped Executive Office Desk with Caster-Mounted Storage Return Specifications

LSH-EXD-750BLW

代码:MGC61WV1
获取供应商报价
2026-08-22 12:36人气: 28
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

LSH-EXD-750BLW

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall assembled dimensions2000 x 1800 x 750 mm
Worktop thickness25 mm
Main worktop depth800 mm
Seated knee clearance height620 mm
Seated knee clearance width1200 mm
Storage return cabinet dimensions1400 x 500 x 680 mm
Cylindrical support leg diameter60 mm
Edge banding thickness2 mm
Open storage cubby internal dimensions350 x 450 x 320 mm
Drawer internal usable dimensions400 x 420 x 150 mm
Cable grommet diameter60 mm
Caster wheel diameter50 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Desktop static uniform load capacity120 kg
Drawer slide cycle rating50000 open/close cycles
Cabinet door hinge cycle rating80000 open/close cycles
Net assembled weight reference70 kg
Recommended maximum user weight load at seated position136 kg
Surface abrasion resistance rating2000 cycles
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Worktop panelE1-grade engineered particleboard with off-white matte melamine finish
Cabinet carcase and frameE1-grade engineered particleboard with slate navy blue matte laminate finish
Drawer and cabinet door frontsE1-grade MDF with matching off-white matte laminate finish
Support legsPowder-coated steel cylindrical tubes with brushed gold metal accent rings at joints
Storage return castersHard nylon swivel casters with non-marking rubber tread
Drawer hardwareCold-rolled steel side-mounted ball-bearing glides with black plastic pull handles
Cabinet door hingesCold-rolled steel concealed soft-close hinges
Edge banding2mm thick impact-resistant PVC edging matching panel finishes
Modesty panel18mm thick navy blue laminated particleboard panel under main worktop
Leg foot padsNon-slip adjustable plastic floor glides
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Mobile storage returnCaster-mounted side cabinet can be repositioned under the worktop or pulled out for access
Dual open storage cubbiesTwo divided open shelves on the return provide instant access to frequently used items
Two stacked utility drawersTwo vertically aligned drawers with ball-bearing glides store small office supplies and documents
Dual-door enclosed cabinetTwo hinged doors conceal lower cabinet storage for bulky items and files
Integrated cable managementPre-drilled cable grommets route power and data cords from worktop to under-desk area
Adjustable leg levelingThreaded foot pads on front legs adjust to compensate for uneven floor surfaces
Reversible return configurationStorage unit can be installed on left or right side of main worktop during assembly
Locking caster optionTwo lockable casters on the storage return hold the unit in fixed position during use
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Executive private officeProvides large work surface and integrated storage for manager and director workspaces
Home office workspaceCombines work area and storage without occupying excess floor space in residential offices
Small business open officeFunctions as a standalone work unit for team leads in open plan office environments
Conference room auxiliary deskServes as a presentation or document prep surface adjacent to meeting tables
Commercial co-working spaceDurable construction and reconfigurable layout suit shared flexible work environments
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables safety and strength requirements, applicable to desk structural performance
EN 1335-2:2018Office furniture fire resistance for seating adjacent to desk surfaces, applicable to material flammability
EN 71-3:2019Migration of certain elements for furniture surfaces, applicable to finish safety for high-contact areas
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Office desk products performance standard, applicable to load, stability and durability testing
ANSI/BIFMA X5.9-2019Storage units performance standard, applicable to drawer and cabinet durability testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to panel desk construction quality
GB/T 3327-2018Performance test methods for office desks and tables, applicable to structural load testing
GB 18580-2017Formaldehyde emission limits for wood-based panels, required for indoor office furniture
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to panel desk construction quality;
2. GB/T 3327-2018:Performance test methods for office desks and tables, applicable to structural load testing;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, required for indoor office furniture;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · LSH-EXD-750BLW

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · LSH-EXD-750BLW

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · LSH-EXD-750BLW打开导出工具

页面快速操作

发布采购询价

产品描述

The LSH-EXD-750BLW two-tone L-shaped executive office desk from aibi furniture balances polished visual appeal, functional flexibility, and durable construction for modern professional settings. Its two-tone palette pairs an off-white matte melamine main worktop with slate navy blue matte laminate cabinetry, accented by brushed gold rings at the joints of its cylindrical powder-coated steel support legs, for a refined, contemporary silhouette. The L-shaped layout supports a reversible assembly configuration, allowing the attached storage return to be installed on either the left or right side of the main worktop to fit unique room layouts, with 620 mm of seated knee clearance height and 1200 mm of clearance width to accommodate comfortable, ergonomic seating positions. Constructed from E1-grade engineered particleboard and MDF substrates, the desk features a 25 mm thick main worktop with 2 mm impact-resistant PVC edge banding matched to panel finishes, supported by 60 mm diameter cylindrical steel legs with adjustable threaded foot pads to level the unit on uneven floors. The 1400 x 500 x 680 mm storage return sits on hard nylon swivel casters with non-marking rubber treads, allowing the unit to be tucked fully under the worktop or pulled out for easy access. The return integrates two open storage cubbies for frequently used items, two stacked utility drawers on cold-rolled steel ball-bearing glides rated for 50,000 open-close cycles, and a dual-door enclosed cabinet with cold-rolled steel soft-close hinges rated for 80,000 open-close cycles for bulkier items and files. Additional functional details include pre-drilled cable management grommets to route power and data cords, and a navy blue laminated particleboard modesty panel under the main worktop. The desktop supports a 150 kg uniformly distributed static load, with a surface abrasion resistance rating suited for regular daily use. This desk fits a wide range of spaces, including executive private offices for managers and directors, space-efficient home offices, standalone workstations for team leads in small business open plan layouts, auxiliary prep surfaces adjacent to conference room tables, and flexible workstations in commercial co-working environments. For procurement, note that each set ships across multiple cartons with a total packaged gross weight of 180 kg, requires 40 minutes of assembly time per unit, and delivers a fully assembled footprint of 2000 x 1800 x 750 mm to support accurate space planning prior to installation.
