mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall outer dimensions | 2800 x 2200 x 760 mm | |
|---|---|---|
| Main desktop work surface thickness | 50 mm | |
| Desktop front overhang past modesty panel | 80 mm | |
| Knee clearance height under main desktop | 650 mm | |
| Knee clearance width at central seating position | 1600 mm | |
| Left fixed storage pedestal dimensions | 800 x 600 x 600 mm | |
| Modesty panel height | 520 mm | |
| Desktop cable grommet dimensions | 300 x 80 mm | |
| Base plinth height | 60 mm | |
| Side return desktop depth | 600 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Net weight range | 185 kg | |
|---|---|---|
| Main desktop static load capacity | 150 kg | |
| Recommended maximum user weight for seating edge | 120 kg | |
| Surface abrasion resistance rating | 2000 cycles | |
| Recommended service life under daily commercial use | 10 years | |
| Available finish/color options | 2 | |
| Drawer slide operational cycle rating | 50000 cycles | |
| Cabinet hinge operational cycle rating | 80000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Main desktop substrate | 18mm thick E0 grade medium density fiberboard | |
|---|---|---|
| Desktop surface finish | Walnut wood grain matte laminate, 0.6mm wear layer | |
| Desk frame and cabinet carcass | 25mm thick matte taupe painted engineered wood, sealed edge banding | |
| Left storage pedestal front panel | Faux leather upholstery over 12mm MDF substrate, visible contrast white stitching at top and bottom edges | |
| Front modesty panel | Woven scale-pattern fabric upholstery over 15mm MDF backing, taupe geometric fish-scale pattern | |
| Support and structural hardware | 1.5mm thick cold rolled steel connecting brackets, powder coated taupe finish | |
| Cable grommet insert | Matte ABS plastic, matching taupe frame finish | |
| Desk base plinth | 18mm thick painted MDF, 30mm setback from cabinet front edge | |
| Drawer slides (internal storage) | 3-section full extension ball bearing slides, zinc plated finish | |
| Internal drawer hardware | Concealed soft-close hydraulic hinges for pedestal doors, black epoxy finish | |
| Under-desk cable management components | 0.8mm thick powder coated steel cable tray, fitted with Velcro cable ties for cable organization | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Integrated desktop cable management | Rectangular flush grommet on left work surface routes power, data and monitor cables to under-desk space | |
|---|---|---|
| Fixed left side storage pedestal | Integrated cabinet with 2 utility drawers and 1 hanging file drawer for document and office supply storage, no independent movement | |
| Full front modesty panel | Woven decorative panel covers full under-desk front to block view of legs and stored items from visitor side | |
| Rounded desktop edge treatment | Smooth radius-edged desktop eliminates sharp corners, reduces impact injury risk for users and visitors | |
| Under-desk cable routing clearance | 70mm gap between modesty panel and rear frame allows vertical cable routing to floor outlets | |
| Seating position accommodation | Central knee well designed to fit one executive office chair with 360 degree swivel clearance, no obstructions under work surface | |
| Levelling base design | Solid plinth base provides stable support on level commercial flooring, no adjustable glides visible in product rendering | |
| Soft-close drawer operation | Full extension drawers feature hydraulic soft-close mechanism that engages in final 50mm of travel to prevent slamming and reduce noise | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Number of shipping cartons | 4 | |
|---|---|---|
| Largest carton dimensions (main desktop) | 2850 x 1050 x 120 mm | |
| Total shipping gross weight | 220 kg | |
| Total shipping volume (CBM) | 1.25 | |
| On-site assembly time | 120 minutes | |
| 20ft GP container loading quantity | 18 units | |
| 40ft HQ container loading quantity | 44 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
推荐空间 / 目标用户 / 使用方式
| Executive private office | Designed for senior management and executive private offices, provides generous work surface and enclosed storage for a professional, upscale appearance | |
|---|---|---|
| New Chinese style commercial interiors | Coordinates with modern oriental interior design schemes, suitable for corporate headquarters, government offices and premium cultural institutions | |
| Client meeting and work integration | Wide desktop supports computer work, document review and small tea service arrangements for in-office client meetings | |
| Open plan executive workstation | Can be deployed in premium open plan office zones for department heads, provides integrated storage without additional free-standing cabinets | |
| Long-term daily office use | Engineered for 8+ hours daily commercial use over multi-year service life, supports standard office equipment including dual monitors, desk phones and document storage | |
| Hybrid meeting and focused work | Dual-zone work surface separates device-based work from document review and informal guest interaction, supporting 2 seated visitors on the visitor side of the desk |
欧洲市场准入与化学品要求
| EN 527-1:2011 Office furniture - Work tables and desks - Part 1: Dimensions | Applies to ergonomic dimension verification for seated work height and clearance | |
|---|---|---|
| EN 527-2:2016 Office furniture - Work tables and desks - Part 2: Mechanical safety requirements | Applies to structural stability, strength and safety requirement verification | |
| EN 13722:2004 Furniture - Assessment of surface resistance to abrasion | Applies to desktop laminate surface wear performance testing |
美国及加拿大办公家具标准
适用于中国市场项目的标准
| GB/T 3324-2017 General technical requirements for wooden furniture | Applies to dimensional tolerance, edge finishing and structural strength verification for this wooden office desk | |
|---|---|---|
| GB/T 3327-2017 Office desks and tables | Applies to desktop load rating, stability and ergonomic dimension compliance for commercial office use | |
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | Applies to formaldehyde emission limits for all engineered wood components for indoor air quality compliance | |
| GB/T 4893.8-2013 Test of surface coatings for furniture - Part 8: Determination of abrasion resistance | Applies to desktop surface durability testing for heavy daily office use |
本产品须满足以下技术参数要求： 1. GB/T 3324-2017 General technical requirements for wooden furniture：Applies to dimensional tolerance, edge finishing and structural strength verification for this wooden office desk； 2. GB/T 3327-2017 Office desks and tables：Applies to desktop load rating, stability and ergonomic dimension compliance for commercial office use； 3. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture：Applies to formaldehyde emission limits for all engineered wood components for indoor air quality compliance； 4. GB/T 4893.8-2013 Test of surface coatings for furniture - Part 8: Determination of abrasion resistance：Applies to desktop surface durability testing for heavy daily office use； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

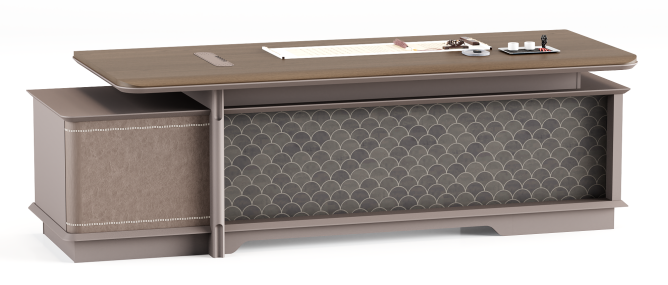

打开导出工具带左侧储物固定柜的软包L型行政办公桌，刨花板材质。
