| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback. | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall extended dimensions | 1400 x 800 x 750 mm | |
|---|---|---|
| Retracted nested dimensions | 900 x 600 x 750 mm | |
| Fixed circular side table top diameter | 600 mm | |
| Pull-out tea service worktop dimensions | 700 x 450 mm | |
| Under-table seated knee clearance height | 620 mm | |
| Caster diameter | 50 mm | |
| Gold handle length | 120 mm | |
| Base decorative metal trim height | 30 mm | |
| Rotating tea tray diameter | 550 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Product net weight | 95 kg | |
|---|---|---|
| Main table top static load capacity | 100 kg | |
| Caster individual load rating | 40 kg | |
| Recommended number of users | 4 | |
| Appliance compartment maximum power capacity | 2000 W | |
| Individual caster load rating | 40 kg | |
| Seated user capacity | 4 | |
| Drawer slide operational cycle rating | 50000 cycles | |
| Hinge operational cycle rating | 80000 cycles | |
| Shelf Distributed Load | 30 kg/shelf |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Main and pull-out worktops | 12mm polished white sintered stone | |
|---|---|---|
| Fixed cabinet top tray | 12mm matte black sintered stone | |
| Cabinet body panels | 18mm high-density MDF with matte taupe PU paint | |
| Decorative hardware and trim | Brushed gold finish zinc alloy | |
| Support frame and leg structure | 25mm steel tube with matching taupe paint | |
| Cabinet door panels | 18mm painted MDF with soft-close hinges | |
| Casters | TPR tread universal lockable casters with metal bracket | |
| Internal storage shelves | 15mm particleboard with matching laminate | |
| Main extended worktop | 12mm polished white sintered stone | |
| Pull-out tea station worktop | 12mm polished white sintered stone | |
| Cabinet carcass panels | 18mm high-density MDF with matte taupe PU paint | |
| Cabinet back panel | 9mm MDF with matching taupe laminate |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Rotating top tray function | 360-degree swivel black sintered stone tray on fixed cabinet, allowing easy access to tea sets from any seated position | |
|---|---|---|
| Pull-out integrated tea station | Slide-out worktop with pre-wired power access, holding electric water kettle and glass sterilizer pot for in-table tea preparation | |
| Extendable table function | Nested mobile side cabinet slides and rotates out to expand work surface from compact 900mm width to full 1400mm width for larger groups | |
| Lockable mobile function | 4 universal lockable casters allow the unit to be moved between living room, office or sunroom, then locked in place during use | |
| Enclosed storage function | 3 soft-closing cabinet doors provide hidden storage for tea canisters, cups, spare utensils and small supplies, keeping surfaces clear | |
| Cable management function | Internal cable routing channels for tea appliance power cords, eliminating exposed wires on work surfaces | |
| Integrated device slot | Recessed 100mm wide slot on main table top to hold mobile phones or tablets at 75 degree viewing angle for video calls or media during tea use | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Number of shipping cartons | 2 | |
|---|---|---|
| Shipping carton dimensions | 1000 x 700 x 800 mm (main carton), 800 x 650 x 120 mm (tabletop carton) | |
| Total shipping gross weight | 110 kg | |
| Total shipping volume CBM | 0.62 | |
| Assembly time | 40 minutes | |
| 40ft HQ container loading quantity | 84 units | |
| Packaging protection level | 5-layer corrugated carton with expanded polystyrene corner protection and film wrapping | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
推荐空间 / 目标用户 / 使用方式
| Residential living room application | Suitable for open-concept living areas as a compact tea station when nested, expanding to host small gatherings of friends and family for tea service | |
|---|---|---|
| Home office/executive office application | Suitable for private executive offices as a meeting tea table, supporting both laptop work and guest tea service during business discussions | |
| Sunroom/balcony casual space application | Suitable for enclosed sunrooms and covered balconies as a leisure tea and coffee station, with lockable wheels to reposition as needed for natural light access | |
| Small apartment dining alternative | Suitable for small studio apartments as a dual-function tea and light dining table for 3people when extended, retracting to free floor space when not in use | |
| Reception lounge application | Suitable for boutique hotel lobbies and high-end club reception areas for guest welcome tea service, with premium gold trim matching luxury interior finishes | |
| Private executive office application | Suitable for private executive offices as a meeting tea table, supporting both light laptop work and guest tea service during informal business discussions | |
| Sunroom casual space application | Suitable for enclosed sunrooms and covered balconies as a leisure tea and coffee station, with lockable wheels to reposition as needed for natural light access | |
| Small studio apartment application | Suitable for small studio apartments as a dual-function tea and light dining table for 4 people when extended, retracting to free floor space when not in use |
欧洲市场准入与化学品要求
| EN 12521:2015 | Furniture for domestic use - tables - safety requirements, applicable for stability, edge radius and load capacity benchmarks | |
|---|---|---|
| EN 312:2010 | Particleboard specifications, applicable for internal panel formaldehyde emission (E1 class minimum) and structural performance | |
| EN 13722:2004 | Furniture - castors and wheels - test methods, applicable for caster rolling durability and load rating verification | |
| EN 14749:2016 | Domestic and kitchen storage units and worktops - safety requirements, applicable for cabinet door and shelf strength, stability and anti-tip performance |
美国及加拿大办公家具标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable as acceptance benchmark for cabinet panel strength, finish adhesion and dimensional stability | |
|---|---|---|
| GB/T 4897.3-2017 | Particleboard for furniture use, applicable for internal shelf substrate formaldehyde emission and structural strength requirements | |
| GB 7000.1-2015 | Luminaire general safety requirements, applicable if optional integrated lighting is specified for the tea station | |
| GB/T 17657-2013 | Test methods for wood-based furniture panels, applicable for surface wear resistance, heat resistance and stain resistance verification | |
| GB 6675.2-2014 | Toy safety - Part 2: Mechanical and physical properties, applicable for edge radius and anti-tip safety requirements for residential use furniture |
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable as acceptance benchmark for cabinet panel strength, finish adhesion and dimensional stability； 2. GB/T 4897.3-2017：Particleboard for furniture use, applicable for internal shelf substrate formaldehyde emission and structural strength requirements； 3. GB 7000.1-2015：Luminaire general safety requirements, applicable if optional integrated lighting is specified for the tea station； 4. GB/T 17657-2013：Test methods for wood-based furniture panels, applicable for surface wear resistance, heat resistance and stain resistance verification； 5. GB 6675.2-2014：Toy safety - Part 2: Mechanical and physical properties, applicable for edge radius and anti-tip safety requirements for residential use furniture； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

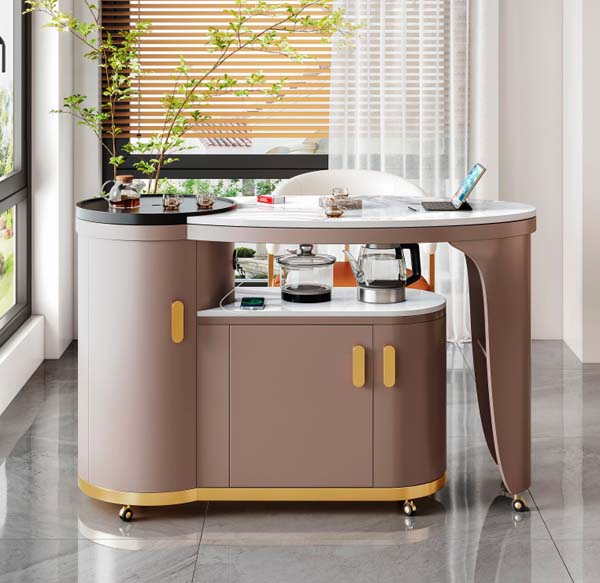

打开导出工具Extendable Mobile Tea Table with Integrated Tea Service Cabinet, Aluminum Alloy.
