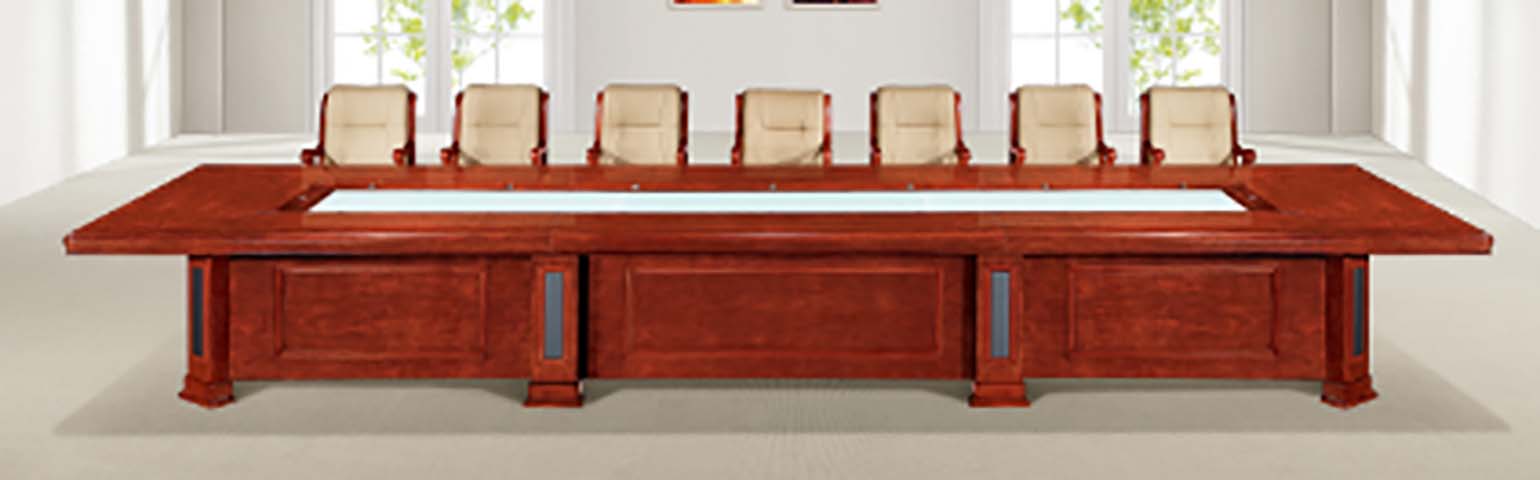

Rectangular Veneer Conference Table with Central Cable Management Channel Specifications

CONF-REC-6000-7P

代码:3G9E41V1
获取供应商报价
2026-08-20 16:18人气: 28
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CONF-REC-6000-7P

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions6000 x 2000 x 760 mm
Finished Top Thickness45 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Seating capacity14 persons
Tabletop static load capacity250 kg
Product net weight380 kg
Central channel cable capacity24 data/power cables
Surface abrasion resistance2000 cycles
Vertical panel load rating80 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Tabletop substrate25mm thick high-density particleboard
Tabletop veneer0.6mm thick red cherry wood veneer with high-gloss polyurethane finish
Central channel panel10mm thick frosted tempered glass
Base cabinet panels18mm thick medium-density fiberboard with matching veneer
Decorative support inlaysMatte dark grey PVC accent strips
Support feetSolid hardwood with stained matching finish
Cable grommetsBrushed zinc alloy flip-top covers
Edge banding2mm thick solid wood edge lipping matching veneer color
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Central cable management channelRecessed full-length channel with removable glass top for access to power and AV cables
Flip-top cable grommetsSix integrated grommets along the channel to route cables to tabletop devices
Fixed panel base constructionThree integrated cabinet sections with four corner and two intermediate support columns for rigid stability
Leveling foot adjustment15mm height adjustment on each plinth foot to compensate for uneven floors
Modular assembly designThree connected tabletop sections and matching base units for on-site installation
Scratch-resistant tabletop surfaceHigh-gloss PU coating resists scuffs from laptops, documents and meeting room equipment
Concealed storage cavityClosed panel base sections provide internal space for power strips and AV signal extenders
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Number of shipping cartons6 cartons
Largest carton dimensions2100 x 1050 x 200 mm
Total shipping gross weight450 kg
Total shipping volume1.8 CBM
On-site assembly time180 minutes
40ft HQ container loading quantity18 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 1100× 300 mm
Reference Packaged Gross Weight90 kg/set in 2 cartons
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Formal corporate boardroomsSeats full leadership teams for director meetings and contract signings, matches traditional executive decor
Government meeting facilitiesFormal wood finish aligns with official interior design standards for public sector spaces
Large enterprise conference centersIntegrated cable management supports multi-device AV presentations for training and strategy sessions
Hotel function roomsModular assembly allows setup for large business events and formal client meetings
Institutional board chambersHigh weight capacity and durable finish support frequent daily use in academic or organizational spaces
Executive suite meeting areasCoordinated design matches matching executive leather chairs for premium office environments
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables safety and strength requirements, applicable for load and stability testing
EN 13722:2004Furniture assessment of surface resistance to abrasion, applicable for veneer finish durability
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products standard for safety, durability and structural performance
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for veneer adhesion and finish quality
GB/T 4897.3-2015Particleboard for furniture use, applicable for tabletop substrate structural performance
GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable for E1 grade compliance
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for veneer adhesion and finish quality;
2. GB/T 4897.3-2015:Particleboard for furniture use, applicable for tabletop substrate structural performance;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable for E1 grade compliance;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CONF-REC-6000-7P

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CONF-REC-6000-7P

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CONF-REC-6000-7P打开导出工具

页面快速操作

发布采购询价

产品描述

The LINGKEN Rectangular Veneer Conference Table with Central Cable Management Channel, model CONF-REC-6000P, presents a traditional, formal fixed rectangular silhouette designed to anchor professional meeting spaces. Its layout balances cohesive visual polish with functional utility, featuring a smooth finished tabletop edged with solid wood lipping, accented by matte dark grey PVC inlays along its support structure, and fitted with a full-length recessed central channel capped with frosted tempered glass for a streamlined, uncluttered surface appearance. The fixed panel base integrates three cabinet sections supported by four corner and two intermediate columns, with solid hardwood support feet finished to match the tabletop veneer for a unified, refined aesthetic. Constructed for long-term commercial use, the table combines durable, matched material components: the tabletop uses a high-density particleboard substrate surfaced with 0.6mm red cherry wood veneer coated in a high-gloss polyurethane finish, with edge banding cut to match the veneer tone. Base cabinet panels are crafted from medium-density fiberboard clad in the same matching veneer, while cable access points feature brushed zinc alloy flip-top covers, and the support structure incorporates metal framing for consistent rigidity. The high-gloss tabletop coating delivers scratch resistance to withstand regular contact with laptops, documents, and meeting equipment. Core functional features center on seamless technology integration and stable, adaptable use. The recessed central cable management channel holds up to 24 data and power cables, accessible via its removable glass top, with six integrated flip-top grommets routing cables directly to tabletop devices. The enclosed base cavities offer concealed storage for power strips and AV signal extenders, while each plinth foot includes height adjustment to compensate for uneven flooring. The modular three-section design supports straightforward on-site assembly, and the table provides dedicated knee clearance for each of its 14 seating positions, with tested static load capacity to support standard meeting setups. This table is suited for a range of formal commercial and institutional settings, including corporate boardrooms for leadership meetings and contract signings, government meeting facilities aligned with traditional official interior standards, large enterprise conference centers supporting multi-device AV presentations and training sessions, hotel function rooms for large business events and client meetings, institutional board chambers handling frequent daily use, and executive suite meeting areas coordinated with premium executive seating. Procurement teams should account for the product’s six shipping cartons, total shipping gross weight and volume, on-site assembly time, and 40ft HQ container loading quantity when planning delivery and installation schedules, ensuring alignment with space dimensions and intended seating capacity for target venues.
