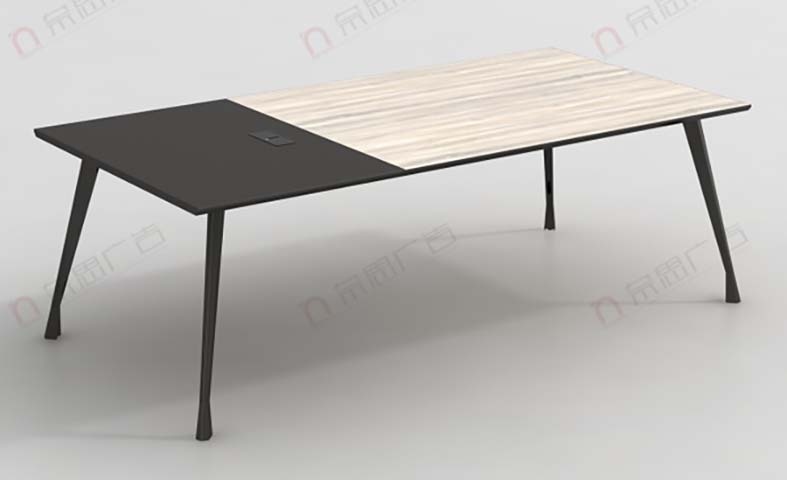

Two-Tone Rectangular Conference Table with Integrated Cable Management Specifications

CT-SPLAY-3600-LWOOD-BLK

代码:550S7EV1
获取供应商报价
2026-08-22 13:47人气: 27
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CT-SPLAY-3600-LWOOD-BLK

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions3600 x 1500 x 762 mm
Tabletop thickness86 mm
Black cable panel width800 mm
Under-table knee clearance height680 mm
Leg outer splay spread1380 mm
Center support leg position1800 mm from table end
Cable access cutout size180 x 100 mm
Leg tube wall thickness2 mm
Edge overhang from leg frame60 mm
Finished Top Thickness45 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended seating capacity10 people
Distributed tabletop static load120 kg
Net product weight114 kg
Surface scratch resistance2000 abrasion cycles
Vertical leg static load per leg150 kg
Leveling foot adjustment range10 mm
Warranty period3 years
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Light woodgrain tabletop section18mm MDF core with melamine woodgrain laminate
Black cable access panel18mm MDF core with matte black melamine finish
Splayed support legsPowder-coated matte black steel tube
Internal support framePowder-coated steel rectangular cross beams
Leveling foot padsReinforced nylon with non-slip rubber base
Cable grommet insertABS plastic with brush seal
Edge banding2mm thick PVC matching tabletop finish
Connection hardwareZinc-plated steel bolt and cam lock fittings
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Integrated cable managementRecessed panel with access cutout routes power/data cables from floor to tabletop
Uneven floor levelingAdjustable threaded foot pads on each leg compensate for uneven floor surfaces
Long span structural supportFifth center support leg eliminates tabletop sag across 3600mm length
Cable passthrough protectionBrush-sealed grommet prevents cable damage and reduces dust entry
Surface maintenanceMelamine finish supports wipe-clean sanitization without surface damage
Knockdown assemblyFlat-packed components bolt together with included hardware for on-site assembly
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 1100× 300 mm
Reference Packaged Gross Weight90 kg/set in 2 cartons
Reference Packaging Volume0.55 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate boardroomsSeats 10 attendees for formal meetings and board presentations, with integrated cable access for AV equipment
Open office meeting areasModern minimalist design fits contemporary office aesthetics for team collaboration sessions
Training roomsDurable melamine surface supports frequent use for training sessions and workshop activities
Small conference suites3600mm length fits 40sqm meeting rooms without obstructing circulation space
Hybrid meeting spacesIntegrated cable panel supports easy installation of video conferencing equipment and power outlets
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-3:2003Office work tables test methods, applicable for stability and mechanical strength
EN 13722:2004Furniture strength, durability and safety requirements for non-domestic tables
EN 15372:2016Office furniture mechanical safety requirements for contract use tables
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Performance standard for desk products, applicable for commercial conference table testing
ANSI/BIFMA e3-2019Sustainability standard for furniture products, applicable for material emission targets
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to tabletop panel structural performance
GB/T 3327-2023Test methods for furniture tables, applicable for stability and load performance validation
GB 18584-2001Indoor decoration material formaldehyde emission limit for wood-based furniture panels
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to tabletop panel structural performance;
2. GB/T 3327-2023:Test methods for furniture tables, applicable for stability and load performance validation;
3. GB 18584-2001:Indoor decoration material formaldehyde emission limit for wood-based furniture panels;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CT-SPLAY-3600-LWOOD-BLK

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CT-SPLAY-3600-LWOOD-BLK

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CT-SPLAY-3600-LWOOD-BLK打开导出工具

页面快速操作

发布采购询价

产品描述

This two-tone rectangular conference table, model CT-SPLAY-3600-LWOOD-BLK, delivers a sleek modern minimalist profile defined by clean lines and a striking contrasted finish. The long rectangular tabletop pairs a warm light woodgrain surface with a centered matte black cable access panel, balanced by splayed matte black steel legs angled outward for a light, open visual presence that avoids the bulky feel of traditional conference furniture. A fifth center support leg positioned at the midpoint of the table’s length is integrated seamlessly to preserve the streamlined silhouette while upholding structural stability, with consistent proportions that leave clear sightlines for all seated attendees. The tabletop is constructed from engineered wood cores clad in durable melamine facing, with 2mm thick PVC edge banding matched to the tabletop finish to seal against daily wear. The 86mm thick top combines light woodgrain sections built on 18mm MDF cores with the matching 18mm MDF core black access panel, supported by a framework of powder-coated steel rectangular cross beams. Splayed legs are formed from 2mm wall thickness powder-coated matte black steel tube, capped with reinforced nylon leveling feet fitted with non-slip rubber bases. Connection hardware uses zinc-plated steel bolts and cam lock fittings for secure, long-lasting joins, while the cable access cutout is fitted with an ABS plastic grommet lined with a brush seal to protect routed cables. Practical function is built into every design element. The integrated recessed cable panel routes up to 10 power or data cables from floor level to the tabletop via the 180 x 100mm cutout, with the brush-sealed grommet preventing cable fraying and reducing dust entry, and a supporting cable tray rated for 10kg of load. Adjustable threaded foot pads offer 10mm of adjustment to compensate for uneven floor surfaces, eliminating wobble during use. The fifth center support leg prevents tabletop sag across the full 3600mm span, supporting a total distributed static load of 120kg, with each individual leg rated for 150kg of vertical static load. The melamine surface resists scratches through 2000 abrasion cycles, and supports simple wipe-clean sanitization without surface damage. The table ships flat-packed in two cartons for efficient transport, with all included hardware enabling on-site assembly in 40 minutes per set. With recommended seating for 10 people, the table is suited for a range of professional meeting environments. It works effectively in corporate boardrooms for formal meetings and board presentations, providing dedicated cable access for AV equipment, and fits seamlessly into open office meeting areas to support team collaboration. Its durable surface stands up to the frequent traffic of training rooms and workshop spaces, and its 3600mm length is sized to fit 40sqm small conference suites without blocking circulation paths. The integrated cable management also makes it ideal for hybrid meeting spaces, supporting simple installation of video conferencing tools and tabletop power outlets.
