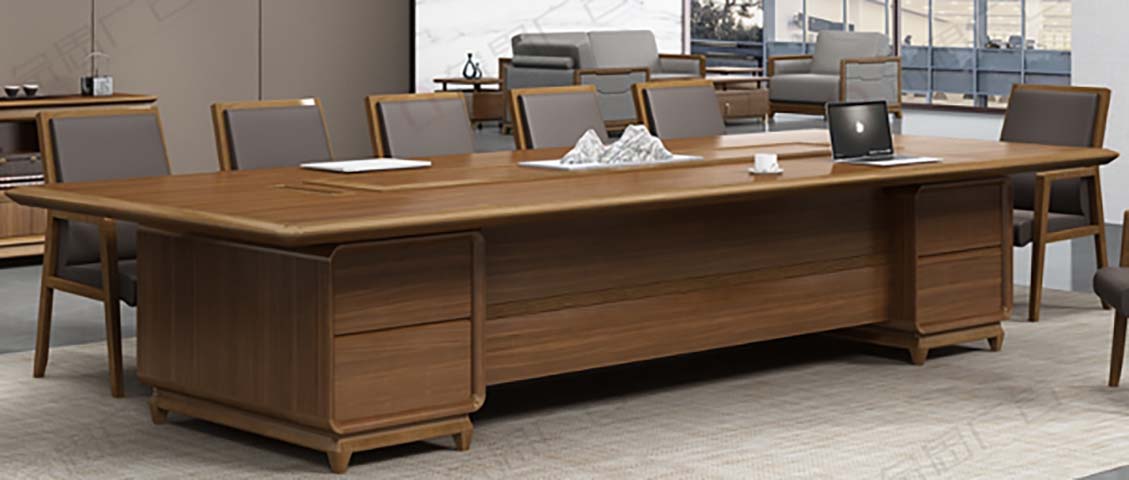

Walnut Finish Rectangular Conference Table with Dual Storage Pedestals Specifications

CT-WL3600-DP

代码:5D0YW3V1
获取供应商报价
2026-08-14 14:42人气: 49
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CT-WL3600-DP

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions3600 x 1600 x 760 mm
Tabletop thickness50 mm
Knee clearance height under table660 mm
Pedestal dimensions (each)600 x 500 x 680 mm
Recessed cable channel width150 mm
Corner radius50 mm
Pedestal foot height50 mm
Central knee space width between pedestals2400 mm
Cable grommet diameter80 mm
Drawer internal height per pedestal200 mm
Finished Top Thickness45 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Tabletop static load capacity300 kg
Recommended seating capacity8 persons
Product net weight280 kg
Finish abrasion resistance2000 cycles
Warranty period3 years
Available color options1
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Tabletop substrateE1 grade medium density fiberboard
Tabletop surface0.6mm walnut wood veneer
Surface finishMatte water-based polyurethane coating
Storage pedestalsEngineered wood with matching walnut veneer
Drawer slidesCold-rolled steel 3-section full extension slides
FeetSolid hardwood tapered feet
Cable channel liningABS plastic trough
Connection hardwareZinc-plated steel cam lock fasteners
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Cable managementRecessed central channel routes power/data cables along table length
End storage pedestalsTwo drawer units per end provide concealed document storage
Rounded edge designSoft curved perimeter edges reduce impact injury risk
Leveling adjustmentAdjustable feet under pedestals compensate for uneven floor surfaces
Modular assemblyKnock-down design allows on-site assembly and disassembly
Grommet access pointsCable pass-throughs allow device cord access from channel to tabletop
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 1100× 300 mm
Reference Packaged Gross Weight90 kg/set in 2 cartons
Reference Packaging Volume0.55 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate meeting roomsSized for 8-person formal meetings, video conferences and team discussions
Executive boardroomsPremium walnut finish matches high-end traditional office interior design schemes
Government and institutional officesSturdy construction meets heavy daily use requirements for public sector spaces
Training roomsWide tabletop accommodates training materials, laptops and presentation equipment
Hotel business centersDurable finish withstands frequent guest use and regular cleaning cycles
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-3:2003Office furniture work tables, test methods for stability and mechanical strength, recommended structural standard
EN 13986:2004Wood-based panels for construction, formaldehyde emission Class E1 compliance reference
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

北美市场选型与验收ANSI/BIFMA X5.5 办公桌及桌类产品
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 39600-2021Formaldehyde emission limit for wood-based panels, recommended E1 grade acceptance for substrate
GB 18581-2020Limit of harmful substances in solvent-based wood coatings, applicable to surface finish testing
GB/T 3324-2017General technical requirements for wooden furniture, applicable to structural stabilityAcceptance inspection
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 39600-2021:Formaldehyde emission limit for wood-based panels, recommended E1 grade acceptance for substrate;
2. GB 18581-2020:Limit of harmful substances in solvent-based wood coatings, applicable to surface finish testing;
3. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to structural stabilityAcceptance inspection;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CT-WL3600-DP

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CT-WL3600-DP

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CT-WL3600-DP打开导出工具

页面快速操作

发布采购询价

产品描述

The Walnut Finish Rectangular Conference Table with Dual Storage Pedestals, model CT-WL3600-DP, presents a polished, professional silhouette defined by clean, linear proportions and soft, rounded perimeter edges that soften its substantial scale. Two matching storage pedestals anchor the table at opposite ends, leaving an unobstructed central knee space between them to support comfortable seating placement along the table’s long sides. Its warm walnut matte finish lends a refined, timeless aesthetic that aligns with both classic and contemporary interior schemes. The table is built with a 50mm thick tabletop, constructed from an E1 grade medium density fiberboard substrate clad in 0.6mm walnut wood veneer, sealed with a matte water-based polyurethane coating that supports regular cleaning and frequent use. The end storage pedestals use matching walnut veneer over engineered wood, fitted with cold-rolled steel 3-section full extension drawer slides for smooth operation, and rest on solid hardwood tapered adjustable feet to compensate for uneven floor surfaces. A recessed central cable channel lined with ABS plastic runs the length of the table, with integrated grommet access points to route power and data cords to tabletop devices; connection points use zinc-plated steel cam lock fasteners for stable, secure assembly, following a knock-down design that supports on-site build and disassembly. Functional features include concealed drawer storage in each end pedestal for document and supply organization, soft rounded edges to reduce impact injury risk, and integrated cable management that holds up to 10 power or data cables. The table supports seating for 8 people, with a static load capacity of 300kg for the tabletop. This model suits a range of commercial spaces, including corporate meeting rooms for formal discussions and video conferences, executive boardrooms paired with high-end traditional office interiors, government and institutional offices built for heavy daily use, training rooms with space for materials and presentation equipment, and hotel business centers that see frequent guest traffic. It is also appropriate for large residential home office spaces that host regular collaborative work sessions. Procurement teams should note the product ships unbranded in two cartons per set, with a reference assembly time of 40 minutes per unit. Only one walnut finish color option is available, and the product carries a 3-year warranty. Teams should plan for appropriate on-site assembly support, and confirm entryway and space clearances align with the table’s full footprint prior to ordering, as the unit has a substantial net weight that requires careful handling during delivery and installation.
