Modern Rectangular Conference Meeting Table with Integrated Power/Data Module and Cable Management Specifications

CONF-U-WHT-3600

代码:7UNPVDV1
获取供应商报价
2026-08-31 15:59人气: 17
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CONF-U-WHT-3600

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint3660 x 1220 x 762 mm
Tabletop thickness36 mm
PVC edgeband thickness2 mm
Under-table knee clearance height700 mm
Leg frame cross-section width60 mm
Cable cutout slot length per position300 mm
Central power column dimensions150 x 300 x 700 mm
Leg footprint depth680 mm
Power socket face height above floor300 mm
Floor glide adjustment range10 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Tabletop static load capacity545 kg
Steel frame wall thickness1.5 mm
Recommended seating capacity14 persons
Tabletop surface scratch resistance2000 cycles
Formaldehyde emission limit0.05 mg/m³
TVOC emission limit0.1 mg/m³
Leveling glide load per foot250 kg
Product net weight reference165 kg
Surface stain resistance gradeGrade 4
Seating capacity per long side6 persons
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Tabletop substrateE0 grade particleboard core
Tabletop surface finishWhite matte melamine laminate
Edge banding2mm thick PVC edge trim
Leg frame materialPowder-coated silver steel tubing
Central support columnWhite powder-coated steel enclosure
Cable management slotsBrushed aluminum flip covers
Floor glidesNylon non-slip adjustable feet
Power module socketsFire-retardant ABS housing
Undertable cable trayGalvanized steel channel
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Central power/data module6 AC outlets, 2 USB-A charging ports, 2 RJ45 data ports, 1 HDMI port
Desktop cable management3 recessed cable slots with flip covers
Open leg clearanceNo modesty panel or cross-brace obstructions
Adjustable leveling feet10mm vertical adjustment per foot
Knock-down assemblyCam-lock and bolt hardware for on-site assembly
Cable routing pathSlot openings connect to central column internal channel
Surface maintenanceMatte non-reflective finish resists fingerprints and smudges
Modular top connection3-section joined top with hidden connection brackets
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate boardroom14person seating for formal executive and client meetings
Open office meeting areaTeam collaboration and project discussion space
Training room configurationFormal training sessions with presentation device connectivity
Government conference spaceFormal meeting use compliant with public procurement furniture standards
Co-working shared spaceHot-desk meeting area for multiple teams to reserve and use
Client reception meeting roomClean minimalist aesthetic for professional client-facing spaces
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements
EN 13722:2004Furniture - Assessment of surface resistance to abrasion
EN 717-1:2004Wood-based panels formaldehyde emission determination
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products safety and performance standard
ANSI/BIFMA M7.1-2011Furniture VOC emission test method
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden office furniture
GB 18580-2017Formaldehyde emission limits for wood-based panels
GB/T 3327-2016Office desk and table dimensional and stability requirements
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden office furniture;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels;
3. GB/T 3327-2016:Office desk and table dimensional and stability requirements;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CONF-U-WHT-3600

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CONF-U-WHT-3600

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CONF-U-WHT-3600打开导出工具

页面快速操作

发布采购询价

产品描述

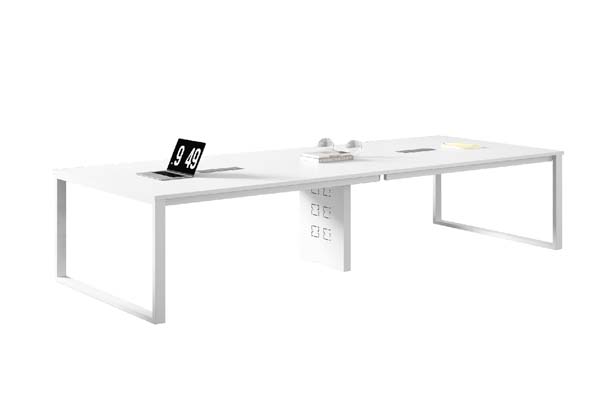

The Fanshidun CONF-U-WHT-3600 is a modern rectangular conference meeting table designed to balance clean minimalist aesthetics, functional utility, and durable construction for professional shared spaces. Its visual profile features a crisp white matte melamine tabletop paired with a silver powder-coated sled-style open leg frame, with no modesty panel or cross-brace to obstruct leg room, creating an open, uncluttered look that aligns with contemporary office design. The table measures 3660 x 1220 x 762 mm overall, with a 36 mm thick tabletop finished with 2 mm PVC edge banding, 700 mm of under-table knee clearance, and a central white powder-coated steel support column that anchors the integrated utility features without disrupting the sleek surface layout. Constructed with an E0 grade particleboard core, the tabletop meets strict low-emission standards with formaldehyde release limited to 0.05 mg/m³ and TVOC release limited to 0.1 mg/m³, while its scratch-resistant surface withstands 2000 abrasion cycles and resists fingerprints and smudges for easy upkeep. The 1.5 mm thick steel leg frame supports a 545 kg static tabletop load, with 60 mm wide tubing, 680 mm deep leg footprints, and nylon non-slip adjustable feet that offer 10 mm of vertical adjustment per foot, each rated to hold 250 kg, to stabilize the unit on uneven floors. Core practical functions center on streamlined connectivity and cable organization. The central column houses an integrated power/data module with 6 AC outlets, 2 USB-A charging ports, 2 RJ45 data ports, and 1 HDMI port, with fire-retardant ABS housing for safety. Three recessed desktop cable slots, each 300 mm long and fitted with brushed aluminum flip covers, route cords through the central column’s internal channel to a galvanized steel under-table cable tray, eliminating surface cord clutter. The unit ships knock-down for on-site assembly via cam-lock and bolt hardware, with a reference assembly time of 40 minutes, packed across 2 cartons with a total packaged gross weight of 120 kg and 0.8 m³ packaging volume per set, and accommodates 14 people at full capacity. This table fits a wide range of formal and collaborative spaces, including corporate boardrooms for executive and client meetings, open office team collaboration zones, training rooms with presentation connectivity needs, government conference spaces aligned with public procurement standards, co-working shared meeting areas, and client reception rooms where a polished, professional aesthetic is required. When planning procurement, teams should account for on-site assembly requirements, confirm access for delivery of the two packaged units, and note that the open leg design offers unobstructed movement for seated users across all positions around the table.
