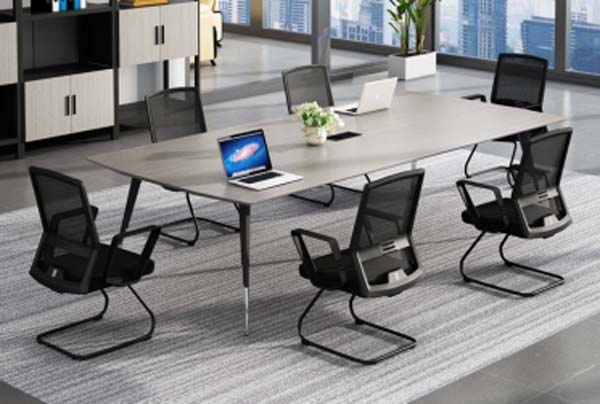

Light Grey Rectangular 8-Person Conference Table with Metal Splayed Legs Specifications

CT-2400GRY-ML-CG01

代码:AQT6UVV1
获取供应商报价
2026-08-28 10:45人气: 20
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CT-2400GRY-ML-CG01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions2400 x 1200 x 750 mm
Tabletop thickness25 mm
Leg outer diameter50 mm
Chrome foot section length120 mm
Under-table knee clearance height710 mm
Under-table knee clearance depth (long side)450 mm
Cable grommet opening size200 x 100 mm
Edge overhang from leg frame80 mm
Leg splay angle from vertical12 degrees
Leveling foot height adjustment range10 mm
Long-side seating space per person600 mm
Finished Top Thickness45 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Overall product net weight36 kg
Evenly distributed tabletop static load capacity250 kg
Recommended maximum seating capacity8 people
Laminate surface abrasion resistance2000 cycles
Leg frame static load rating per leg80 kg
Recommended warranty period for commercial use3 years
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Tabletop core material25mm particleboard core
Tabletop surface finishMatte light grey melamine laminate
Tabletop edge treatment2mm PVC impact-resistant edge banding
Upper leg structurePowder-coated dark grey steel tubing
Lower foot sectionChrome-plated steel
Support apron frame1.2mm thick steel cross rails
Leveling feetNylon non-slip adjustable glides
Cable grommet insertABS plastic rectangular cover
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Centered cable management grommetRectangular pass-through for routing laptop and AV cables
Floor leveling adjustmentRotating feet adjust 10mm to compensate for uneven flooring
Multi-sided perimeter accessUnobstructed leg space on all four sides for seating
Stain-resistant work surfaceMelamine finish wipes clean with damp cloth for quick maintenance
Knockdown assembly designBolted leg-to-frame connection for on-site assembly
Anti-scratch surface protectionHard laminate layer resists scuffs from laptops and meeting materials
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 1100× 300 mm
Reference Packaged Gross Weight90 kg/set in 2 cartons
Reference Packaging Volume0.55 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate open-plan meeting areasSeats 8 attendees for team discussions and client presentations
Co-working space shared boardroomsDurable laminate surface withstands frequent multi-user daily use
Small business training roomsStable frame supports laptops, training materials and presentation devices
Executive team conference spacesNeutral grey finish complements modern commercial office design palettes
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-2:2002+A1:2016Applicable for office work table safety and dimensional requirements
EN 13150:2005Applicable for work surface strength and durability testing
EN 717-1:2004Applicable for formaldehyde emission testing of wood-based panels
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Applicable for desk products structural performance testing
ANSI/BIFMA X7.1-2022Applicable for furniture formaldehyde and VOC emission limits
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017Applicable for general technical requirements of wooden office furniture
GB/T 3327-2016Applicable for size and stability requirements of office tables
GB 18584-2001Applicable for formaldehyde emission limits for wood furniture
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:Applicable for general technical requirements of wooden office furniture;
2. GB/T 3327-2016:Applicable for size and stability requirements of office tables;
3. GB 18584-2001:Applicable for formaldehyde emission limits for wood furniture;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CT-2400GRY-ML-CG01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CT-2400GRY-ML-CG01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CT-2400GRY-ML-CG01打开导出工具

页面快速操作

发布采购询价

产品描述

The light grey rectangular 8-person conference table, model CT-2400GRY-ML-CG01, delivers a streamlined modern commercial aesthetic suited to professional office environments. Its silhouette pairs a broad, flat rectangular tabletop with splayed metal legs positioned to leave unobstructed perimeter access on all four sides, creating open, approachable sightlines for seated attendees. The matte light grey tabletop sits atop a dark grey four-leg metal frame, with polished chrome foot sections creating a subtle tonal contrast that aligns with contemporary office design palettes. The tabletop measures 2400 x 1200 x 750 mm overall, with 25 mm thickness, a 25 mm particleboard core clad in matte light grey melamine laminate, and sealed with 2 mm impact-resistant PVC edge banding. Legs are constructed from 50 mm outer diameter powder-coated dark grey steel tubing, with 120 mm long chrome-plated lower foot sections, supported by 1.2 mm thick steel cross rails, and finished with nylon non-slip adjustable glides that rotate to adjust 10 mm, compensating for uneven flooring. The centered rectangular ABS plastic cable grommet, sized 200 x 100 mm, routes up to 10 power or data cables to keep laptop and AV connections tidy. The melamine surface resists scuffs from frequent contact with devices and meeting materials, wipes clean with a damp cloth for fast maintenance, and holds a 250 kg evenly distributed static load, with each leg rated for 80 kg static load. The 710 mm under-table knee clearance and 450 mm long-side clearance depth comfortably accommodate seating for 8 people, with 80 mm edge overhang from the leg frame to support relaxed positioning. This table fits corporate open-plan meeting areas for team discussions and client presentations, co-working shared boardrooms built for high-frequency multi-user use, small business training rooms supporting laptops and presentation gear, and executive conference spaces seeking neutral, versatile styling. Procurement teams should note the knockdown bolted assembly design, with a 40 minute per set assembly time, shipped as 1 set across 2 cartons with a 90 kg total packaged weight and 0.55 cubic meter packaging volume. It carries a 3 year recommended commercial warranty, and the 36 kg net weight unit requires clear delivery access for carton transport to installation sites.
